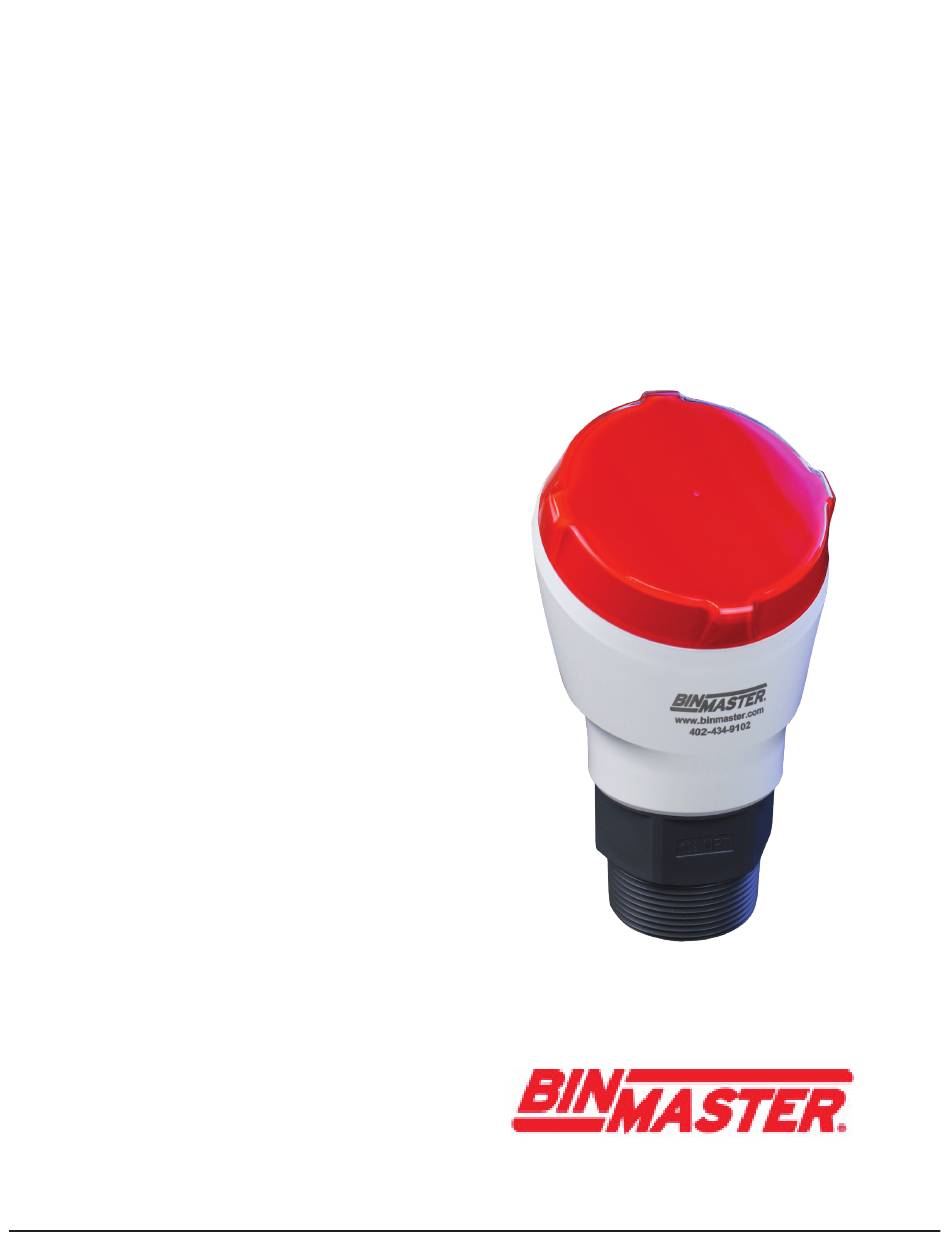

- Page 1 Operating Instructions Radar sensor for continuous level measurement CNCR-210 Two-wire 4- 20 mA Document ID: 925-0395 Rev B CNCR-210 • Two-wire 4-20...
-
Page 2: Table Of Contents
Diagnostics and servicing ....................15 8.1 Maintenance ........................15 8.2 Status messages ......................15 Removal ..........................17 Certificates and approvals ....................17 10.1 Radio licenses......................17 Supplement .......................... 17 11.1 Technical data ......................17 11.2 Dimensions........................19 CNCR-210 • Two-wire 4-20... -
Page 3: About This Document
Required personal protective equipment must always be worn when working on or with the device. 2.2 Appropriate use CNCR-210 is a sensor for continuous level measurement. Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions. CNCR-210 • Two-wire 4-20... -
Page 4: Warning About Incorrect Use
Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. 3 Product Description 3.1 Configuration Fig. 1: Components of CNCR-210 Radar antenna 2 Process fitting Process seal Electronics housing Ventilation/pressure compensation... -
Page 5: Principle Of Operation
3.2 Principle of operation CNCR-210 is a radar sensor for continuous level measurement. It is suitable for liquids and sol- ids in practically all industries. The instrument emits a continuous, frequency-modulated radar signal from its antenna. The emit- ted signal is reflected by the material and received by the antenna as an echo with a modified frequency. The frequency change is proportional to the distance to the material. -
Page 6: Mounting
Fig. 3: Polarization position Cable / conduit entry Note: When the housing is rotated, the direction of polarization changes and hence the influence of the false echo on the measured value. Please keep this in mind when mounting or making changes later. CNCR-210 • Two-wire 4-20... - Page 7 Fig. 4: Mounting the radar sensor on round vessel tops In vessels with cone bottoms, the sensor can be mounted in the center of the vessel to mea- sure material down to the outlet. Fig. 5: Mounting the radar sensor with conical bottom CNCR-210 • Two-wire 4-20...
- Page 8 For socket or stand pipe mount, the pipe should be as short as possible and its bottom end rounded to reduce false reflections from the end of the pipe. When using a threaded coupling, the antenna end should protrude at least 5 mm (0.2 in) out of the coupling. CNCR-210 • Two-wire 4-20...
-
Page 9: Connecting To Power Supply
≤ 300 mm ≤ 11.8 in 100 mm 4” ≤ 400 mm ≤ 15.8 in 150 mm 6” ≤ 600 mm ≤ 23.6 in 5 Connecting to power supply 5.1 Preparing the connection • Electrical connection should be completed by trained, qualified personnel authorized by the plant operator. • If overvoltage surges are expected, overvoltage arresters should be installed. CNCR-210 • Two-wire 4-20... -
Page 10: Connecting
If electromagnetic interference is expected which is above the test values of EN 61326-1 for industrial areas, shielded cable should be used. Note: If the temperatures are too high, the cable insulation can be damaged. 5.2 Connecting Fig. 9: Connection CNCR-210 • Two-wire 4-20... -
Page 11: Wiring Plan
• Operating system: iOS 8 or newer • Operating system: Android 5.1 or newer • Bluetooth 4.0 LE or newer Download the Wireless Device Configurator app from the “Apple App Store” or “Google Play Store” to your smartphone or tablet. To enable the Bluetooth software enter the BinMaster company ID code BMYQXZ. CNCR-210 • Two-wire 4-20... -
Page 12: Connecting
The message disappears when the connection is restored. Parameter adjustment of the device is only possible if the parameter protection is deactivated, which is default. Parameter protection can be activated later if desired. CNCR-210 • Two-wire 4-20... -
Page 13: Parameter Adjustment
Close the app to terminate connection. Note If the CNCR fails to connect to the Wireless Device Configuration App (WDCA) via Bluetooth, close the (WDCA), power cycle the CNCR and attempt to reconnect. If further action is required, power cycle the Bluetooth on your device, and repeat the steps above. CNCR-210 • Two-wire 4-20... -
Page 14: Menu Overview
False signal suppression False signal suppression Sounded distance to the material Reset Delivery status, basic settings Menu item Selection Default settings Status Sensor status Measured value status Status output Status additional measured values Echo curve Indication of echo curve CNCR-210 • Two-wire 4-20... -
Page 15: Diagnostics And Servicing
Send instrument in for repair F040 Limit value exceeded in signal Restart instrument Error in the electronics processing Send instrument in for repair Hardware error F080 General software error Restart instrument General software error CNCR-210 • Two-wire 4-20... - Page 16 Maintenance Code Text message Cause Rectification M500 Error in the delivery status M501 Error in the delivery status M504 Hardware defect Check connections Error at a device interface Replace the electronics Send instrument in for repair CNCR-210 • Two-wire 4-20...
-
Page 17: Removal
The Bluetooth radio module in the device has been tested and approved according to the current edition of the applicable country-specific norms or standards. 11 Supplement 11.1 Technical data Note for approved instruments The technical data in the respective safety instructions which are included are valid for approved instruments (e.g. with Ex approval). These data can differ from the data listed herein, for example regarding the process conditions or the voltage supply. CNCR-210 • Two-wire 4-20... - Page 18 The antenna face is also the reference plane for the measurement. Max. measuring range4) 8 m (26.25 ft) Recommended measuring range5) up to 5 m (16.4 ft) Fig. 13: Data of the input variable 1 Reference plane 2 Measured variable, max. measuring range CNCR-210 • Two-wire 4-20...
- Page 19 – at 4 mA 12 to 35 V DC – at 20 mA 9 to 35 V DC Reverse voltage protection Integrated Electrical protective measures Altitude above sea level 5000 m (16404 ft) Protection class Pollution degree CNCR-210 • Two-wire 4-20...
-
Page 20: Dimensions
11.2 Dimensions CNCR-210 Fig. 14: Dimensions CNCR-210 Thread G1½ Thread 1½ NPT Thread R1½ CNCR-210 • Two-wire 4-20... - Page 21 Subject to change without prior notice. BinMaster Phone: 402-434-9102 7201 N 98th St. Fax: 402-434-9133 Lincoln NE 68507 E-mail: info@binmaster.com www.binmaster.com CNCR-210 • Two-wire 4-20...
