Summary of Contents for Mountup MU5004

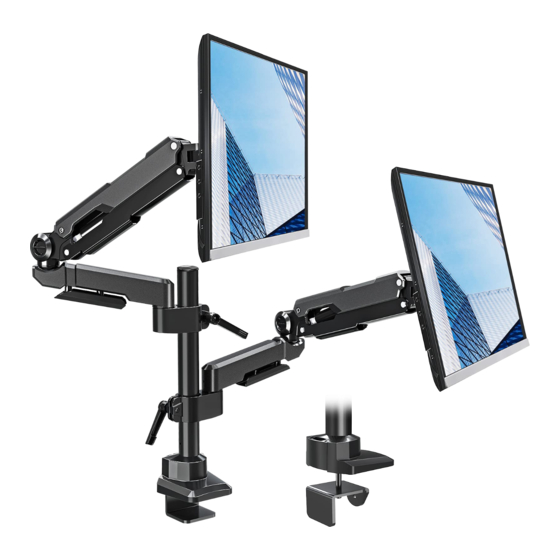

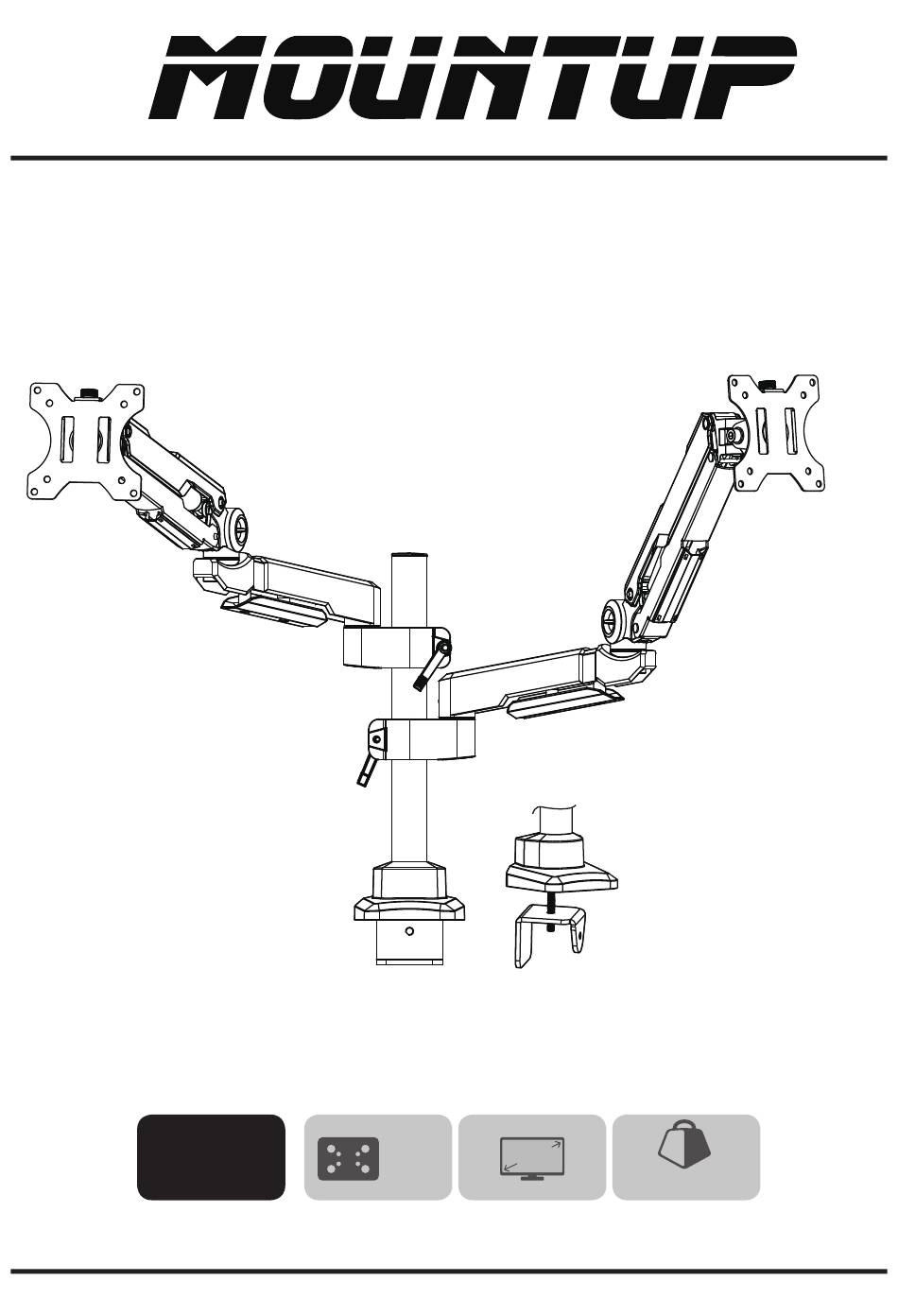

- Page 1 Premium Height Adjustable Dual Monitor Mount Instruction Manual 75x75 MU5004 32" 100x100 (1~10kg) each arm V2.0 (2.2~22lbs) each arm If you have any questions , please contact us.
-
Page 2: Package Contents
WARNING! If you do not understand these instructions or have doubts about the safety, assembly or use of this product, please contact us. Before assembly, verify all parts are included and undamaged. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly speci ed in this manual. Do not exceed weight capacity. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1: Apply Pads to the Bottom of Base Checklist Apply pads (I) to the C (x1) Assembled Base Assembled Base (C) I (x4) bottom to avoid desk scratches. STEP 2: Clamp Installation OR Grommet Base Installation OPTION A: Clamp Installation Mount the Assembled Base (C) on the desktop by tightening the Short Bolt (C3) with 6mm Allen Key (L) provided. - Page 4 STEP 2: (Continued) OPTION B: Grommet Base Installation Remove the Bottom Plate (C1), Short Bolt (C3) and the Base (C2) from Assembled Base (C). Insert Long Bolt (G) through the Base (C2), grommet hole in desktop and Bottom Plate (C1). Secure the Assembled Base (C) on the desktop by tightening the Long Bolt (G) with 6mm Allen Key (L).
-
Page 5: Step 3: Arm Installation
STEP 3: Arm Installation Turn clockwise to Install the Pole (F) on the Base (C). Tighten the set screw on the Pole (F) for further reinforcement. Checklist C (x1) Assembled Base F (x1) Pole K (x1) 3mm Allen Key DO NOT tighten the screw excessively or it might be stripped. - Page 6 STEP 3: (Continued) Insert one Lower Arm (B) and one Upper Arm (A) on each side of the Arm Base (D). Tighten the set screw on the each arm for further reinforcement. Checklist A (x2) Upper Arm DO NOT tighten the screw excessively or B (x2) Lower Arm it might be stripped.
- Page 7 STEP 4: Attach Monitor OPTION A: Flat Back Monitor Attach the VESA plate (E) to back of monitor and secure it with screws (M-A) or (M-C) and washers Checklist (M-E) using Screwdriver. Do not tighten the screws excessively or it might damage your monitor. E (x2) VESA Plate M-A (x8)
- Page 8 STEP 5: Hang Monitor Slide the monitor onto the head of swivel arm, install the security bolt (H). Make sure the security bolt is installed before you rotate the monitor. Checklist J (x2) security bolt Important Notice: The gas spring is pre-set to minimum tension. Once the monitor is hanged on, hold the monitor with both hands and DO NOT let go suddenly or immediately.
-
Page 9: Step 6: Adjust Tension
STEP 6: Adjust Tension For proper functioning of this mount, depending on di erent weight of monitor you might need to adjust tension in (A) using 6 mm allen key (L). upper arm Checklist L (x1) 6mm Allen Key CAUTION Note1: Be sure to keep the arm in horizontal position during adjustment. -
Page 10: Step 7: Cable Management
STEP 7: Cable Management STEP 5: (Continued) Let the cables get through the base, then press the cables close to the bottom of the arms. Attach the Plastic Cover to keep it clean and tidy. Checklist H (x2) Plastic Cover K(x1) 3mm Allen Key L (x1) -
Page 11: Product Dimensions
Product Dimensions 180° 270° 360° 1.8" 8.7"-11.7" 1.9“ 7.1"... - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
