MAINTENANCE

To keep your machine operating smoothly, it is essential that all bear-
ings be lubricated. Oiling moving parts is particularly important where
machine comes in contact with sand, grit and other abrasive material.
CABLE MAINTENENCE
To get maximum service from your cables, be sure they are clean and
well oiled. This not only provides running lubrication but greatly ex-
tends the life of the cables as well. Some users periodically pour oil
directly into the drum. Then, as the drum turns,
the cables get complete lubrication. Our SNAKE
OIL is ideally suited for this purpose, since it not
only lubricates the cables, it deodorizes them as
well.
FEED MAINTENANCE
Keep feed free of excessive soil and grit. It is
recommended that the feed be flushed with fresh
water followed by a light oiling of the moving parts. No disassembly is
normally required. Failure to feed can usually be traced to the follow-
ing possibilities:
DIRT ACCUMULATION
Over time, dirt can harden enough to stop roller rotation. Flushing with
water followed by liberal oiling can usually restore function. If disas-
sembly is required, proceed as follows:
1. Remove the feed pressure knob, cover screws, top cover, ball
bearing and ball bearing holder. Note the positioning of these
parts to ease re-assembly. Remove the swing pin from the carri-
er. The top roller assembly can now be removed.
2. Remove the end caps and thrust washers from the bottom hous-
ing cylinders. Remove swing pins from carriers. The bottom roller
assemblies can now be removed.
DAMAGED ROLLER
Excessive use may wear a roller to the point of failure. It is recom-
mended that all three rollers be replaced at the same time (Cat # PO-
703). The replacement roller is an assembly consisting of one Feed
Roller, two Feed Roller Bearings, and two Bearing Spacers.

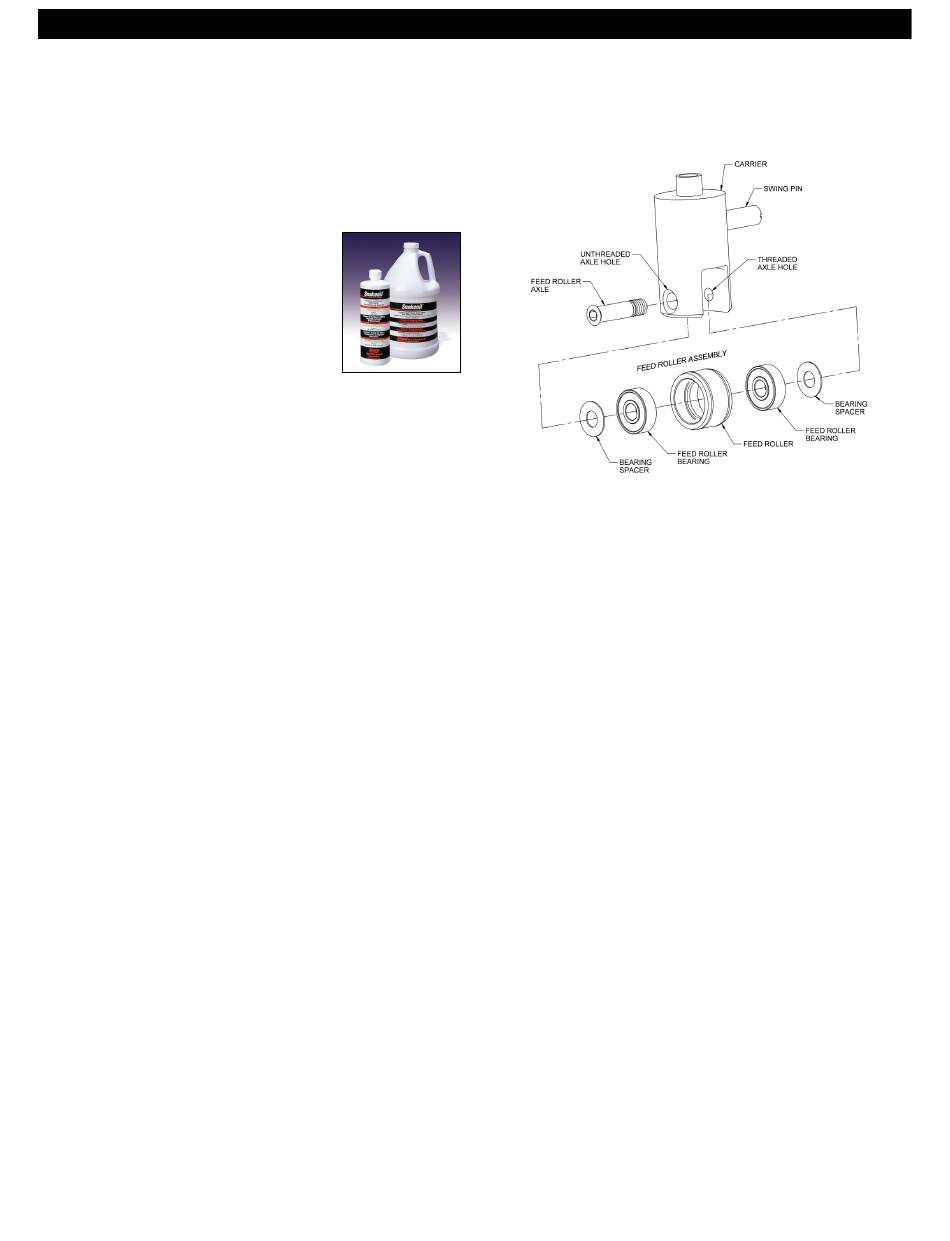

Note: The Bearing Spacers must be installed between the Carrier
and each Feed Roller Bearing (as illustrated) in order to ensure
proper operation and to obtain maximum Feed Roller life.
To Replace the Feed Roller Assembly:
1. Remove the Feed Roller Assembly by unscrewing and removing
the Feed Roller Axle.
2. For convenience, the components are assembled and wired
together at the factory. Before attempting to install the assembly,
hold the assembly together and remove the wire.
3. While still holding the Feed Roller Assembly together, insert it
into the slot opening of the Carrier.
4. In order to help align the Spacers and Bearings, insert a pencil
point or similar object through the un-threaded end of the Axle
hole in the Carrier. After removing the pencil point, continue to
maintain the alignment of the components.
5. The Feed Roller Axle should then be inserted through the same
un-threaded Axle hole and should continue to be guided through
the Spacers and Bearings to the threaded Axle hole on the other
side of the Carrier.
6. Securely tighten the Axle to the Carrier with a 3/16" allen wrench.
TANGLED CABLE
If a cable loops over itself in the drum, it will not feed properly. Re-
move and reload the cable to restore function. If the cable kinks, it is
evidence of abuse and results from the use of too much pressure or
use of the wrong size cable for the line. Do not force the cable — let
the cutter do the work.
