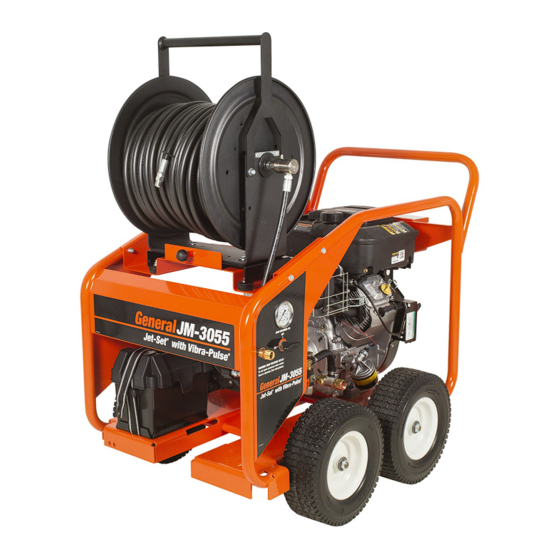

Your JM-3055 Jet-Set gas-powered
water jet is designed to give you years of
trouble-free, profitable service. However,
no machine is better than its operator.
Read, understand and follow all safety
warnings and instructions provided with
the product. Failure to follow the warn-
ings and instructions may result in elec-
tric shock and/or serious injury. Save all
warnings and instructions for future refer-
ence.
SAVE THESE INSTRUCTIONS!
JM-3055
Operating Instructions
™
Gas Jet
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for General Pipe Cleaners JM-3055
Summary of Contents for General Pipe Cleaners JM-3055
- Page 1 ™ JM-3055 Gas Jet Operating Instructions Your JM-3055 Jet-Set gas-powered water jet is designed to give you years of trouble-free, profitable service. However, no machine is better than its operator. Read, understand and follow all safety warnings and instructions provided with the product.
-
Page 2: Safety Symbols
JM-3055. Do not direct discharge stream at peo- SAFETY SYMBOLS ple. This equipment can produce a high... -
Page 3: General Safety Rules
Jet-Set JM-3055™ GENERAL SAFETY RULES JET SAFETY 1. Do not operate jet above rated pressure or above 140 degrees (rated water temperature). Operating jet above rate specifica- WARNING tions risks damage to the pump and related components, and will Read and understand all instructions. Failure to follow all in- void the warranty. -
Page 4: Jet Nozzles
Jet-Set JM-3055™ REMOVABLE HOSE REEL 3. Check nozzles before and after each use for clogged holes which can cause pressure to increase to dangerously high levels and This Jet features a removable hose reel. It easily detaches in sec- damage the pump. A clogged hole can be cleared by simply using onds for remote operation. -
Page 5: Operation
Jet-Set JM-3055™ Connect one end of a water supply hose (not included) to the NOZZLE SELECTION GUIDE water supply and the other end to the water inlet of the jet ma- chine. Water supply must be a minimum of 20 psi and not to HOSE SIZE 1/8”... -
Page 6: Special Applications
Jet-Set JM-3055™ OPERATION CONTINUED SPECIAL APPLICATIONS 9. Guide the jet hose into the drain line. Do not feed the hose contin- ICE BLOCKAGES uously, but rather, move the hose forward and back to allow the High pressure water can be used to clear an ice blockage. A 3000 psi pressure to break up the stoppage and the water flow to flush it gas jet can clear a 4”... -
Page 7: Maintenance
Jet-Set JM-3055™ The Spray Wand can be used to clean your truck or other applica- ACCESSORIES tions. Caution: Never clean the machine with its own spray. Follow HANDY-REEL WITH FOOT PEDAL the same procedures listed previously for safety, set-up, operation, - Cat # HM-200-W (OPTIONAL) and maintenance. -
Page 8: Troubleshooting Guide
Jet-Set JM-3055™ TROUBLE SHOOTING GUIDE Problem Probable Cause Solution Low pressure. Worn, clogged, or oversized nozzle. Clean or replace worn nozzle. Check nozzle size. Clogged water inlet strainer. Clean or replace strainers. Inadequate water supply. Make certain water supply valve is on fully. Make certain water supply hose is at least 3/4”... - Page 9 Jet-Set JM-3055™ TROUBLE SHOOTING GUIDE continued Problem Probable Cause Solution Washer fails to draw detergent. Detergent metering valve closed, or Open detergent metering valve, following procedure in operating valve clogged or defective. instructions. Back pressure in hose (when using Contact dealer for proper injector size when adding lengths of additional lengths of pressure hose).
- Page 10 Jet-Set JM-3055™ JM-3055 PARTS LIST ITEM TITLE PART # ITEM TITLE PART # DECAL - JM-3055 FRONT PANEL (SEE 71-0003) DECAL - RISK OF BURNS (SEE 71-0003) LOCKNUT 30-0157 DECAL- CAUTION: GASOLINE ONLY (SEE 71-0003) WASHER 28-0003 ENGINE ASSEMBLY - VANGUARD...
- Page 11 Jet-Set JM-3055™...
- Page 12 Jet-Set JM-3055™ JM-3055 PUMP/GEARBOX PARTS LIST ITEM DESCRIPTION PART # PUMP JM3-0202 GEARBOX JM47-0032 VALVE CAP JM46-1427...
- Page 13 Jet-Set JM-3055™ JM-3055 PUMP ASSEMBLY PARTS LIST (Drawing on next page) ITEM DESCRIPTION PART # ITEM DESCRIPTION PART # VALVE CAP JM46-0889 27 CRANKSHAFT JM46-0050 O-RING JM25-0012 28 RETAINING RING JM46-0103 VALVE ASSEMBLY JM70-0009 29 CONNECTING ROD PIN JM43-0032 MANIFOLD...
- Page 14 Jet-Set JM-3055™...
- Page 15 Jet-Set JM-3055™ JM-3055 GEARBOX PARTS LIST ITEM DESCRIPTION PART # ITEM DESCRIPTION PART # O-RING JM25-0158 14 SPACER JM46-1474 PUMP FLANGE JM46-1472 15 WASHER JM28-0139 SEALING WASHER JM28-0137 16 LOCKWASHER JM29-0155 SCREW JM27-8434 17 SCREW JM27-0119 O-RING JM25-0650 18 OIL PLUG VENTED...
- Page 16 Jet-Set JM-3055™ JM-3055 HOSE REEL PARTS LIST ITEM DESCRIPTION PART # ITEM DESCRIPTION PART # LOCKNUT JM30-0157 WASHER JM28-0002 WASHER JM28-0003 10 LOCKNUT JM30-0155 3/8" SWIVEL JM24-0362 11 HOSE REEL STAND JM20-1221A01 HOSE JM15-0311 12 BOLT JM27-0066 ELBOW JM24-0105 13 HOSE REEL...
