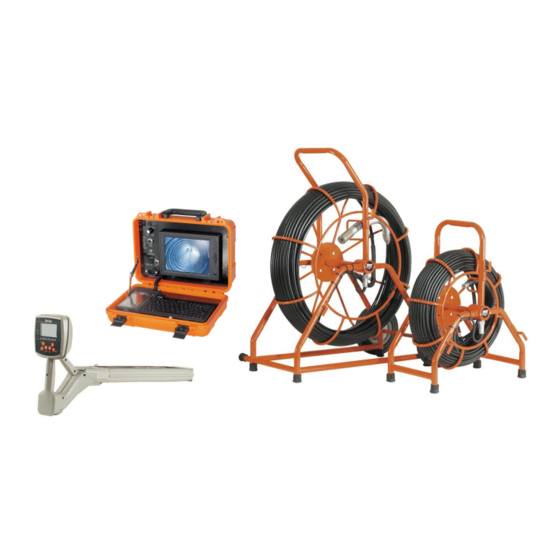

Video Pipe Inspection/Location System
Your Gen-Eye Video Pipe Inspection/
Location System is designed to give you
years of trouble-free, profitable service.
However, no machine is better than its op-
erator.
Read, understand and follow all safety
warnings and instructions provided with
the product. Failure to follow the warnings
and instructions may result in electric
shock and/or serious injury. Save all warn-
ings and instructions for future reference.
SAVE THESE INSTRUCTIONS!
Gen-Eye SD
Operating Instructions
™
Advertisement
Table of Contents
Related Manuals for General Pipe Cleaners Gen-Eye SD
Summary of Contents for General Pipe Cleaners Gen-Eye SD
- Page 1 ™ Gen-Eye SD Video Pipe Inspection/Location System Operating Instructions Your Gen-Eye Video Pipe Inspection/ Location System is designed to give you years of trouble-free, profitable service. However, no machine is better than its op- erator. Read, understand and follow all safety warnings and instructions provided with the product.
-
Page 2: General Safety Rules
Gen-Eye SD™ Video Pipe Inspection/Location System GENERAL SAFETY RULES Electric shock resulting death can occur if you plug this machine into an improp- erly wired outlet. If the ground wire is electrified, you can be electrocuted by just touching the machine, even when the... -
Page 3: Work Area
Gen-Eye SD™ Video Pipe Inspection/Location System 3. Remove adjusting keys or switches before turn- GENERAL SAFETY RULES ing the tool on. A wrench or key that is left attached Work Area to a rotating part of the tool may result in personal injury. -
Page 4: Specific Safety Rules
Gen-Eye SD™ Video Pipe Inspection/Location System Service FEATURES 1. Tool service must be performed only by qualified repair personnel. Service or maintenance per- Voice Over Microphone LED Dimmer Control Camera Connection & Switch formed by unqualified repair personnel could result in injury. - Page 5 On arrival to the job site and after checking for a properly era has first been cleaned and taken to a clean area grounded receptacle (see ―Gen-Eye SD Command Mod- for disassembly. Take extra precaution to avoid dirt ule‖), set the SD Command Module in an easily viewable getting into the camera body and any mating compo- position where it will not interfere with the inspection.
-
Page 6: Setting Time & Date
Gen-Eye SD™ Video Pipe Inspection/Location System KEYBOARD/COUNTER OPERATING SETTING TIME/DATE Hold [CTRL] and press D. ―YYMMDDHHMMSSam‖ ap- INSTRUCTIONS pears on the screen. Type in the correct time and date in this order: year, month, day, hour, minutes, seconds, am/ FUNCTION pm (a for AM and p for PM). -
Page 7: Operation
Gen-Eye SD™ Video Pipe Inspection/Location System OPERATION RECORDING THE INSPECTION 1. Make sure you have established live image on the monitor prior to recording. 2. Insert an SD card into the SD card reader. 1. Slowly push the camera into the pipe. Make sure the spring does not kink or double back on itself. -
Page 8: Depth Measurement
Gen-Eye SD™ Video Pipe Inspection/Location System CAMERA LOCATION Locator Peak Signal 1. Turn the Gen-Eye SD power switch to ON. 2. Switch the Locator ON and check that the battery Ghost Ghost indicator shows at least one bar. Replace batteries... -
Page 9: Maintenance
LIGHT HEAD REPLACEMENT and spring assembly by removing the 3 screws (4-40 The light heads for the Gen-Eye SD cameras use LED x ½ SSTL) that are countersunk into the cone- lighting and cannot be replaced by the operator. These shaped aluminum coupler at the end of the push ca- lights use very little power. -
Page 10: Camera Focus
Gen-Eye SD™ Video Pipe Inspection/Location System CAMERA FOCUS Cable Reel Input Socket, 10 Pin All Gen-Eye SD cameras are pre-focused at the factory This is used to connect the interface cord from the cable from approximately 3‖ to infinity and should not require reel to the SD Command Module. - Page 11 Gen-Eye SD™ Video Pipe Inspection/Location System TROUBLESHOOTING Bad or Grainy Picture COMMAND MODULE Check the camera lens for dirt, grime, scratches or other foreign matter. No Picture AND No Lights: Check the Light Head to see if it is not supplying suffi- Check to see if the Main Power switch is ON.
- Page 12 Gen-Eye SD™ Video Pipe Inspection/Location System GENERAL'S LIMITED WARRANTY General’s Gen-Eye SD video pipe inspection/location system carries a two-year warranty against defect in materials except as noted below. Should any part break or fail to work properly in the two years following purchase, it will be repaired or replaced at our discretion at no charge.
