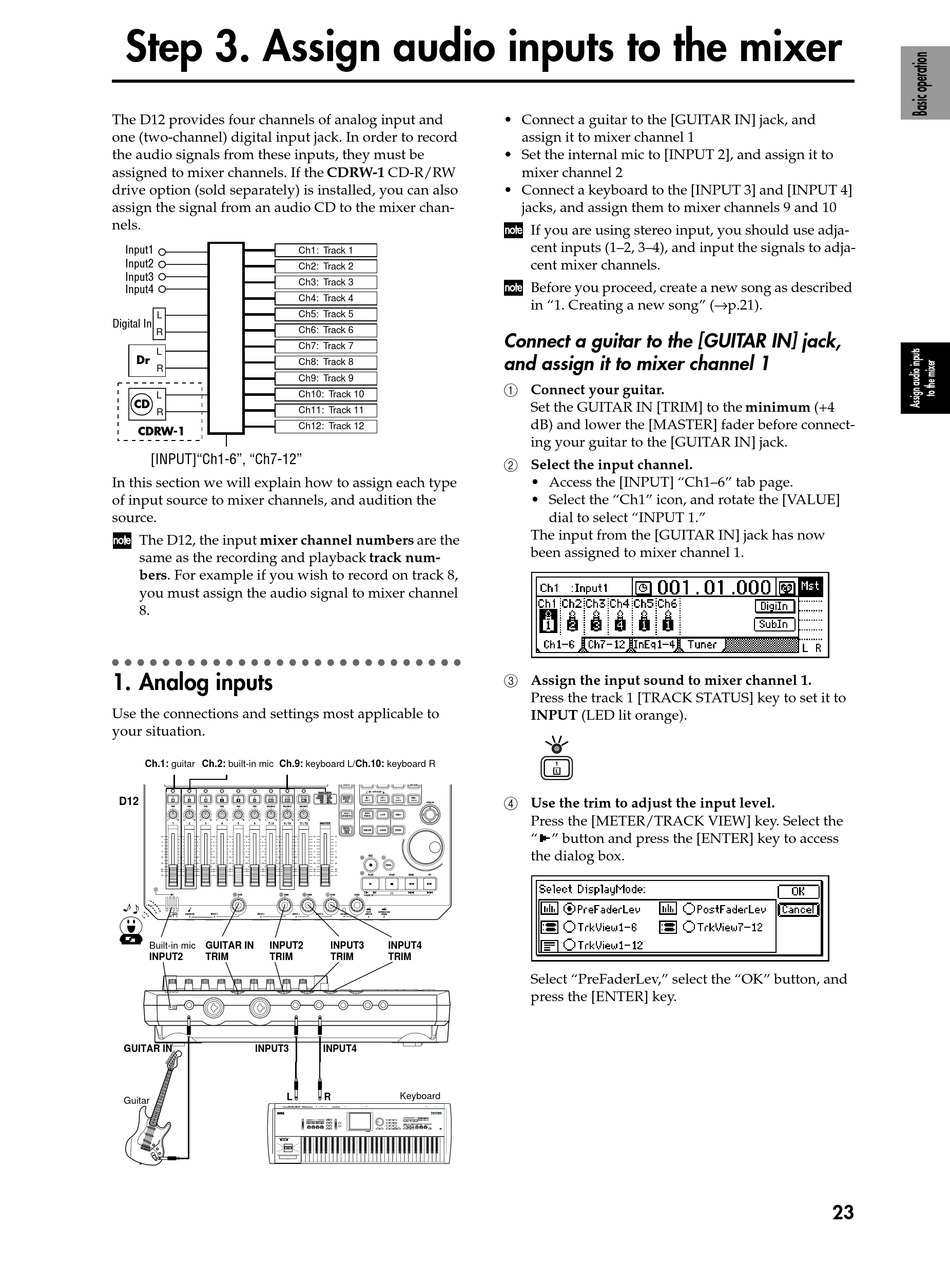

Step 3. Assign audio inputs to the mixer

The D12 provides four channels of analog input and
one (two-channel) digital input jack. In order to record
the audio signals from these inputs, they must be
assigned to mixer channels. If the CDRW-1 CD-R/RW
drive option (sold separately) is installed, you can also
assign the signal from an audio CD to the mixer chan-
nels.
Input1
Input2
Input3
Input4
L
Digital In
R
L
Dr
R
L
CD
R
CDRW-1
[INPUT]"Ch1-6", "Ch7-12"
In this section we will explain how to assign each type
of input source to mixer channels, and audition the
source.
The D12, the input mixer channel numbers are the
same as the recording and playback track num-
bers. For example if you wish to record on track 8,
you must assign the audio signal to mixer channel
8.

1. Analog inputs

Use the connections and settings most applicable to
your situation.
Ch.1: guitar Ch.2: built-in mic Ch.9: keyboard L/Ch.10: keyboard R
D12
Built-in mic GUITAR IN INPUT2
INPUT2 TRIM TRIM
GUITAR IN INPUT3
L
Guitar
Ch1: Track 1
Ch2: Track 2
Ch3: Track 3
Ch4: Track 4
Ch5: Track 5
Ch6: Track 6
Ch7: Track 7
Ch8: Track 8
Ch9: Track 9
Ch10: Track 10
Ch11: Track 11
Ch12: Track 12
INPUT3 INPUT4
TRIM TRIM
INPUT4
Keyboard
R
• Connect a guitar to the [GUITAR IN] jack, and
assign it to mixer channel 1
• Set the internal mic to [INPUT 2], and assign it to
mixer channel 2
• Connect a keyboard to the [INPUT 3] and [INPUT 4]
jacks, and assign them to mixer channels 9 and 10
If you are using stereo input, you should use adja-
cent inputs (1–2, 3–4), and input the signals to adja-
cent mixer channels.
Before you proceed, create a new song as described
in "1. Creating a new song" ( p.21).
Connect a guitar to the [GUITAR IN] jack,
and assign it to mixer channel 1
1 Connect your guitar.
Set the GUITAR IN [TRIM] to the minimum (+4
dB) and lower the [MASTER] fader before connect-
ing your guitar to the [GUITAR IN] jack.
2 Select the input channel.
• Access the [INPUT] "Ch1–6" tab page.
• Select the "Ch1" icon, and rotate the [VALUE]
dial to select "INPUT 1."
The input from the [GUITAR IN] jack has now
been assigned to mixer channel 1.
3 Assign the input sound to mixer channel 1.
Press the track 1 [TRACK STATUS] key to set it to
INPUT (LED lit orange).
4 Use the trim to adjust the input level.
Press the [METER/TRACK VIEW] key. Select the
" " button and press the [ENTER] key to access
the dialog box.
Select "PreFaderLev," select the "OK" button, and
press the [ENTER] key.
23
