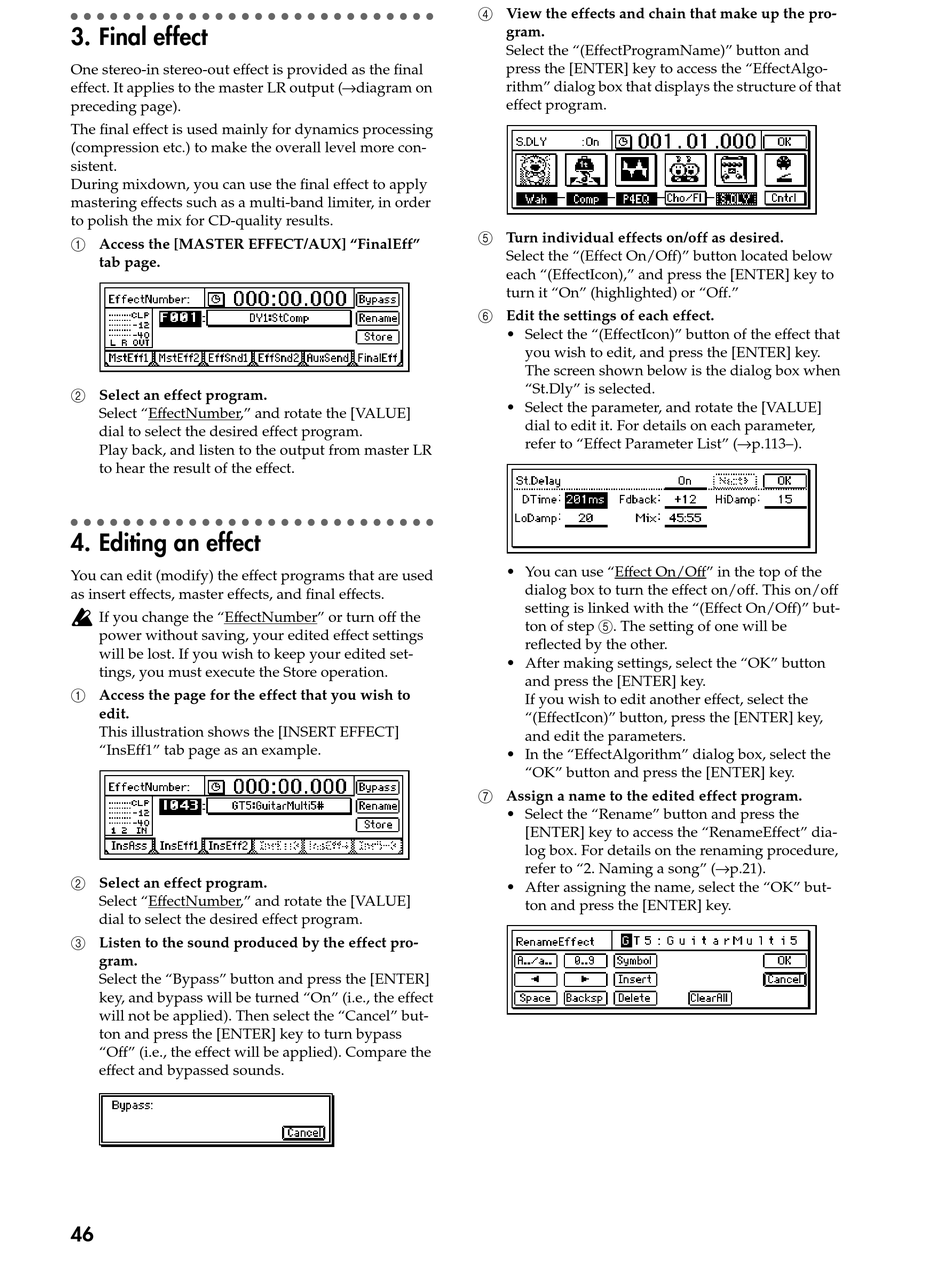

3. Final effect

One stereo-in stereo-out effect is provided as the final
effect. It applies to the master LR output ( diagram on
preceding page).
The final effect is used mainly for dynamics processing
(compression etc.) to make the overall level more con-
sistent.
During mixdown, you can use the final effect to apply
mastering effects such as a multi-band limiter, in order
to polish the mix for CD-quality results.
1 Access the [MASTER EFFECT/AUX] "FinalEff"
tab page.
2 Select an effect program.
Select "EffectNumber," and rotate the [VALUE]
dial to select the desired effect program.
Play back, and listen to the output from master LR
to hear the result of the effect.

4. Editing an effect

You can edit (modify) the effect programs that are used
as insert effects, master effects, and final effects.
If you change the "EffectNumber" or turn off the
power without saving, your edited effect settings
will be lost. If you wish to keep your edited set-
tings, you must execute the Store operation.
1 Access the page for the effect that you wish to
edit.
This illustration shows the [INSERT EFFECT]
"InsEff1" tab page as an example.
2 Select an effect program.
Select "EffectNumber," and rotate the [VALUE]
dial to select the desired effect program.
3 Listen to the sound produced by the effect pro-
gram.
Select the "Bypass" button and press the [ENTER]
key, and bypass will be turned "On" (i.e., the effect
will not be applied). Then select the "Cancel" but-
ton and press the [ENTER] key to turn bypass
"Off" (i.e., the effect will be applied). Compare the
effect and bypassed sounds.
46
4 View the effects and chain that make up the pro-
gram.
Select the "(EffectProgramName)" button and
press the [ENTER] key to access the "EffectAlgo-
rithm" dialog box that displays the structure of that
effect program.
5 Turn individual effects on/off as desired.
Select the "(Effect On/Off)" button located below
each "(EffectIcon)," and press the [ENTER] key to
turn it "On" (highlighted) or "Off."
6 Edit the settings of each effect.
• Select the "(EffectIcon)" button of the effect that
you wish to edit, and press the [ENTER] key.
The screen shown below is the dialog box when
"St.Dly" is selected.
• Select the parameter, and rotate the [VALUE]
dial to edit it. For details on each parameter,
refer to "Effect Parameter List" ( p.113–).
• You can use "Effect On/Off" in the top of the
dialog box to turn the effect on/off. This on/off
setting is linked with the "(Effect On/Off)" but-
ton of step 5. The setting of one will be
reflected by the other.
• After making settings, select the "OK" button
and press the [ENTER] key.
If you wish to edit another effect, select the
"(EffectIcon)" button, press the [ENTER] key,
and edit the parameters.
• In the "EffectAlgorithm" dialog box, select the
"OK" button and press the [ENTER] key.
7 Assign a name to the edited effect program.
• Select the "Rename" button and press the
[ENTER] key to access the "RenameEffect" dia-
log box. For details on the renaming procedure,
refer to "2. Naming a song" ( p.21).
• After assigning the name, select the "OK" but-
ton and press the [ENTER] key.
