Step 1. Making connections, and turning

1. Connections

Make the appropriate connections for your system,
substituting your own equipment as necessary for the
equipment shown here.

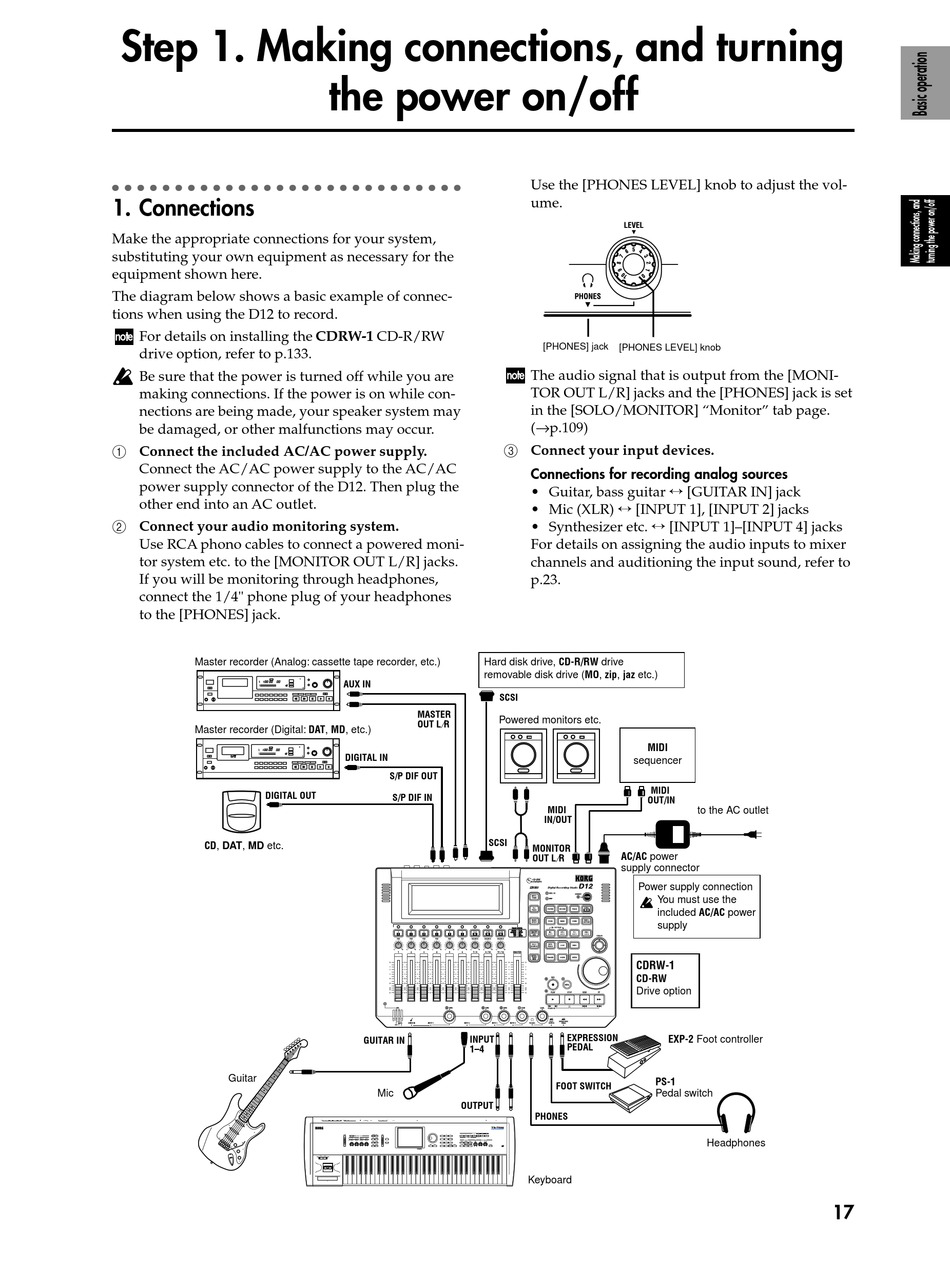

The diagram below shows a basic example of connec-
tions when using the D12 to record.
For details on installing the CDRW-1 CD-R/RW
drive option, refer to p.133.
Be sure that the power is turned off while you are
making connections. If the power is on while con-
nections are being made, your speaker system may
be damaged, or other malfunctions may occur.
1 Connect the included AC/AC power supply.
Connect the AC/AC power supply to the AC/AC
power supply connector of the D12. Then plug the
other end into an AC outlet.
2 Connect your audio monitoring system.
Use RCA phono cables to connect a powered moni-
tor system etc. to the [MONITOR OUT L/R] jacks.
If you will be monitoring through headphones,
connect the 1/4" phone plug of your headphones
to the [PHONES] jack.
Master recorder (Analog: cassette tape recorder, etc.)
Master recorder (Digital: DAT, MD, etc.)
DIGITAL OUT
CD, DAT, MD etc.
Guitar
the power on/off
3 Connect your input devices.
Hard disk drive, CD-R/RW drive
removable disk drive (MO, zip, jaz etc.)
AUX IN
SCSI
MASTER
Powered monitors etc.
OUT L/R
DIGITAL IN
S/P DIF OUT
S/P DIF IN
SCSI
INPUT
GUITAR IN
1–4
Mic
OUTPUT
Use the [PHONES LEVEL] knob to adjust the vol-
ume.
[PHONES] jack
[PHONES LEVEL] knob
The audio signal that is output from the [MONI-
TOR OUT L/R] jacks and the [PHONES] jack is set
in the [SOLO/MONITOR] "Monitor" tab page.
( p.109)
Connections for recording analog sources
• Guitar, bass guitar ↔ [GUITAR IN] jack
• Mic (XLR) ↔ [INPUT 1], [INPUT 2] jacks
• Synthesizer etc. ↔ [INPUT 1]–[INPUT 4] jacks
For details on assigning the audio inputs to mixer
channels and auditioning the input sound, refer to
p.23.
MIDI
sequencer
MIDI
OUT/IN
MIDI to the AC outlet
IN/OUT
MONITOR
AC/AC power
OUT L/R
supply connector
Power supply connection
You must use the
included AC/AC power
supply
CDRW-1
CD-RW
Drive option
EXPRESSION
EXP-2 Foot controller
PEDAL
PS-1
FOOT SWITCH
Pedal switch
PHONES
Headphones
Keyboard
17
