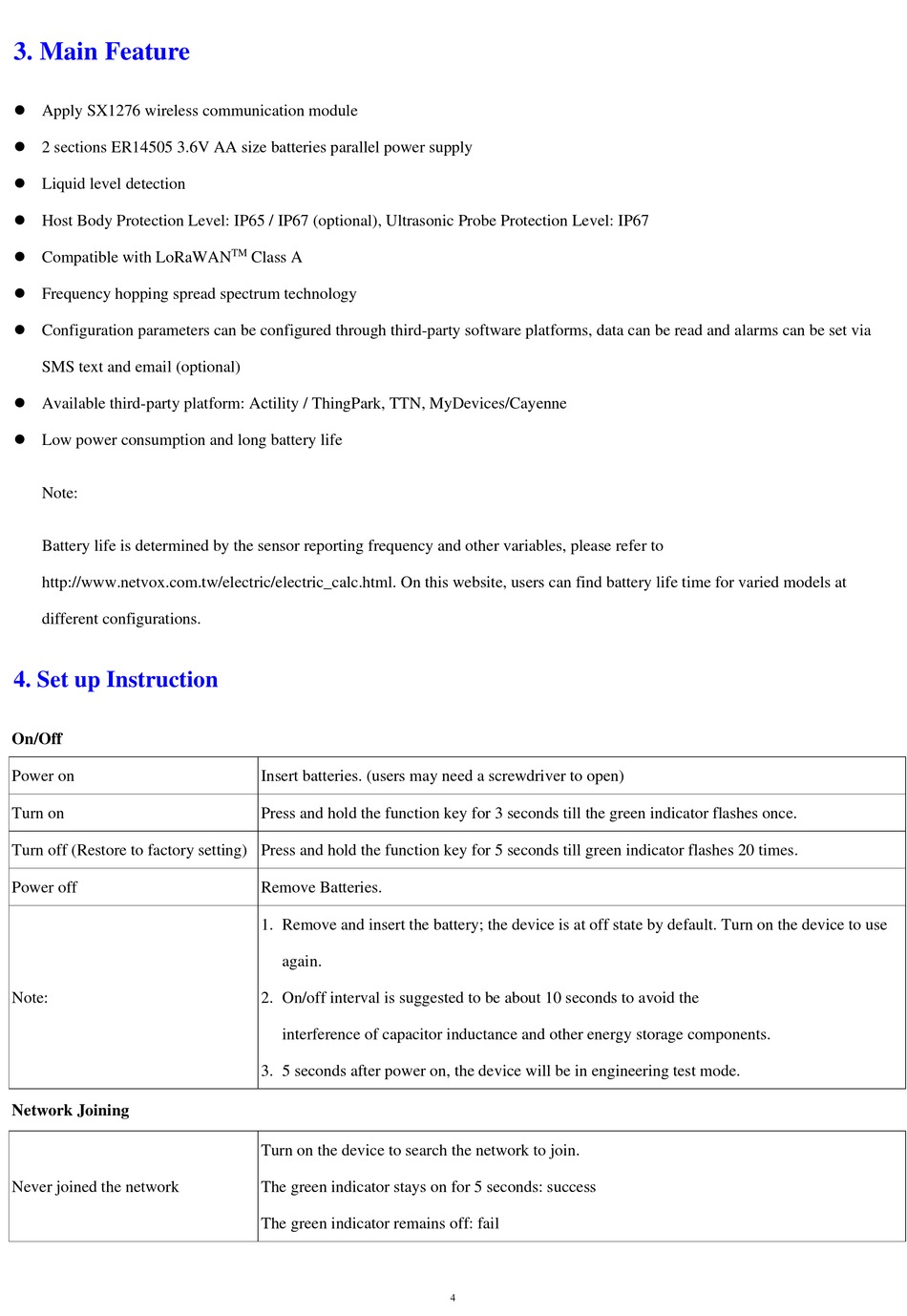

3. Main Feature

 Apply SX1276 wireless communication module
 2 sections ER14505 3.6V AA size batteries parallel power supply
 Liquid level detection
 Host Body Protection Level: IP65 / IP67 (optional), Ultrasonic Probe Protection Level: IP67
 Compatible with LoRaWAN
 Frequency hopping spread spectrum technology
 Configuration parameters can be configured through third-party software platforms, data can be read and alarms can be set via
SMS text and email (optional)
 Available third-party platform: Actility / ThingPark, TTN, MyDevices/Cayenne
 Low power consumption and long battery life
Note:
Battery life is determined by the sensor reporting frequency and other variables, please refer to
http://www.netvox.com.tw/electric/electric_calc.html. On this website, users can find battery life time for varied models at
different configurations.

4. Set up Instruction

On/Off
Power on
Turn on
Turn off (Restore to factory setting) Press and hold the function key for 5 seconds till green indicator flashes 20 times.
Power off
Note:
Network Joining
Never joined the network
TM
Class A
Insert batteries. (users may need a screwdriver to open)
Press and hold the function key for 3 seconds till the green indicator flashes once.
Remove Batteries.
1. Remove and insert the battery; the device is at off state by default. Turn on the device to use
again.
2. On/off interval is suggested to be about 10 seconds to avoid the
interference of capacitor inductance and other energy storage components.
3. 5 seconds after power on, the device will be in engineering test mode.
Turn on the device to search the network to join.
The green indicator stays on for 5 seconds: success
The green indicator remains off: fail
