R718PA4
Model:
Wireless H2S Sensor
Wireless H
S Sensor
2
R718PA4
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R718PA4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for netvox R718PA4

  • Page 1 R718PA4 Model: Wireless H2S Sensor Wireless H S Sensor R718PA4 User Manual...
  • Page 2 Table of Content 1. Introduction....................................................2 2. Appearance....................................................2 3. Main Features...................................................2 4.Set up Instruction..................................................3 5. Data Report....................................................3 6.Installation....................................................4 7.Important Maintenance Instruction............................................4...

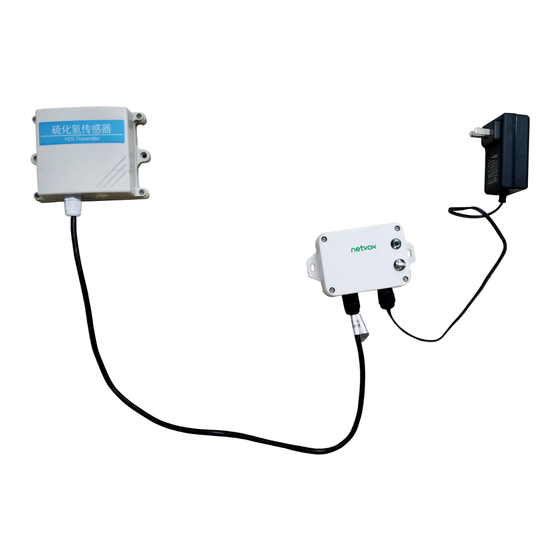

  • Page 3 R718PA4is a long-range wireless occupancy detection device for Netvox Class A type devices based on LoRaWAN open protocol. The R718PA4 can be connected to a hydrogen sulfide sensor with RS485 to report the concentration of hydrogen sulfide collected by the device to the corresponding platform.
  • Page 4 The real data sending cycle is programmed before shipment. There is no minimum time supported. R718PA4 defaults Max Interval = 60min. R718PA4 reports the hydrogen sulfide H S concentration value. The data parsing reported by the device is referenced by the Netvox LoraWAN Application Command document and http://www.netvox.com.cn:8888/page/index...
  • Page 5 Description Device DeviceType NetvoxPayLoadData ConfigReportRe 0x01 MinTime(2bytes Unit:s) MaxTime(2bytes Unit:s) Reserved ConfigReportRs 0x81 Status(0x00_success) Reserved (8Bytes,Fixed 0x00) R718PA4 0x57 ReadConfigRepo 0x02 Reserved (9Bytes,Fixed 0x00) rtReq ReadConfigRepo 0x82 MinTime(2bytes Unit:s) MaxTime(2bytes Unit:s) Reserved rtRsp Report Configuration Example: (1) Report configuration parameters...
  • Page 6 7.Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely.
