Model：R718PB15A

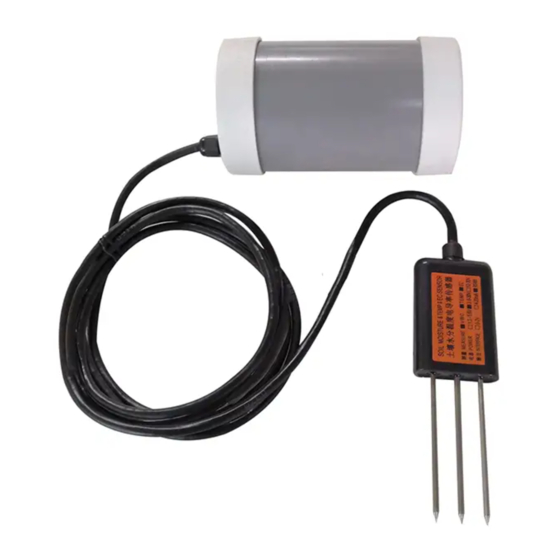

Wireless Soil Moisture/Temperature/Electrical Conductivity Sensor
Wireless Soil Moisture/
Temperature/Electrical Conductivity Sensor
User manual
Copyright©Netvox Technology Co., Ltd.
This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained
in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX
Technology. The specifications are subject to change without prior notice.
0
Advertisement
Table of Contents
Related Manuals for netvox R718PB15A
Summary of Contents for netvox R718PB15A
- Page 1 This document contains proprietary technical information which is the property of NETVOX Technology. It shall be maintained in strict confidence and shall not be disclosed to other parties, in whole or in part, without written permission of NETVOX Technology. The specifications are subject to change without prior notice.
-
Page 2: Table Of Contents
Table of Content 1. Introduction ......................... 2 2. Appearance ......................... 2 3. Main Characteristics ....................2 4. Operation ........................3 5. Data Report ......................... 4 6. Installation ........................5 7. Important Maintenance Instruction ................6... -
Page 3: Introduction
1. Introduction R718PB15A is a Class A type device based on the LoRaWAN protocol. R718PB15A is connected with soil sensor (RS485 type) As detectors for soil moisture, temperature, electrical conductivity, the values collected by the sensor are reported to the corresponding gateway. -
Page 4: Operation
4. Operation On/Off Power on Insert batteries. (users may need a flat blade screwdriver to open) Turn on Press and hold the function key for 3 seconds till the green indicator flashes once. Turn off Press and hold the function key for 5 seconds till the green indicator flashes for 20 times. (Restore to factory setting) Power off Remove batteries... -
Page 5: Data Report
(1) The device report interval will be programmed based on the default firmware which may vary. (2) Mintime and ReportChange are not supported by R718PB15A (Invalid configuration) (3) Report cycle will be based on Report Max Time period when sending data packet. -
Page 6: Installation
6. Installation Method1. Horizontal Installation 1. Excavate a hole or trench a few centimeters deeper than the depth at which the sensor is to be installed. 2. At the installation depth, shave off some soil from the vertical soil face exposing undisturbed soil. 3. -
Page 7: Important Maintenance Instruction
7. Important Maintenance Instruction Your device is a product of superior design and craftsmanship and should be used with care. The following suggestions will help you use the warranty service effectively. • Keep the equipment dry. Rain, moisture, and various liquids or moisture may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely.
