Page 1: User Manual
R718PB15 Model： Wireless Soil Moisture/Temperature/Electrical Conductivity Sensor Wireless Soil Moisture/Temperature/Electrical Conductivity Sensor User manual... - Page 2 Table of Content 1. Appearance..................................................2 2. Introduction..................................................2 3. Main Characteristics................................................2 4. Operation....................................................3 5. Data Report...................................................4 6. Installation.................................................... 5 7. Important Maintenance Instruction..........................................5...

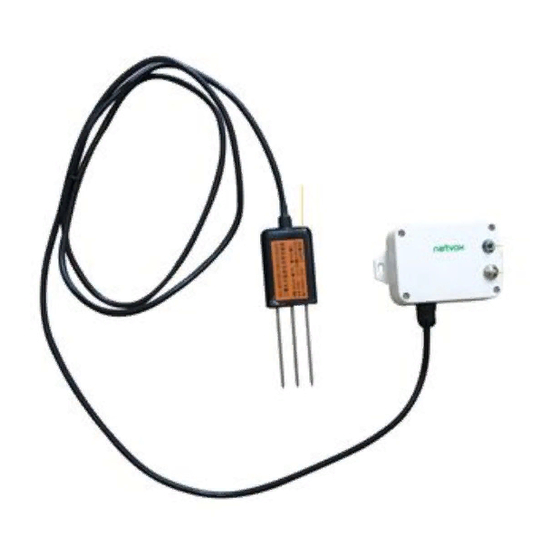

- Page 3 The R718PB15 is a ClassA type device based on the LoRaWAN protocol. The R718PB15 can be connected to the 5TE soil sensor, and the soil moisture /conductivity/temperature collected by the sensor is reported to the corresponding gateway. LoRa Wireless Technology: LoRa is a wireless communication technology dedicated to long distance and low power consumption.
- Page 4 4. Operation On/Off Insert batteries. Power on (users may need a flat blade screwdriver to open) Turn on Press and hold the function key for 3 seconds till the green indicator flashes once. Turn off Press and hold the function key for 5 seconds till the green indicator flashes for 20 times. (Restore to factory setting) Power off Remove batteries...
- Page 5 Note: The device send data cycle has been programmed to be correct. There is no minimum time supported. R718PB15 defaults Max Interval = 60min. The R718PB15 device does not support the ReportChange function. That is, the configuration is invalid. The sent report data string is always sent according to the ReportMaxTime cycle.
- Page 6 6. Installation METHOD 1. HORIZONTAL INSTALLATION 1. Excavate a hole or trench a few centimeters deeper than the depth at which the sensor is to be installed. 2. At the installation depth, shave off some soil from the vertical soil face exposing undisturbed soil.
