AXIOMTEK FAB116-8B3P3 Quick Installation Manual page 2

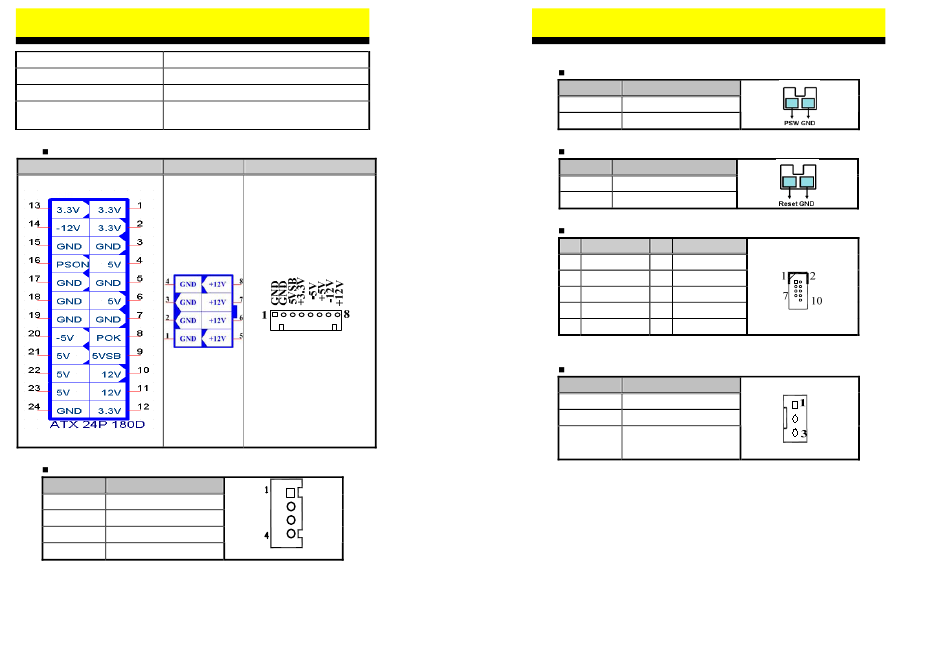

FAB116-8B3P3 Quick Installation Guide
PCI1-PCI3 PCI Slots 32-bit/33MHz
PCIE1 X16 PCIe Slot
PCIEB1-PCIEB3 X4 PCIe Slot (Note 2)
Temperature Selection For FAN
VR1,VR2,VR3,VR4 (Reserved)
Control(Optional)
Power Connector (CN1;CN2;CN3)
CN1 CN2
SM Bus Connector (CN4)
Pin Signal
1 +5V
2 SM_CLK
3 SM_DAT
4 GND
©Copyright 2010 AXIOMTEK Co., Ltd.
2
CN3
Version A1 Jan 2011
Printed in Taiwan
9419B116010E
FAB116-8B3P3 Quick Installation Guide
Power ON/OFF Push Button Connector (PWRBT1)
Pin Signal
1 PWR_BT
2 GND
Hardware Reset Connector (HWRST1)
Pin Signal
1 HW_RST
2 GND
USB Connectors (USB1, USB2)
Pin Signal Pin Signal
1 USB Power 2 USB Power
3 USB P0- 4 USB P1-
5 USB P0+ 6 USB P1+
7 USB GND 8 USB GND
10 GND
FAN Connector (FAN1,FAN2,FAN3,FAN4)
Pin Signal
1 GND
2 +12V
N.C or Rotation
3
Detection (Reserved)
Note 2: Follow by PICMG1.3 standard, The ports for the B[3:0] link
are configured to one x4 PCIe. And the x4 PCIe is transferred to
three x4PCIe slots (PCIEB1-PCIEB3) via PCIe switch.
