Installation

Mounting
P13 (Red) and P14
(White) Expansion
Supply Connectors
The 4010-9813 and -9823 Expansion Power Supplies install in their own
hardware slot located to the right of the 4010 SFI/O module (see Figure 2). Use
Steps 1 through 3 to mount an expansion supply.
1. Disconnect battery and then AC power from the FACP.
2. With TB1 of the expansion power supply in the bottom position, slip the top
hole of the expansion supply's metal bracket over the flanges located on the
4010 chassis.
3. Use the supplied slotted Torx screws (Part No. 441-002) and lock washers
to secure the expansion supply's bracket to the chassis.
Note: The yellow and orange wires on the expansion power supply have no
terminations on the FACP. They must be neatly tucked out of the way.
TB5
-
2
TB8
Torx Screw (2)
(441-002)
TB1

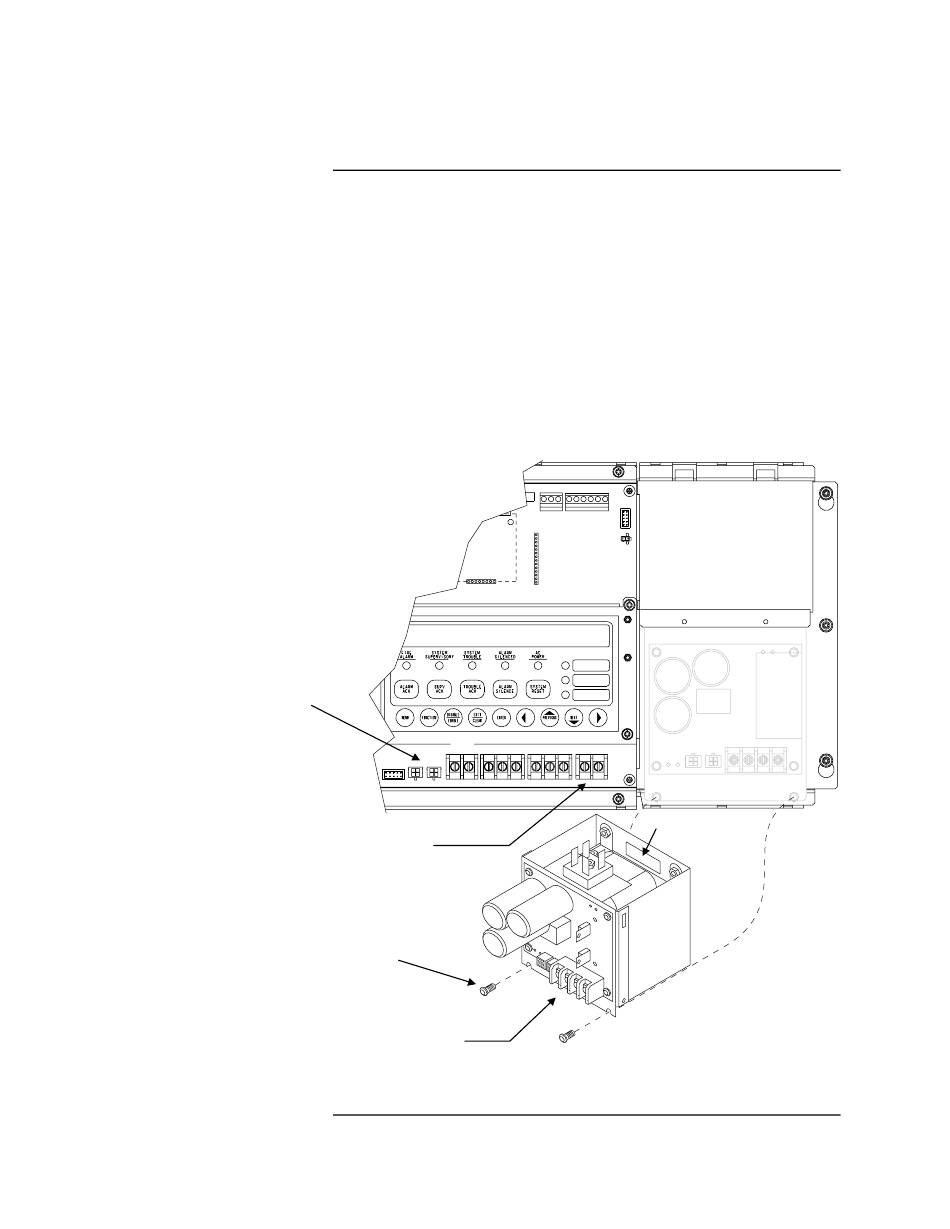

Figure 2. 4010 Expansion Supply Hardware Slot
firealarmresources.com
+
1
3
+ - + -
Hole to hook
on chassis
