4010-9813 and -9023 Expansion Power Supplies
Introduction
P2 Connector (White Harness)
P1 Connector (Red Harness)
Battery Leads
TB1 AUX Power Output
(4A maximum via two 2A taps)
The expansion power supply provides a maximum of 4A of filtered 24VDC
power. This power can be distributed between each of the following four
circuits with no circuit drawing more than 2A.
N
NAC Circuit 3
N
NAC Circuit 4
N
Circuit 1 (TB1-1 and TB1-2 on the expansion power supply)
N
Circuit 2 (TB1-3 and TB1-4 on the expansion power supply)
The 4010-9813 (120V) and 4010-9823 (240V) expansion power supplies have
their own dedicated hardware slot (See Figure 2). See Figure 1 for all connector
locations.

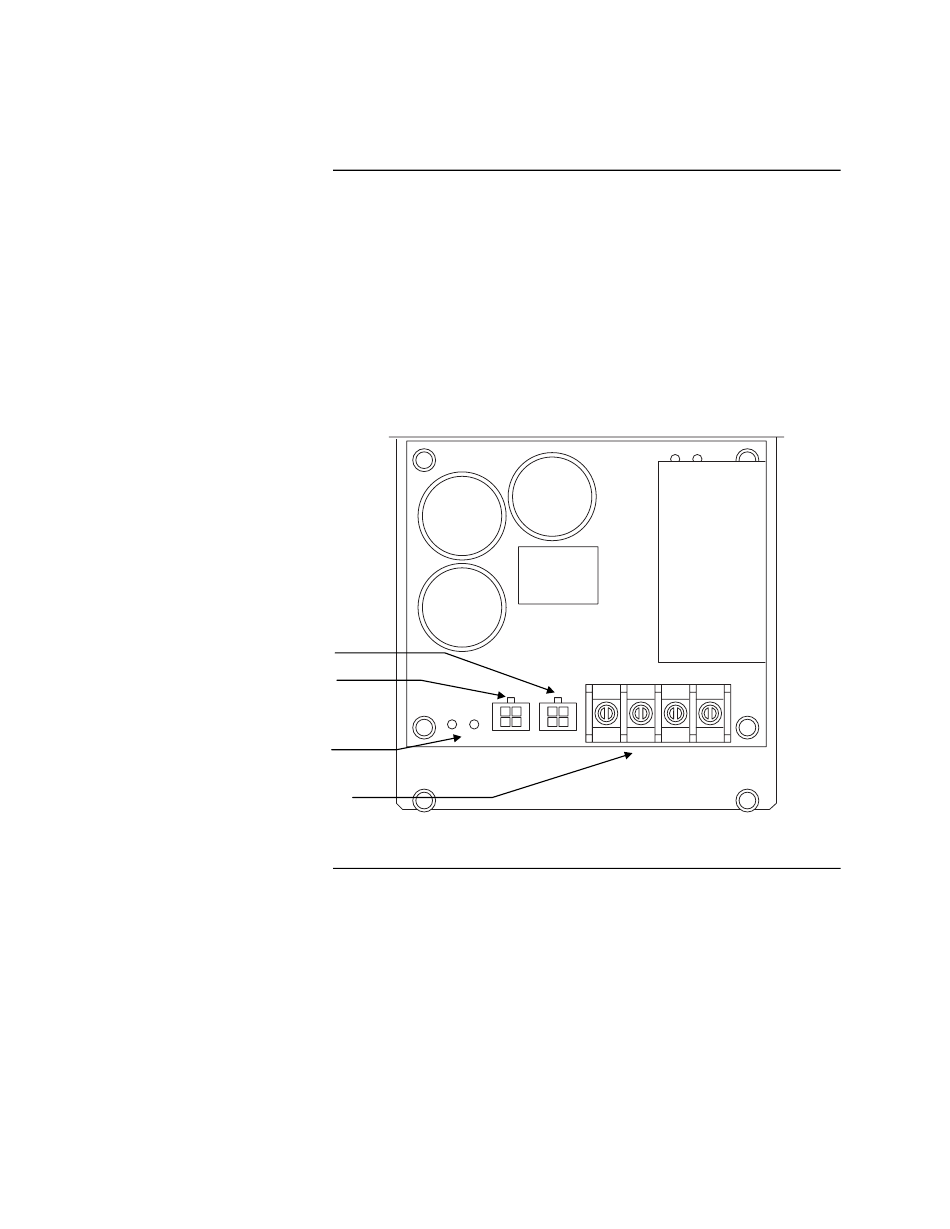

Figure 1. 4010 Expansion Power Supply
