Pilot flame adjustment
When changing from natural gas to LPG, it is nec-
essary to adjust the pilot burner flame as well.
Please adjust the flame as below.
Take off valve knob. Use a screw driver to adjust
the flame height to a desired flame. Rotate below
arrowed pin clockwise, the flame height would be
reduced. Rotate it anti-clockwise, the flame height
would be higher.
Measuring gas supply pressure
Gas supply pressure can be measured with a liq-
uid-filled pressure gauge (e.g. a U-shaped pres-
sure gauge, minimum scale division 0.1mbar) or a
digital gauge. Procedure as follows:
1. Remove the panel, unscrew the screw on the
pressure port (Pic.1)
2. Place the pressure gauge.
3. Start up the appliance by following the instruc-
tions in the user's manual.
4. Check the supply pressure.
5. After the check, remove the pressure gauge.
EN
6. Replace the sealing screw.
Transportation and storage
During transportation, the machine should be
careful handled and prevent from shaking. The
packaged machine should not be stored in open
air long. It should be put in a ventilated warehouse
12
without causticity gas. And it should not be put up
side down. If it needs to be stored in open air tem-
porarily, measurement against raining is needed.

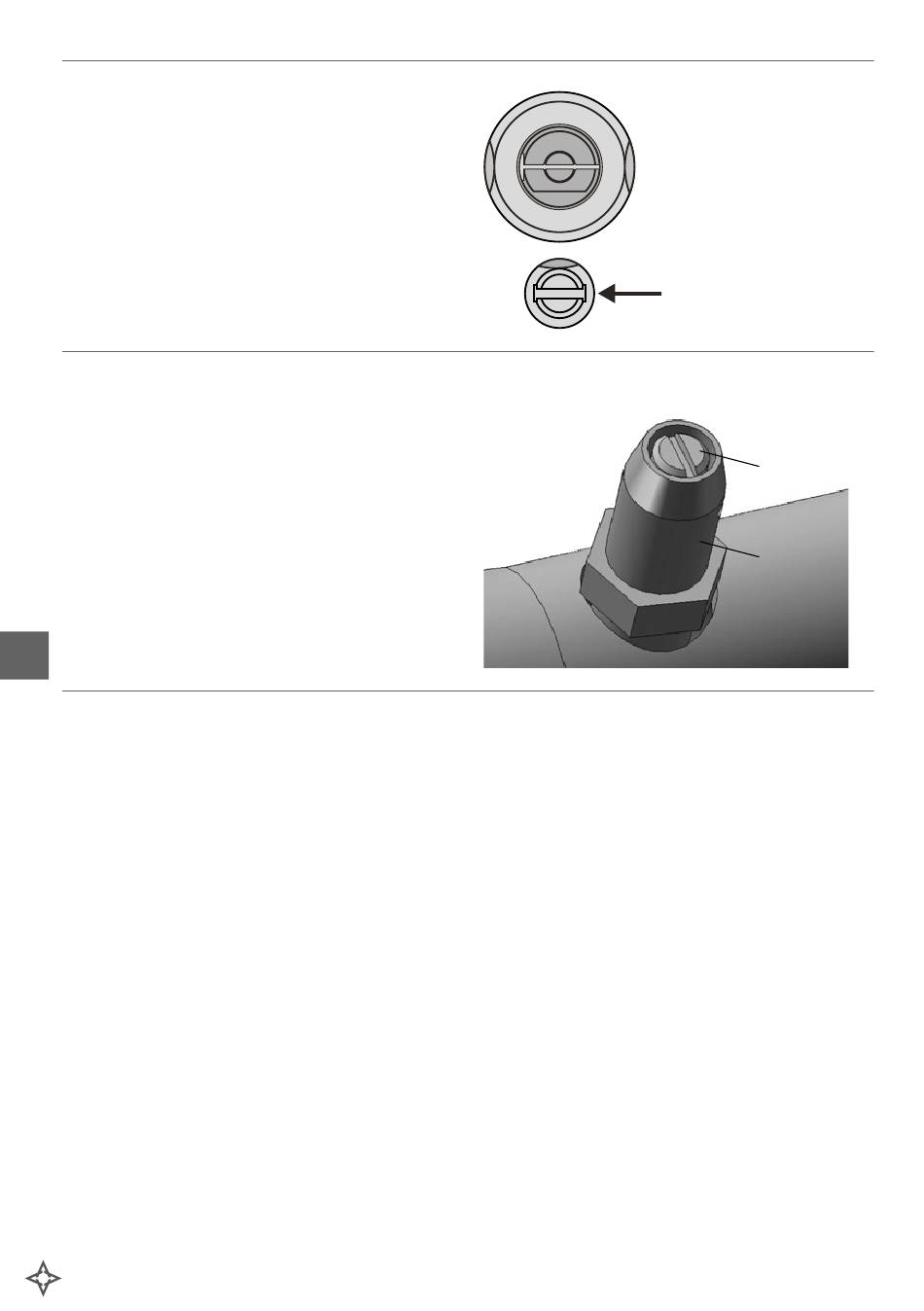

Pic.1
Sealing
screw
Pressure
port
