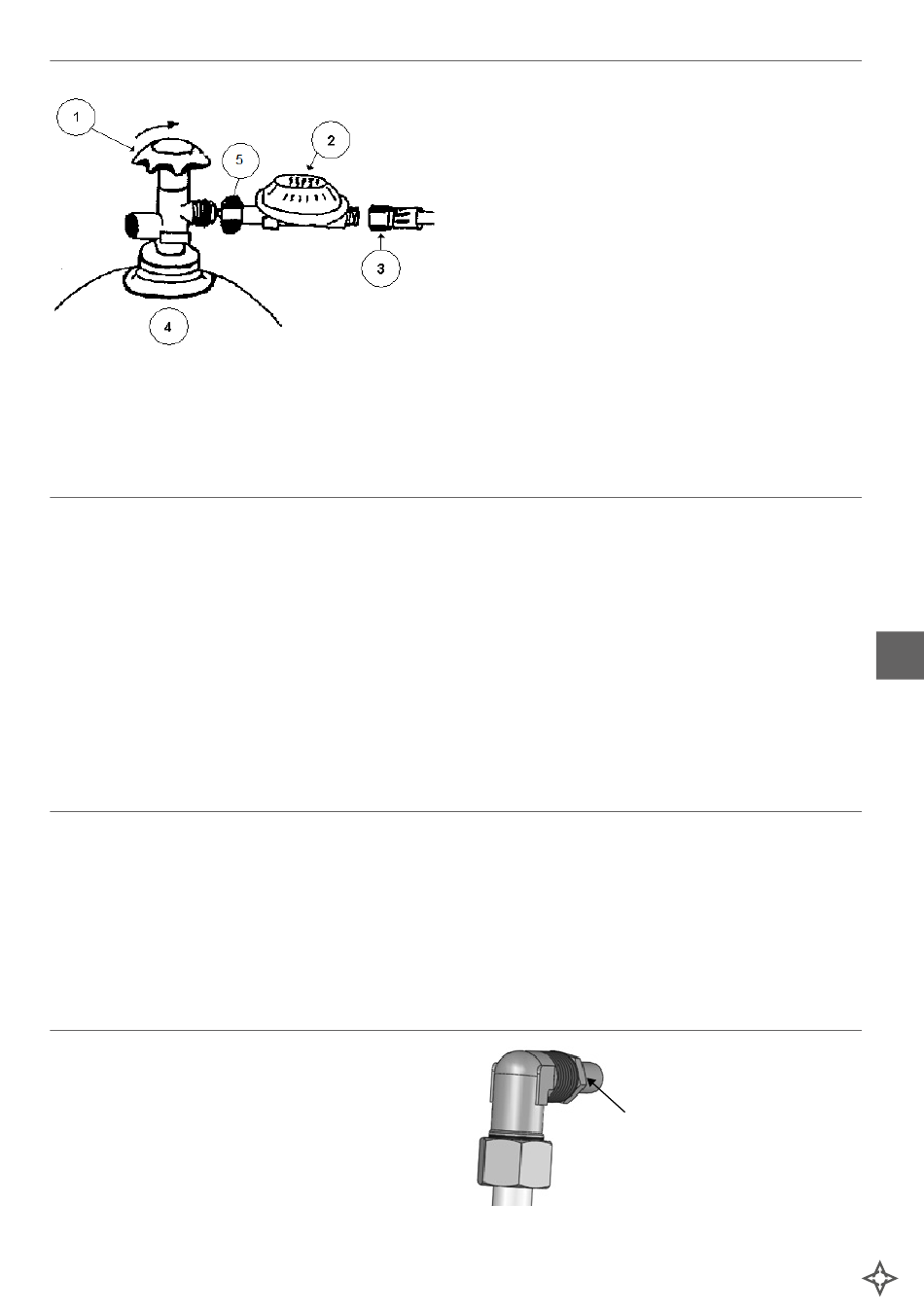

Connecting the gas bottle
1 = Main tap
2 = Pressure regulator
3 = Gas hose
4 = Gas Bottle
5 = Rubber washer
Instructions for use
Ignition:
1. Push down the control knob.
2. While pressing, turn the control knob to the Max.
3. While knob is in this position, press the ignition
button several times.
4. Keep the control knob pressed for 10-15 seconds
till flame remain lit.
Extinguishing:
1. Turn the control knob to the "Off" position."
Cleaning and maintenance
• Let the appliance cool down before cleaning.
• While cleaning, please shut all valve in case of
accident happens.
• After the machine finishes working , please clean
the surface of the griddle and brush fresh edible
oil.
• Then wipe the machine with wet towel but do not
Changing the main burner injector
1. Loosen and remove the brass orifice located on
the end of the burner with a wrench.
2. Replace with the new orifice from the conver-
sion kit, first applying a small amount of jointing
paste to the thread on the end of the nozzle hold-
er, this will ensure a good gas tight seal.
Attach the pressure regulator to the gas bottle
using the large brass nut. Always ensure that the
rubber-sealing washer is present in the nut. (NB.
This rubber washer is not required for UK-type
pressure regulators). Tighten the nut well. Note
that the nut has a left-hand thread.
Check the connections for leaks using a soap and
water solution.
Every time a newly filled gas bottle is connected, a
new rubber washer must be fitted. In most cases,
your gas supplier will include it with the bottle.
5. Move the control knob to the desired setting be-
tween MAX and MIN.
6. If the flame fails to remain lit, repeat above pro-
cedure 1~4.
2. Attention! After extinguishing wait ±10 minutes
before re-igniting the burner.
wash it with a water jet prevent from damaging
function.
• Clean the ventilation slots (if applicable) with a
vacuum cleaner.
• After cleaning, please put all parts on a good
place and cover the machine with dustproof pa-
per.
