PROAIM P-WV-2PL Manual

10' wave-2 jib crane for camera
Hide thumbs Also See for P-WV-2PL:

Advertisement

Quick Links

Download this manual
1

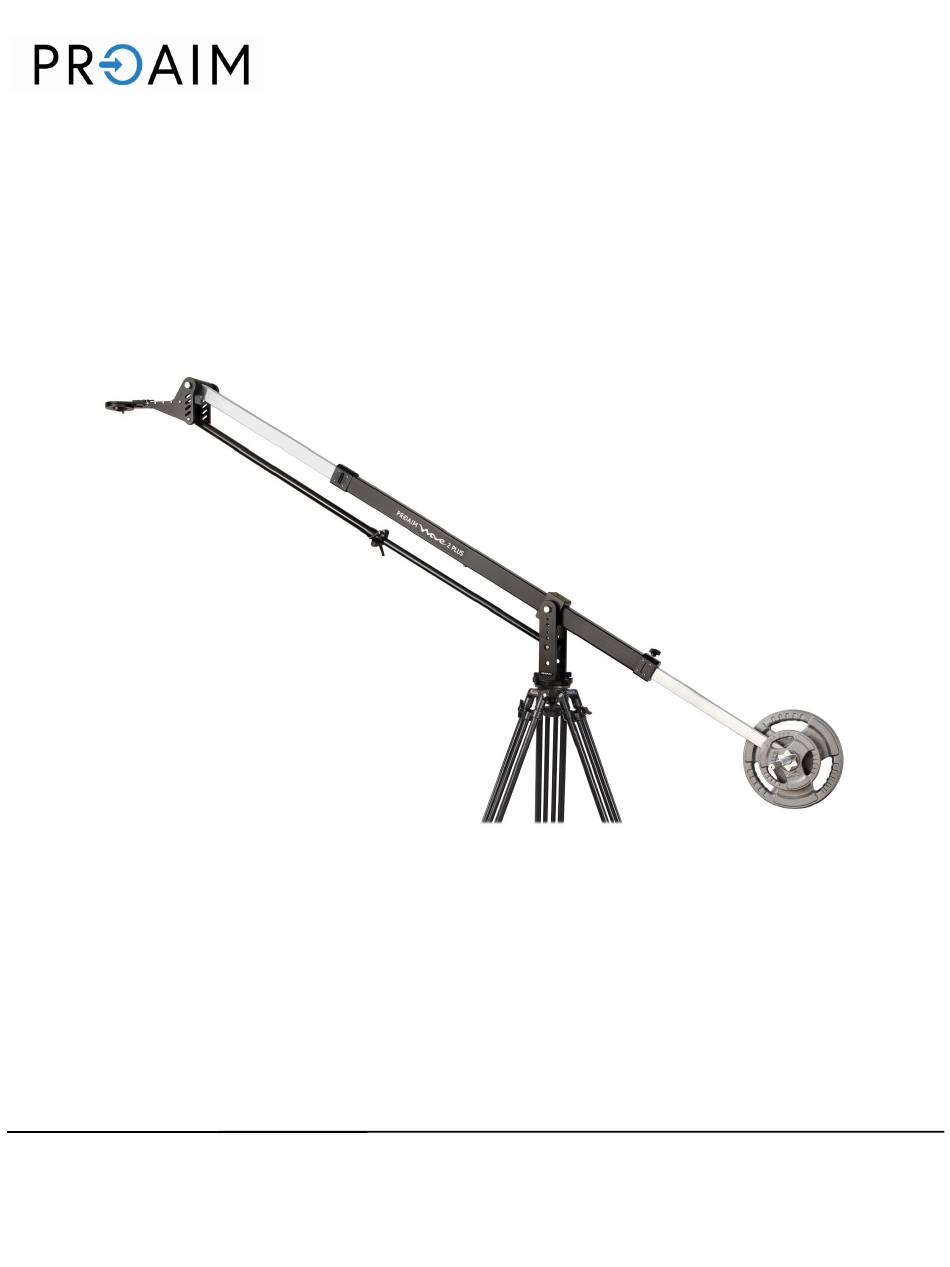

10' Wave-2 Jib Crane for Camera
(P-WV-2PL)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the P-WV-2PL and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM P-WV-2PL

Summary of Contents for PROAIM P-WV-2PL

  • Page 1 10' Wave-2 Jib Crane for Camera (P-WV-2PL) All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright...
  • Page 2 What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below. 10’ Wave Jib Crane with 100mm Bowl Weight Rod 100mm Bowl 2 x Knobs Flat Base Plate 75 mm 2 x Weight Closers 2 x Ratchet Knobs Conversion Ring...
  • Page 3 INDEX Sr. No Particulars Page No. Jib Section Assembly Jib mounting on Tripod Stand Weight Rod & Weight Mounting 100mm Bowl setup 75mm Conversion Ring Setup Flat Base Plate Setup Sr. Pan-Tilt Head (Not Included) Mounting Balancing Tips Final Setup...
  • Page 4 Camera Jib Setup Jib Section Assembly • Begin by opening the first section of the camera plate adjustment rod. • Next, open the camera plate, as shown in the image. • Loosen the Allen bolts on the jib arm using a 3/16 Allen key.
  • Page 5 • After c o n n e c ti n g both sections, insert the washer. • Insert the ratchet knob and secure both sections tightly. • For double locking, repeat the process: insert a washer followed by a ratchet knob, as shown in the image.
  • Page 6 • Insert the central fork of the jib arm into the tripod bowl (Not Included). • After installing the central fork, secure the jib by tightening the locking knob firmly. Feature: The well-built pan knobs control the panning of the Jib. Built-in bubble leveler allows for fast, accurate setup on uneven surfaces.
  • Page 7 Weight Rod & Weight Mounting • Insert the Weight rod into the weight section of the jib. • Slide the weights (Not Included) onto the weight Rod. • After adding the weight, insert the weight closure to prevent them from sliding off. NOTE: It's crucial to ensure that the opposite end of the jib arm is correctly secured to prevent any sudden upward movement when...
  • Page 8 100mm Bowl Setup NOTE: The Wave Jib has a 100mm bowl attached to its camera plate. • Loosen the locking knob on the 100mm fluid head (Not Included). • Detach the locking knob and mount the 100mm fluid head (Not Included) onto the 100mm bowl.
  • Page 9 • Tighten the knob to secure the camera in place. • The Camera is now securely mounted onto the Fluid head. 75mm Conversion Ring Setup • Attach the 75mm conversion ring to the 100mm bowl. • Loosen and remove the locking knob from the 75mm fluid head (Not Included).
  • Page 10 Flat Baseplate Setup • Loosen and remove the Allen bolts to detach the 100mm bowl. • Remove the bowl completely. • Using the Allen key, remove all bolts from the camera mount. • Align and attach the Flat Baseplate at the bottom of the camera mount.
  • Page 11 Sr. Pan-Tilt Head (Not Included) Mounting • Attach the Sr. Pan-Tilt head (Not Included) the Flat base plate by inserting the bolts. • Tighten all bolts securely using an Allen key. Then, mount the camera onto the camera plate of the Pan-Tilt Head. •...
  • Page 12 Balancing Tips : Camera Weight 15kg 20kg 25kg Counter Balance 30kg 40kg 50kg Measured Length 305cm 259cm 208cm Length from U Fork to 201cm 172cm 143cm Camera Plate NOTE: The counterweight required to balance the jib will be approximately twice the weight of the camera setup.
  • Page 13 YOUR PROAIM 10' WAVE-2 JIB CRANE FOR CAMERA ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
