1

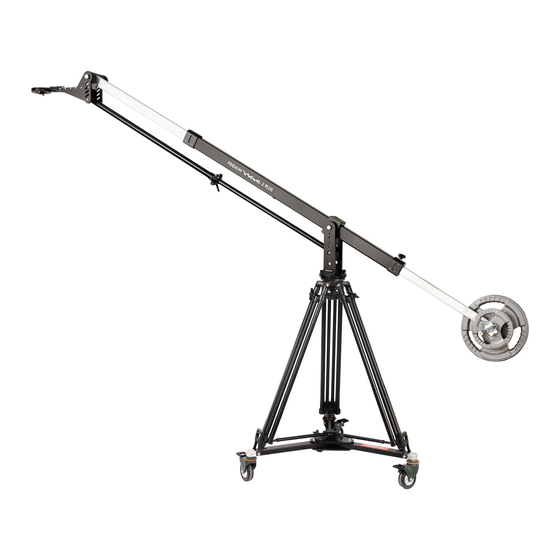

10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads
(P-WV-2PL)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Knob
Weight Rod
10' Wave Jib Crane with 100mm Bowl
Locking Knob
75 mm
Flat Base Plate
Conversion Ring
Storage Bag
1 X L-Type Allen Key
Weight
(Size: 3/16")
Closures
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Table of Contents
Related Manuals for PROAIM P-WV-2PL
Summary of Contents for PROAIM P-WV-2PL
- Page 1 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads (P-WV-2PL) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
-
Page 2: Table Of Contents
INDEX Sr. No Particulars Page No. Jib Section Assembly Jib mounting on Tripod Stand Weight Rod & Weight Mounting 75mm Conversion Ring setup 100mm Bowl setup Flat Base Plate Setup Jr. Pan-Tilt Head Mounting Joystick Controller Box Mounting Balancing Tips Final Setup... -
Page 3: Jib Section Assembly
Camera Jib Setup Jib Section Assembly • Open the first section of the Camera plate adjustment rod. • Now, align both the Camera plate adjustment rod sections, as shown in the image. • Connect the first section of the adjustment rod to the second section. -
Page 4: Weight Rod & Weight Mounting
• Now, your 10’ Wave jib is securely mounted on the tripod stand (Not Included). Feature: The well-built pan knobs control the panning of the Jib. Built-in bubble leveler allows for fast, accurate setup on uneven surfaces. Seamless Panning with Premium Roller Bearings. - Page 5 • Tighten all the knobs to secure it. • Front telescopic post is now fully opened as shown in the image.
-
Page 6: 75Mm Conversion Ring Setup
75mm conversion Ring 100mm Bowl Flat Base Plate 75mm Conversion Ring Setup NOTE: Wave jib has a 100mm bowl attached to its Camera plate. • Attach the 75mm conversion ring to the 100mm bowl. • Mount 75mm Fluid head (Not Included) on the Conversion ring and secure it using the locking knob. -
Page 7: 100Mm Bowl Setup
• Your Camera is now securely mounted on the Fluid head. 100mm Bowl Setup • Mount the 100mm Fluid head (Not Included) on the 100mm bowl and secure it using the locking knob. • Remove Quick release plate (Not Included) from the Fluid head. -
Page 8: Flat Baseplate Setup
Flat Baseplate Setup NOTE: Remove the 100mm Bowl before mounting the Flat baseplate. • Remove the bolts and attach the Flat Baseplate on the bottom of the camera mount. • Insert the bolts . NOTE: Attach the flat base plate to the bottom camera mount underslung... -
Page 9: Balancing Tips
Balancing Tips Counter Weight 15kg 20kg 25kg 30kg 40kg 50kg Counter Balance Measured Length 305cm 259cm 208cm Length from U Fork to 201cm 172cm 143cm Camera Plate NOTE: The counterweight required to balance the jib will be approximately twice the weight of the camera setup. -
Page 10: Final Setup
YOUR PROAIM 10 WAVE-2 JIB CRANE FOR CAMERA ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
