- Page 1 PT 5300 SP ORIGINAL INSTRUCTIONS SPOT COOLING AIR CONDITIONING UNIT...
-
Page 2: Table Of Contents
Follow the manual damage prior to every use of the device. Do not use any Information marked with this symbol indicates that the defective devices or device parts. instructions must be observed. spot cooling air conditioning unit PT 5300 SP... - Page 3 (e.g. open flames, an active gas appliance or an electric heater). • Please note that the refrigerant is odourless. • Only install the device in compliance with the national installation regulations. spot cooling air conditioning unit PT 5300 SP...
- Page 4 Warnings Do not reach into the flexible air duct when adjusting the air angle for cold air. Adjust the angle by moving the plastic cover. spot cooling air conditioning unit PT 5300 SP...
- Page 5 Before any work on the device, remove the mains plug from the mains socket! Do not touch the mains plug with wet or damp hands. Hold onto the mains plug while pulling the power cable out of the mains socket. spot cooling air conditioning unit PT 5300 SP...
-
Page 6: Information About The Device

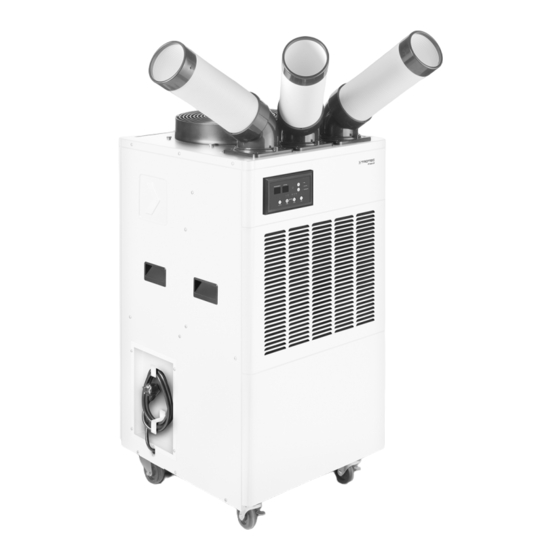

The condensate is transported to the condensation tank. Designation Hot air outlet Transport handle Condensation tank Wheels (with parking brake) Cable holder Air inlet with air filter Control panel Cold air duct spot cooling air conditioning unit PT 5300 SP... -
Page 7: Transport And Storage
• Only position the device in rooms where there is no source from dust and direct sunlight. of ignition (e.g. open flames, an active gas appliance or an • If required, use a cover to protect the device from invasive electric heater). dust. spot cooling air conditioning unit PT 5300 SP... - Page 8 Place the opening of the condensation tank underneath the lock condensate outlet inside the device (see figure). „Klick“ Operating the device with a condensation drain hose is also possible. spot cooling air conditioning unit PT 5300 SP...
- Page 9 Aligning the air ducts The cold air duct (8) can be adjusted by 360°. In addition, the cold air duct can be adjusted upwards and downwards by 150°. 45° 150° 360° spot cooling air conditioning unit PT 5300 SP...
-
Page 10: Operation
(see also chapter “Errors and faults”) Compressor LED Is illuminated when the compressor is in operation Timer button Switching the timer function on or off Timer LED Is illuminated when the timer is activated. spot cooling air conditioning unit PT 5300 SP... - Page 11 2. To exit the Dehumidification mode, keep the Fan 1. Press the Mode button(21) until the Room air speed button (24) and Mode button (21) pressed cooling LED (23) is lit. simultaneously for 3 seconds. spot cooling air conditioning unit PT 5300 SP...
- Page 12 Notes regarding automatic switch-off: • If the device is disconnected from the power supply, all settings for automatic switch-on are deleted. • Manually switching the device off disables the automatic switch-off function. spot cooling air conditioning unit PT 5300 SP...
-
Page 13: Errors And Faults
(out air sensor) • Check whether the overheating protection of the (out air sensor) compressor has tripped. Disconnect the device from the mains and let it cool down for approx. 10 minutes before reconnecting it. spot cooling air conditioning unit PT 5300 SP... -
Page 14: Maintenance
11. Date: ........12. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... 13. Date: ......... 14. Date: ........15. Date: ........16. Date: ........Signature: ........ Signature: ......... Signature: ......... Signature: ......... spot cooling air conditioning unit PT 5300 SP... - Page 15 Protect electrical 1. Remove the air filter from the device. components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. spot cooling air conditioning unit PT 5300 SP...
-
Page 16: Technical Annex
If you want to continue using the device: • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Transport and storage chapter. spot cooling air conditioning unit PT 5300 SP... - Page 17 Circuit diagram EVA FAN COMPRESSOR CAPACITOR COMP. CAPACITOR CON FAN AC_N AC_L COMP SWING H_FAN L_FAN OFAN YE / GN L BN PCB Board DISP ICE-T ROOM-T OUT-T Water level Display Panel spot cooling air conditioning unit PT 5300 SP...
- Page 18 Overview and list of spare parts Note: The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. spot cooling air conditioning unit PT 5300 SP...
- Page 19 Front air filter Bracket of con. motor Middle partition Bottom cover front shell Holder of con. motor Bracket water level Front shell Control motor shell Holder of magnetron switch Condenser-out pipe Magnetron switch spot cooling air conditioning unit PT 5300 SP...
-
Page 20: Disposal
The icon with the crossed-out waste bin on waste electrical or electronic equipment stipulates that this equipment We – Trotec GmbH – declare in sole responsibility that the must not be disposed of with the household waste at the end of product designated below was developed, constructed and its life. - Page 21 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
