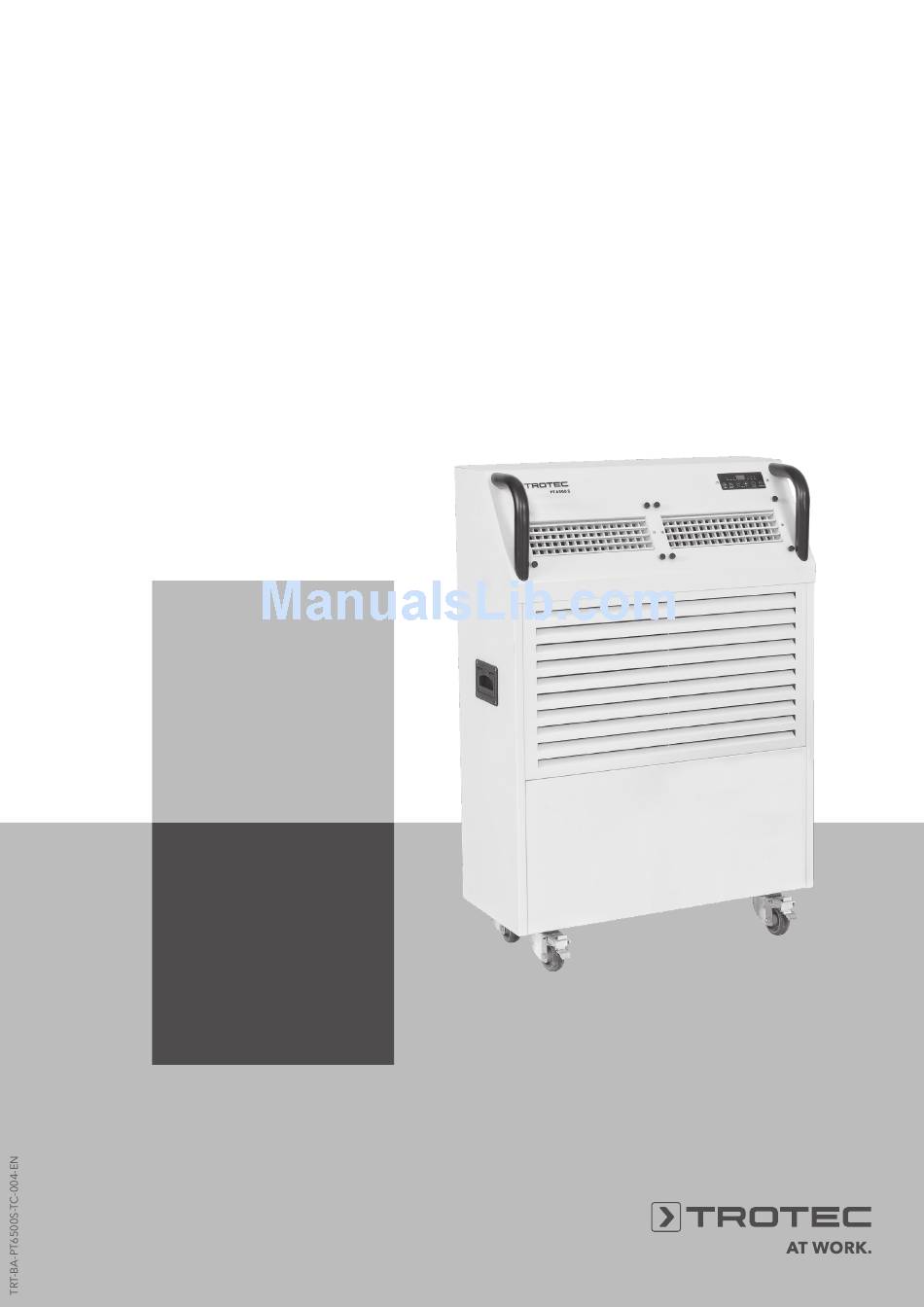

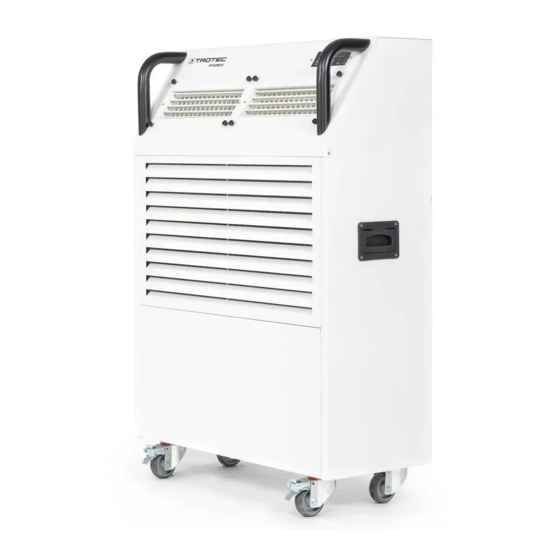

- Page 1 PT 6500 S OPERATING MANUAL AIR CONDITIONER...
-
Page 2: Table Of Contents
Do not place the device on damp or flooded ground. Do not use the basic device outdoors. Do not place any objects, e.g. wet clothing, on the device for drying. Any unauthorised changes, modifications or alterations to the device are forbidden. Operating Manual – Air Conditioner PT 6500 S... -
Page 3: Information About The Device
To avoid damages to the device, never operate the device without an inserted air filter! Caution! To avoid damages to the device, only transport and operate the device in an upright position! It must neither be tilted nor laid down! Operating Manual – Air Conditioner PT 6500 S... - Page 4 (blue) mains cable to external heat exchanger mains connection with power plug wheel with parking brake carrying handle air inlet louvre and air outlet transport handles Operating Manual – Air Conditioner PT 6500 S...
-
Page 5: Technical Data
BLACK BLACK Rivetto su batteria alettata ad acqua Vite carcassa u.e. COMPRESSOR EV2 (HGD) ELECTROVALVE ELECTROVALVE Inside Glicol EXT. FAN ELECTROVALVE Pump ELECTROVALVE BLUE BLACK PANNELLO COMANDI GREY 0307 T set 0-40 Operating Manual – Air Conditioner PT 6500 S... -
Page 6: Available Accessories
When positioning the device, observe the minimum distance from length of connected sets: max. 30 m walls or other objects as described in the chapter Technical data. Spot cooling attachment PT 6500 S, Ø 200 mm 1.210.000.151 Air transport hose Tronect SP-T, L = 7.6 m 6.100.001.200... - Page 7 (13, 8). 3. Connect the lines (red for the cooling water transport to the external heat exchanger (4, 9), blue for the cooling water transport from the external heat exchanger (12, 10)). Operating Manual – Air Conditioner PT 6500 S...
-
Page 8: Control Panel
To increase or reduce the desired room temperature for cooling. SET - button Switches the device on or off. ON/OFF button The device starts in cooling mode. VENT. button To activate or deactivate ventilation mode. Operating Manual – Air Conditioner PT 6500 S... -
Page 9: Errors And Faults
5. Store the device according to the Storage chapter. Your device still does not operate correctly after these checks? Bring the device to a specialist company for cooling and air-conditioning or to Trotec for repair. Operating Manual – Air Conditioner PT 6500 S... - Page 10 • Check the outside temperature (temperatures above 35 °C can excessive ambient temperatures. be critical). • After the inspection press the RESET button (31). • Disconnect the mains plug and plug it back in after 5 s to reset the alarm. Operating Manual – Air Conditioner PT 6500 S...
-
Page 11: Maintenance
9. Date: .......... 10. Date:........11. Date: ........12. Date: ........Signature:........Signature: ........Signature:........Signature: ........13. Date: ........14. Date:........15. Date: ........16. Date: ........Signature:........Signature: ........Signature:........Signature: ........Operating Manual – Air Conditioner PT 6500 S... - Page 12 Refrigerant circuit basic device • The refrigerant circuit of the basic device is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air-conditioning or by Trotec. Operating Manual – Air Conditioner PT 6500 S...
- Page 13 Observe the maintenance intervals to replace the air filter in due time! 5. Lift the air inlet cover (17). 6. Remove the air filter. 7. Clean the air filter (B). Operating Manual – Air Conditioner PT 6500 S...
-
Page 14: Disposal
Further information is provided on the nameplate. Dispose of the refrigerant appropriately and according to the national regulations. Operating Manual – Air Conditioner PT 6500 S... - Page 16 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
