Summary of Contents for Trotec PT 2000 SP

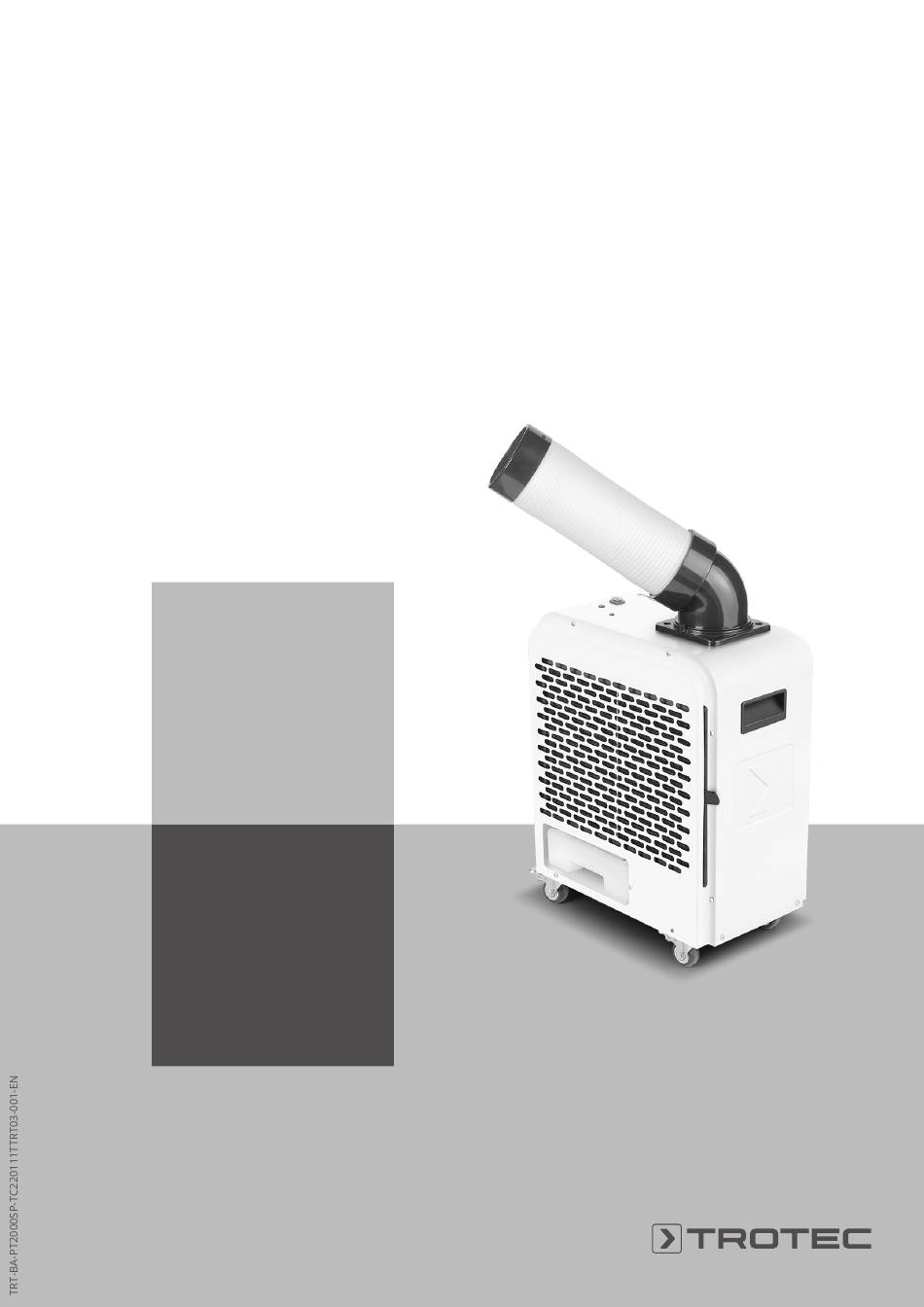

  • Page 1 PT 2000 SP ORIGINAL INSTRUCTIONS SPOT COOLING AIR CONDITIONING UNIT...
  • Page 2: Table Of Contents

    Follow the manual damage prior to every use of the device. Do not use any Information marked with this symbol indicates that the defective devices or device parts. instructions must be observed. spot cooling air conditioning unit PT 2000 SP...
  • Page 3 (e.g. open flames, an active gas appliance or an electric heater). • Please note that the refrigerant is odourless. • Only install the device in compliance with the national installation regulations. spot cooling air conditioning unit PT 2000 SP...
  • Page 4 Remove the condensation tank and empty it. Make sure that the condensation tank is inserted correctly before switching the device back on. Follow the manual This symbol indicates that the operating manual must be observed. spot cooling air conditioning unit PT 2000 SP...
  • Page 5 Do not leave the packaging lying around. Children may use it as a dangerous toy. Warning Risk of death due to suspended loads! Make sure that nobody is situated in the immediate proximity. spot cooling air conditioning unit PT 2000 SP...
  • Page 6: Information About The Device

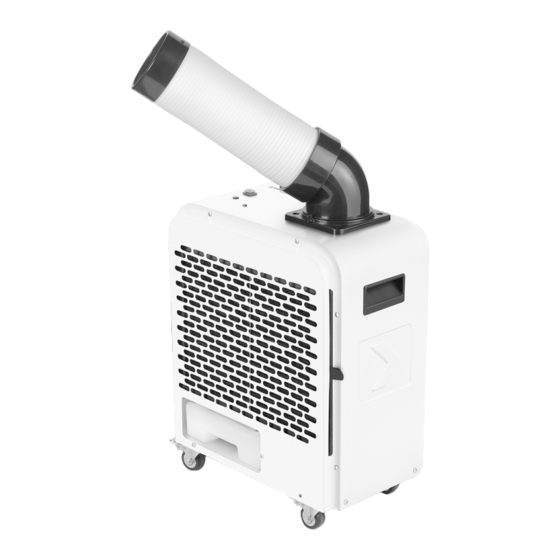

    Designation Cold air duct Transport handle 2 wheels with parking brake On/off switch Hot air outlet Condensation tank Air inlet with air filter Condensation tank full LED spot cooling air conditioning unit PT 2000 SP...
  • Page 7: Transport And Storage

    • Only position the device in rooms where there is no source from dust and direct sunlight. of ignition (e.g. open flames, an active gas appliance or an • If required, use a cover to protect the device from invasive electric heater). dust. spot cooling air conditioning unit PT 2000 SP...
  • Page 8 Operating the device with a condensation drain hose is not possible. Aligning the cold air duct The cold air duct (1) can be adjusted by 360°. In addition, the cold air duct can be adjusted upwards and downwards by 150°. 150° 360° spot cooling air conditioning unit PT 2000 SP...
  • Page 9: Operation

    • Clean the device according to the Maintenance chapter. • Empty the condensation tank, if need be. • Store the device according to the Transport and storage chapter. spot cooling air conditioning unit PT 2000 SP...
  • Page 10: Errors And Faults

    10 minutes before reconnecting it. • The compressor may start up with a delay of 3 minutes, as it is provided with an internal protection against direct restart. spot cooling air conditioning unit PT 2000 SP...
  • Page 11: Maintenance

    11. Date: ..........12. Date: ..........Signature: ........... Signature: ..........Signature: ..........Signature: ..........13. Date: ..........14. Date: ..........15. Date: ..........16. Date: ..........Signature: ........... Signature: ..........Signature: ..........Signature: ..........spot cooling air conditioning unit PT 2000 SP...
  • Page 12 Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. spot cooling air conditioning unit PT 2000 SP...
  • Page 13 If you want to continue using the device: • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Transport and storage chapter. spot cooling air conditioning unit PT 2000 SP...
  • Page 14: Technical Annex

    Dimensions (length x width x 287 x 465 x 586 mm height) Condensation tank capacity Minimum distance to walls and other objects: top: 30 cm sides: 30 cm front: 30 cm rear: 80 cm Weight 25.5 kg spot cooling air conditioning unit PT 2000 SP...
  • Page 15 Circuit diagram spot cooling air conditioning unit PT 2000 SP...
  • Page 16 Overview and list of spare parts Note: The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. spot cooling air conditioning unit PT 2000 SP...
  • Page 17 Base of axial fan Wire buckle Filter tube Down fan motor Power cord and plug Condenser - out pipe Bracket of down fan motor Evaporator - out pipe Seat of motor bracket spot cooling air conditioning unit PT 2000 SP...
  • Page 18: Disposal

    The icon with the crossed-out waste bin on waste electrical or electronic equipment stipulates that this equipment We – Trotec GmbH – declare in sole responsibility that the must not be disposed of with the household waste at the end of product designated below was developed, constructed and its life.
  • Page 19 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
