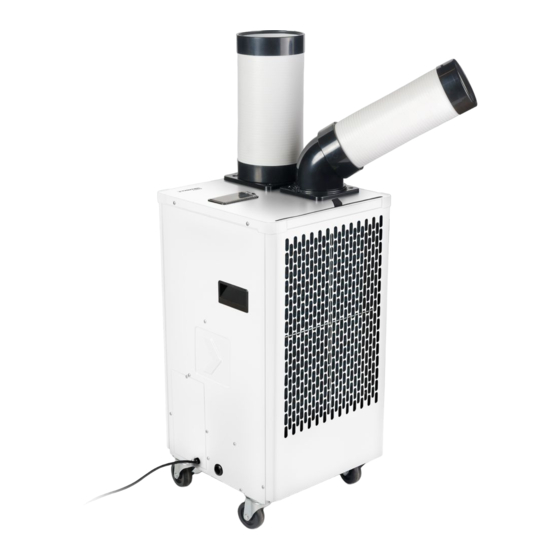

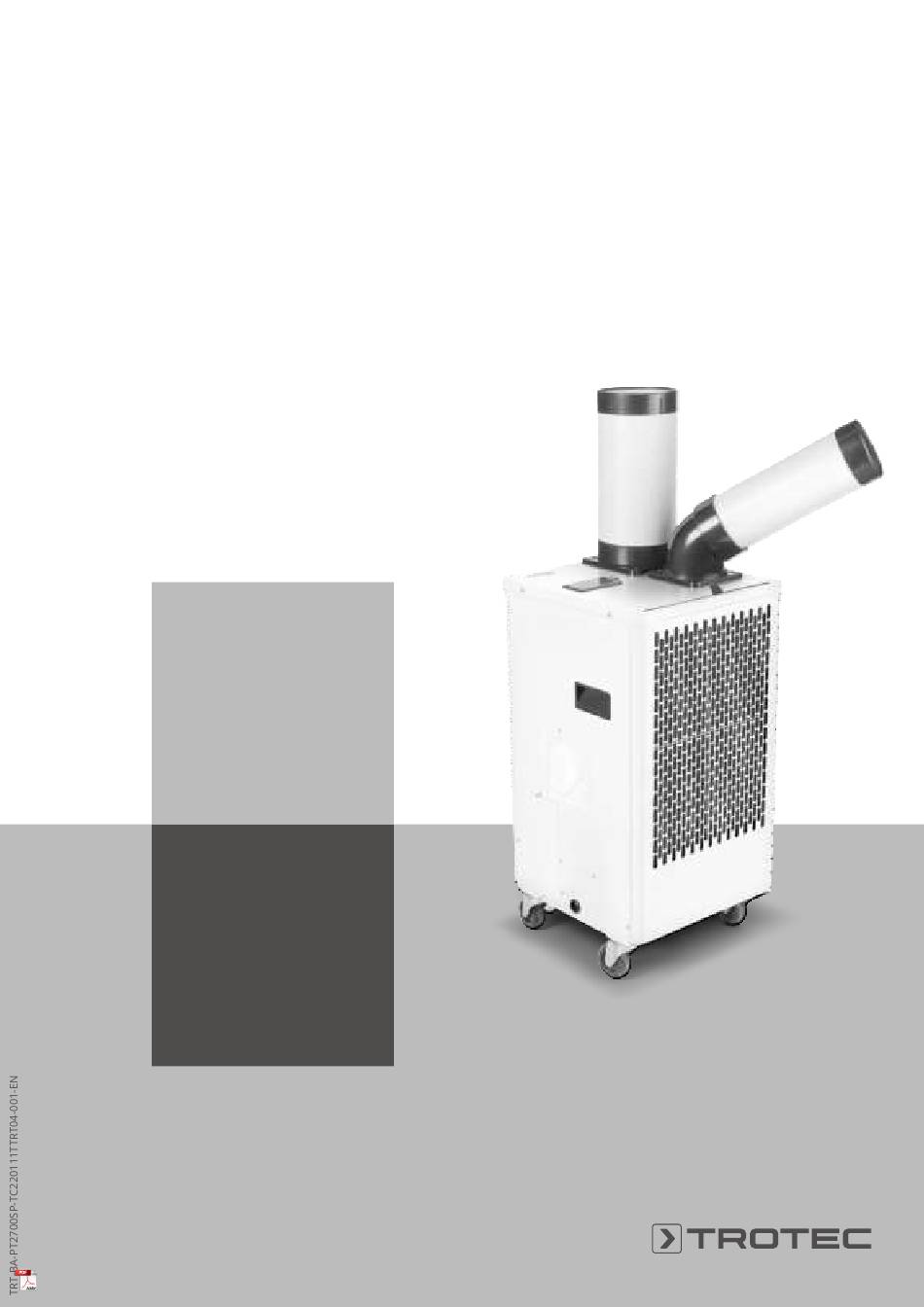

- Page 1 PT 2700 SP ORIGINAL INSTRUCTIONS SPOT COOLING AIR CONDITIONING UNIT...
-
Page 2: Table Of Contents
• Check accessories and connection parts for possible Information marked with this symbol indicates that the damage prior to every use of the device. Do not use any instructions must be observed. defective devices or device parts. spot cooling air conditioning unit PT 2700 SP... - Page 3 (e.g. open flames, an active gas appliance or an electric heater). • Please note that the refrigerant is odourless. • Only install the device in compliance with the national installation regulations. spot cooling air conditioning unit PT 2700 SP...
- Page 4 Remove the condensation tank and empty it. Make sure that the condensation tank is inserted correctly before switching the device back on. Follow the manual This symbol indicates that the operating manual must be observed. spot cooling air conditioning unit PT 2700 SP...
-
Page 5: Information About The Device
Do not leave the packaging lying around. Children may use it as a dangerous toy. Warning Risk of death due to suspended loads! Make sure that nobody is situated in the immediate proximity. spot cooling air conditioning unit PT 2700 SP... -
Page 6: Transport And Storage
Cable storage compartment with power cable • Store the device in an upright position where it is protected Condensation hose connection from dust and direct sunlight. Air inlet with air filter Cold air duct spot cooling air conditioning unit PT 2700 SP... -
Page 7: Assembly And Start-Up
Technical data condensate outlet inside the device (see figure). chapter. Operating the device with a condensation drain hose is also possible. spot cooling air conditioning unit PT 2700 SP... - Page 8 The cold air duct (9) can be adjusted by 360°. In addition, the cold air duct can be adjusted upwards and downwards by 150°. The cold air duct can be adjusted by 45°. 45° 150° 360° spot cooling air conditioning unit PT 2700 SP...
- Page 9 Make sure that the air filter is installed before switching the device on. 1. If the air filter (8) has not already been inserted, push the air filter (8) into the designated recess. Machine spot cooling air conditioning unit PT 2700 SP...
-
Page 10: Operation
1. Once you have completely installed the device as described in the Start-up chapter, you can switch it on. 2. Set the function selector switch (14) to fan speed 1 or fan speed 2. ð The device starts in spot cooling operation. spot cooling air conditioning unit PT 2700 SP... -
Page 11: Errors And Faults
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Check the on-site fusing. spot cooling air conditioning unit PT 2700 SP... -
Page 12: Maintenance
11. Date: ........12. Date: ........Signature: ........Signature: ........Signature: ........Signature: ........13. Date: ........14. Date: ........15. Date: ........16. Date: ........Signature: ........Signature: ........Signature: ........Signature: ........spot cooling air conditioning unit PT 2700 SP... - Page 13 Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth. spot cooling air conditioning unit PT 2700 SP...
- Page 14 If you want to continue using the device: • Reconnect the device to the mains. If you do not intend to use the device for a considerable time: • Store the device according to the Transport and storage chapter. spot cooling air conditioning unit PT 2700 SP...
-
Page 15: Technical Annex
Dimensions (length x width x 405 x 430 x 855 mm height) Condensation tank capacity Minimum distance to walls and other objects: top: 90 cm sides: 30 cm front: 30 cm rear: 30 cm Weight 42 kg spot cooling air conditioning unit PT 2700 SP... - Page 16 Circuit diagram SWITCH MOTOR CAPACITOR H-FAN L-FAN XH-4 LIGHT 30A RELAY BOARD XH-2 WATER WATER SWITCH COMPRESSOR COMP. CAPACITOR YE/GN spot cooling air conditioning unit PT 2700 SP...
- Page 17 Overview and list of spare parts Note: The position numbers of the spare parts differ from those describing the positions of other parts mentioned in this operating manual. spot cooling air conditioning unit PT 2700 SP...
- Page 18 Tube 1 fix base Motor Electrical control box cover plate Tube head Lower air duct front plate Fix head Tube 2 Wind mill 2 Power cord and plug Tube 2 fix base Hot air diffuser spot cooling air conditioning unit PT 2700 SP...
-
Page 19: Disposal
The icon with the crossed-out waste bin on waste electrical or electronic equipment stipulates that this equipment We – Trotec GmbH – declare in sole responsibility that the must not be disposed of with the household waste at the end of product designated below was developed, constructed and its life. - Page 20 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
