Summary of Contents for Trotec PAC 3500

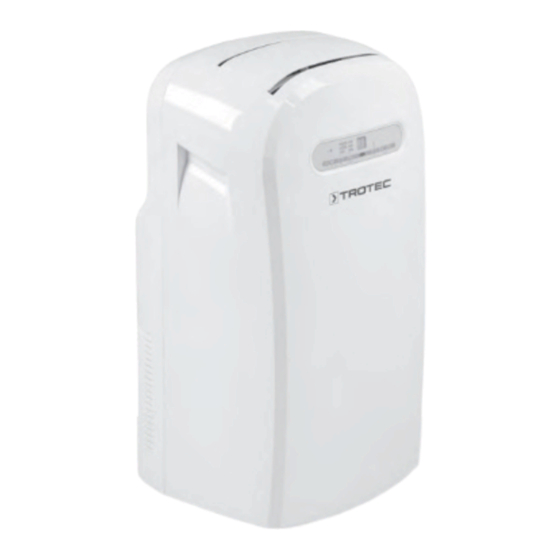

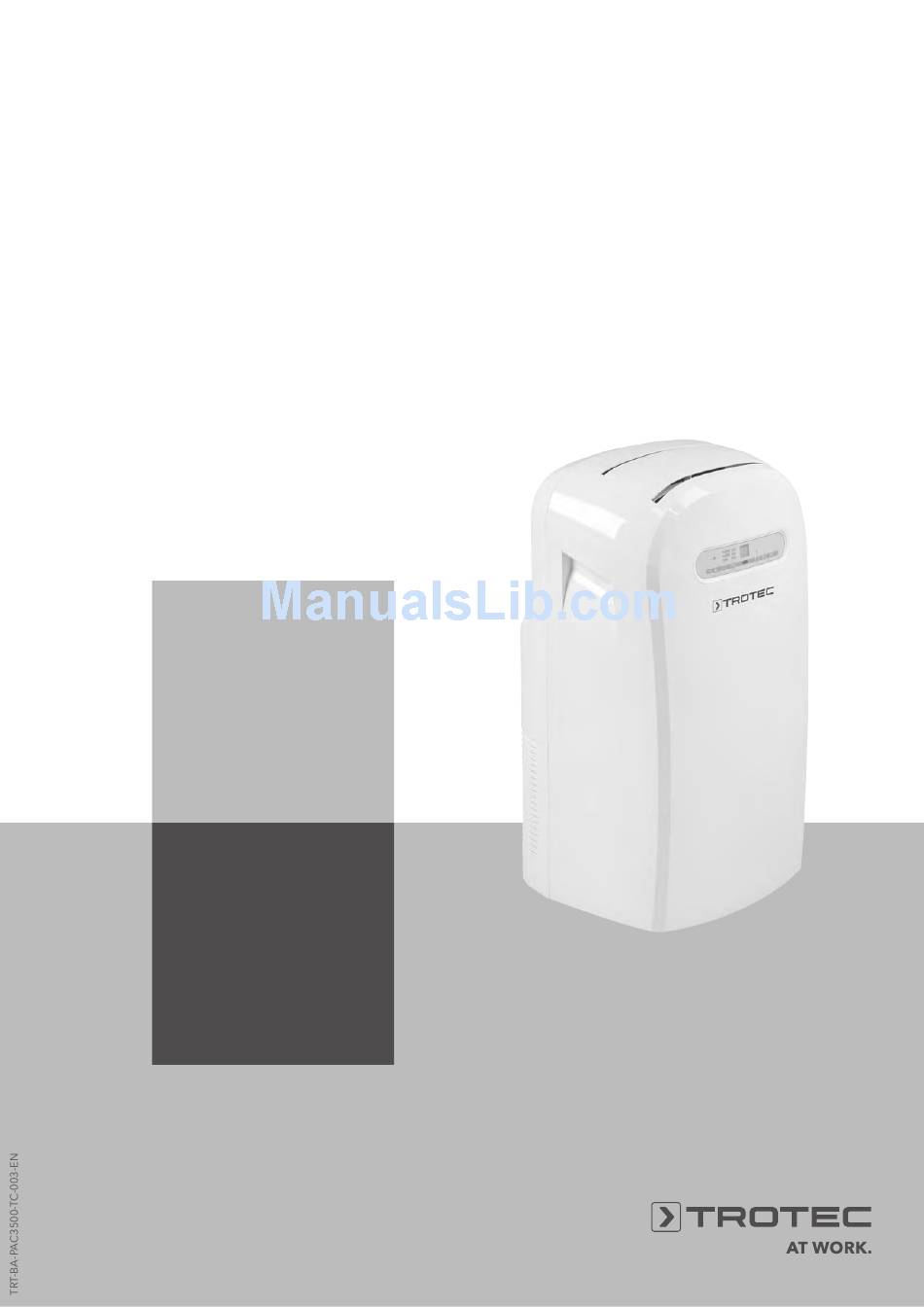

- Page 1 PAC 3500 OPERATING MANUAL LOCAL AIR CONDITIONER...
-
Page 3: Table Of Contents
Declaration of conformity ............15 The scope of delivery may vary from product images. This document was created with all due care. Trotec accepts no Notes regarding the operating manual liability whatsoever for possible mistakes or omissions. © Trotec... -
Page 4: Information About The Device
A cooling agent sees to the transport of the absorbed warmth within the closed refrigerant circuit. Operating element Recessed handle Air inlet with air filter Hose connector for condensate Condensation drain Mains power cable Exhaust air connection Control panel Air flap Operating Manual – Local Air Conditioner PAC 3500... -
Page 5: Technical Data
Minimum distance to walls or other objects Top: 50 cm Rear: 50 cm Side: 50 cm Front: 50 cm Sound pressure level at a distance of 3 m max. 53 dB (A) Wiring diagram Operating Manual – Local Air Conditioner PAC 3500... -
Page 6: Safety
When the device is not being used, observe the following storage conditions: • dry, • protected from dust and direct sunlight, • with a plastic cover to protect it from invasive dust, if necessary. Operating Manual – Local Air Conditioner PAC 3500... -
Page 7: Operation
• Do not create tripping hazards when laying the power cable or other electric cables. • Make sure that no curtains or other objects interfere with the air flow. • Ensure that extension cords are completely unrolled. Operating Manual – Local Air Conditioner PAC 3500... - Page 8 8. If required, adjust the target temperature by use of the keys 21 and 22. Note After every switch-off or any maintenance or repair work wait for at least 3 minutes before switching the device on again. Operating Manual – Local Air Conditioner PAC 3500...
-
Page 9: Control Panel
To set the fan's rotational speed. Only enabled in cooling and ventilation mode. Timer button To activate automatic switch-on/-off. Arrow key To increase the target temperature or timer run-time. Arrow key To decrease the target temperature or timer run-time. Operating Manual – Local Air Conditioner PAC 3500... - Page 10 – automatic switch-off upon expiry of a preset number of hours. The number of hours can be between 1 and 24. Ø 0.5‘‘ 1. Unscrew the protective cap at the hose connector (3) and remove the stopper. Operating Manual – Local Air Conditioner PAC 3500...
- Page 11 – The display indicates the set number of hours. 4. Wait for approx. 15 seconds. – The Timer indication (17) is continually lit. – The display changes back to the normal indication. – Automatic switch-off is now set. Operating Manual – Local Air Conditioner PAC 3500...
- Page 12 • Check whether the device is standing upright and on an even surface. • Check the stopper of the condensate drain for proper fit or damage. Plug the stopper in correctly or replace it as appropriate. Operating Manual – Local Air Conditioner PAC 3500...
-
Page 13: Maintenance
9. Date: .......... 10. Date:........11. Date: ........12. Date: ........Signature:........Signature: ........Signature:........Signature: ........13. Date: ........14. Date:........15. Date: ........16. Date: ........Signature:........Signature: ........Signature:........Signature: ........Operating Manual – Local Air Conditioner PAC 3500... - Page 14 4. Put the air filter back in. Refrigerant circuit • The entire refrigerant circuit is a maintenance-free, hermetically sealed system and may only be maintained or repaired by specialist companies for cooling and air-conditioning or by Trotec. Operating Manual – Local Air Conditioner PAC 3500...
- Page 15 Before reinserting the air filter, ensure that it is dry and is not damaged! Read the chapter Maintenance intervals and replace the air filter in due time! Operating Manual – Local Air Conditioner PAC 3500...
- Page 16 (LS-53D1-4P) discharge grille cover fan casing fan-air deflector (a) remote control ass'y fixture fan-air deflector (b) capacitor (2.5 μF/450 V)(for fan motor(19)) Operating Manual – Local Air Conditioner PAC 3500...
-
Page 17: Disposal
Directive compatibility. 2002/96/EC of the European Parliament and Council of 27th Herewith, we declare that the local air conditioner PAC 3500 was January 2003 concerning old electrical and electronic equipment. developed, constructed and produced in compliance with the At the end of its life, please dispose of this instrument in a manner named EC directives. - Page 20 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info @ trotec.com www.trotec.com...
