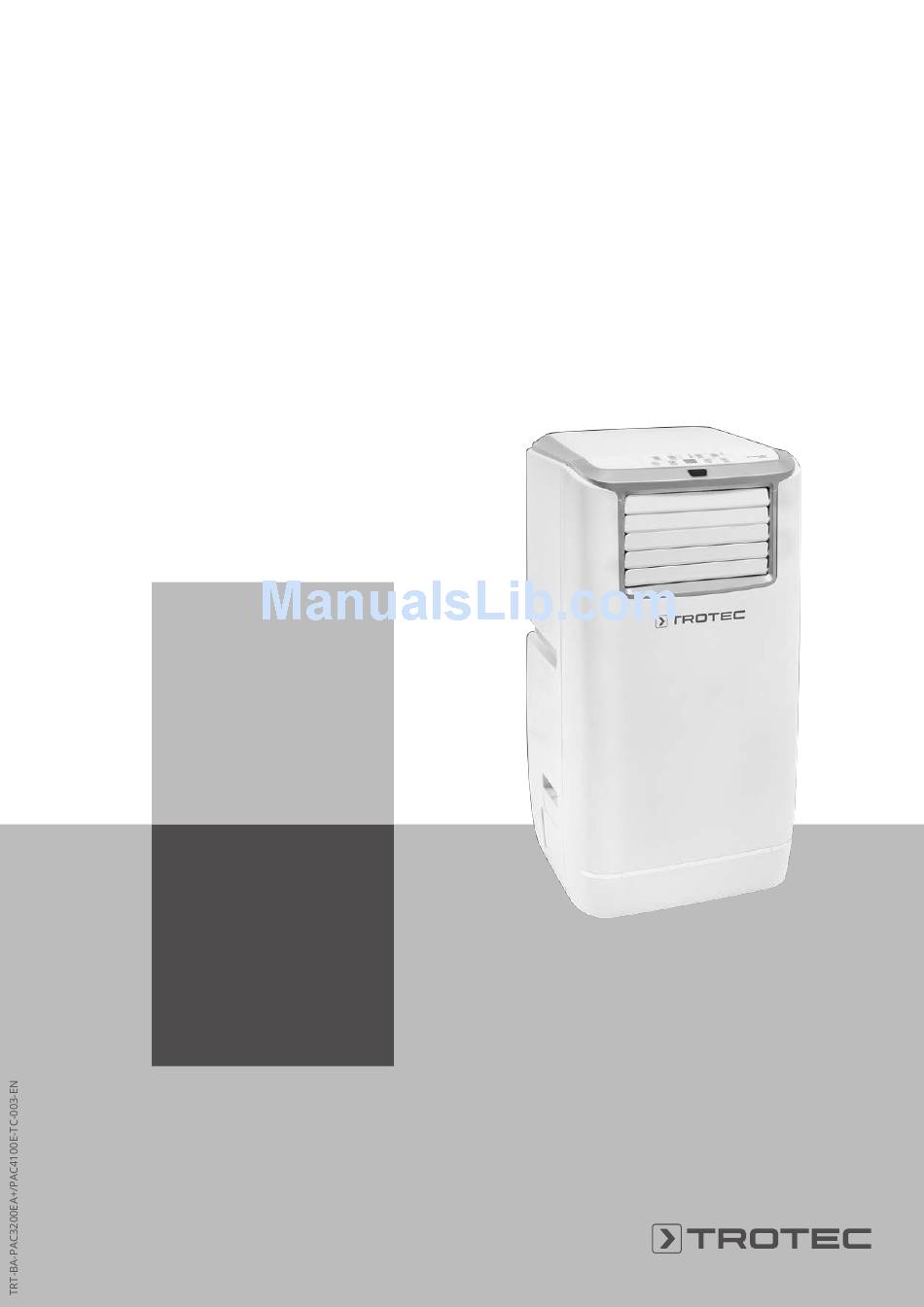

- Page 1 PAC 3200 E A + / PAC 4100 E OPERATING MANUAL LOCAL AIR CONDITIONER...
-
Page 2: Table Of Contents
EU declaration of conformity via the following link: Notes regarding the operating manual......... 1 Safety .................. 1 Information about the device.......... 3 PAC 3200 E A+ Transport and storage............ 4 Assembly and installation............. 5 https://hub.trotec.com/?id=42044 Operation ................ 7 Errors and faults.............. 11 PAC 4100 E Maintenance ................ 12 Technical annex.............. 15 Disposal ................ 15 https://hub.trotec.com/?id=42045... - Page 3 Trotec. • Do not under any circumstances use the device if you detect damages on the mains plug or power cable.
-
Page 4: Information About The Device
Residual risks Information about the device Warning of electrical voltage Device description Work on the electrical components must only be The device serves the purpose of cooling the room air. It further carried out by an authorised specialist company! filters and dehumidifies the air thus creating an agreeable room Warning of electrical voltage climate. -
Page 5: Transport And Storage
Device depiction Designation Water funnel and filling level indication for energy saving Air outlet with ventilation flaps Remote control receiver Transport handle Transport and storage Note If you store or transport the device improperly, the device may be damaged. Note the information regarding transport and storage of the device. -
Page 6: Assembly And Installation
• Do not create tripping hazards when laying the power Assembly and installation cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges. Scope of delivery • Make sure that extension cables are completely unrolled. •... - Page 7 Discharging exhaust air • The exhaust air coming from the device contains waste heat from the room to be cooled. For this reason it is recommended to discharge the exhaust air to the outside. • The end of the exhaust air hose can be fed through the open window.
-
Page 8: Operation
Designation Meaning Operation DOWN button • Avoid open doors and windows. (decrease value) Setting the target temperature for Operating elements cooling between 18 °C and 32 °C UP button (increase value) 13 14 18 17 19 20 Segment display Display of current room temperature when in operation Display of target temperature while setting it... - Page 9 Cooling Info If the device is operated in a very humid environment, In cooling mode the room will be cooled down to a certain the accumulating condensate must be discharged at preselected temperature. regular intervals (see chapter Condensate discharge). Cooling commences when the ambient temperature equals the If you use the device for an extended period of time or you don't set temperature + 3 °C.
- Page 10 Automatic switch-on Energy saving ü The device is switched off. The device comes with an energy efficiency boosting function. 1. Press the TIMER button (14) until the desired number of The energy efficiency can be enhanced by filling water into the hours is shown on the segment display (24).
- Page 11 Remote control Shutdown All settings of the device can also be made using the remote Warning of electrical voltage control included in the scope of delivery. Do not touch the mains plug with wet or damp hands. • Switch off the device. •...
-
Page 12: Errors And Faults
• Wait for 10 minutes before restarting the device. If the device is not starting, have the electrics checked by a • Check the charging status of the batteries and change specialist company or by Trotec. them if required. The device works with reduced or no cooling capacity: •... -
Page 13: Maintenance
Maintenance intervals Maintenance Maintenance and care interval before every as needed at least every at least every at least every at least start-up 2 weeks 4 weeks 6 months annually Check air inlets and outlets for dirt and foreign objects and clean if necessary Clean the exterior Visually check the inside of the device for dirt... - Page 14 1. Remove the air filters from the device. companies or by Trotec. Cleaning the housing Clean the housing with a soft, damp and lint-free cloth. Ensure that no moisture enters the housing.
- Page 15 Condensate discharge (manual draining) Activities required after maintenance In cooling and dehumidification mode condensate is formed, If you want to continue using the device: which is mostly discharged via the exhaust air. • Leave the device to rest for 12 to 24 hours, so the refrigerant can accumulate within the compressor.
-
Page 16: Technical Annex
Technical data Technical annex Model PAC 3200 E A+ PAC 4100 E Cooling capacity 3.2 kW 4.1 kW Dehumidification performance 1.16 l/h 1.6 l/h Operating temperature 18 °C to 35 °C 18 °C to 35 °C Temperature setting range 18 °C to 32 °C 18 °C to 32 °C Max. - Page 18 Trotec GmbH & Co. KG Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
