4 Description

VIBGUARD IIoT is a stationary Condition Monitoring System (CMS) with the following features:
Modular design
Synchronous signal acquisition on all analog measuring channels
Network-ready
The CMS is used for vibration monitoring and early damage detection on all machines with rotating components.
The system records the following quantities:
Housing vibration
Bearing condition
Rotational speed
Process variables as current or voltage level or as digital input signals
Temperature, oil quality, alignment condition, load, etc.
The system is primarily comprised of the VIBGUARD IIoT system module with the power supply in the protective
housing and the sensors with cables. An expansion by several CMS is possible. The connection to computer or net-
work is done via Ethernet (TCP/IP).

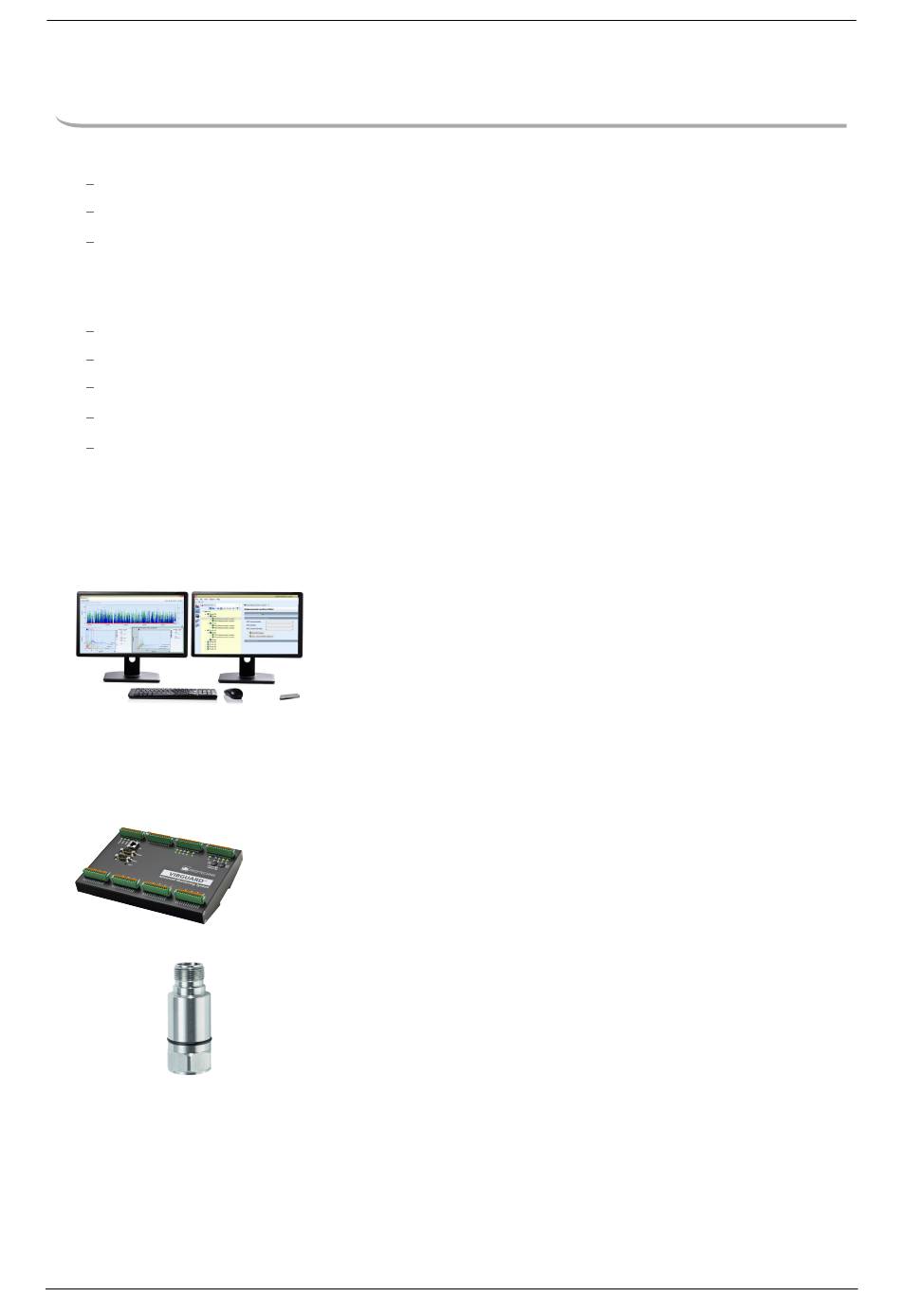

VIBGUARD IIoT
Network capable PC or notebook
The entire monitoring system is configured on the PC using software
(OMNITREND Center). Measurement tasks are created and transferred as
a measuring cycle to the VIBGUARD IIoT.
In contrast, the PC can receive the measurement data from VIBGUARD
IIoT, process it and display it graphically for evaluation. With regard to sen-
ding the measurement data for evaluation, using the Internet via a local
Internet Service Provider is recommended.
VIBGUARD IIoT
The system's basic unit checks and controls measurements; processes and
saves measurement data, conducts preliminary diagnostics, supplies the
sensors and outputs alarm messages. It also features interfaces for exter-
nal measuring instruments.
Sensor
Converts vibration, pulse, spe¬ed, temperature etc into electrical values.
