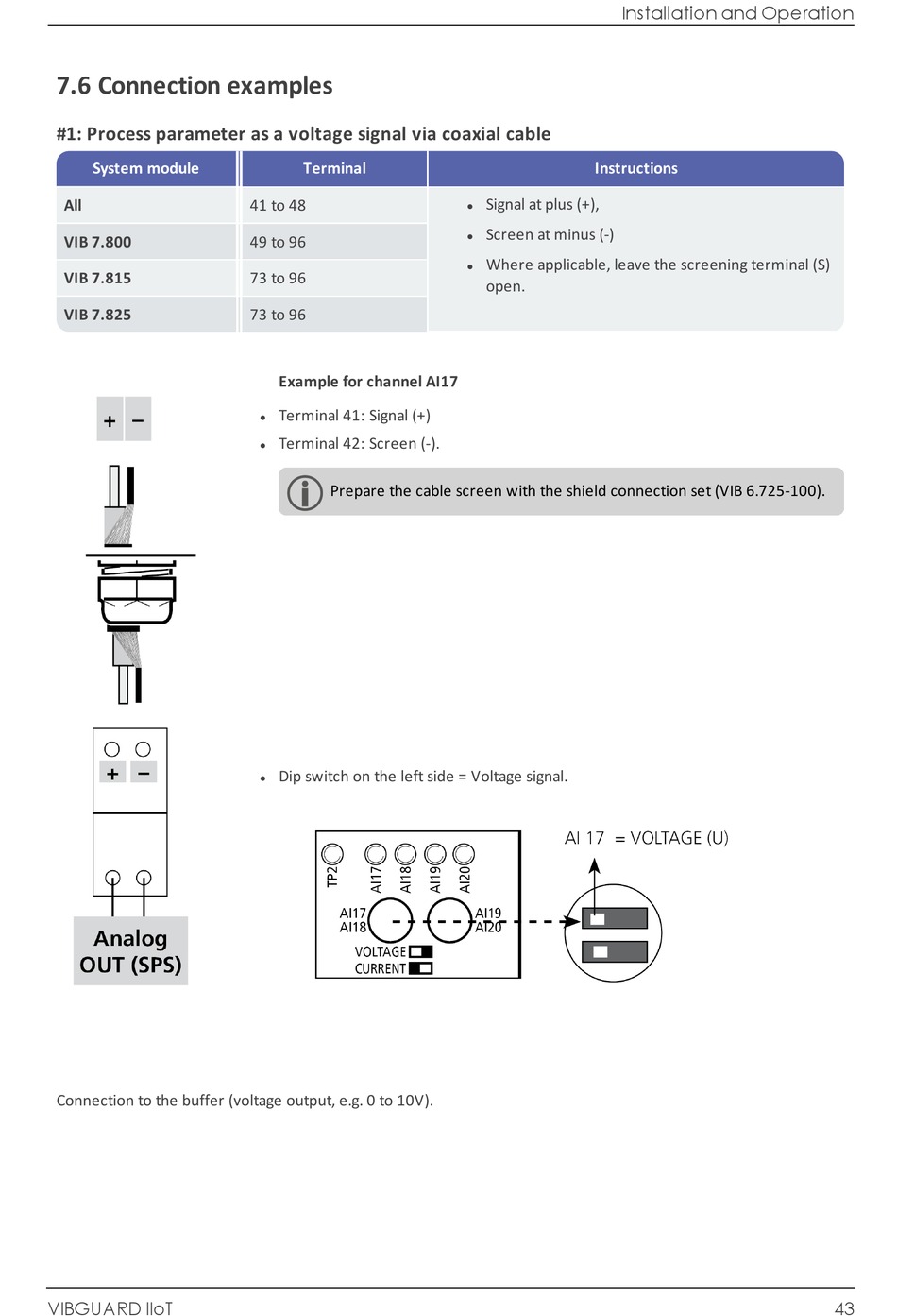

7.6 Connection examples
#1: Process parameter as a voltage signal via coaxial cable
System module
All
VIB 7.800
VIB 7.815
VIB 7.825
Connection to the buffer (voltage output, e.g. 0 to 10V).
VIBGUARD IIoT
Terminal
41 to 48
49 to 96
73 to 96
73 to 96
Example for channel AI17
Terminal 41: Signal (+)
l
Terminal 42: Screen (-).
l
Prepare the cable screen with the shield connection set (VIB 6.725-100).
Dip switch on the left side = Voltage signal.
l
Installation and Operation
Instructions
Signal at plus (+),
l
Screen at minus (-)
l
Where applicable, leave the screening terminal (S)
l
open.
43
