ASSEMBLY INSTRUCTIONS
BELLA
PUPPY AND GARDEN
PUPPY AND GARDEN

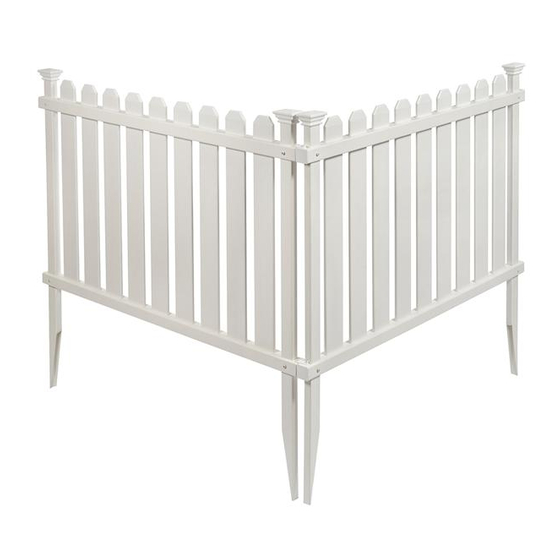

FENCE KIT 2-PACK
FENCE KIT 2-PA
(41" W X 30" H)
Approximate assembly time
Want to see a video on how to
assemble this product?
Scan the QR code
WWW.ZIPPITY-OUTDOOR.COM
WWW.ZIPPITY-OUTDOOR.COM
CK
60 MIN
ASSEMBLY
INSTRUCTIONS
ZP19064
ZP19064
1
VER. 101921
Advertisement
Related Manuals for Zippity BELLA
Summary of Contents for Zippity BELLA
- Page 1 ZP19064 ASSEMBLY INSTRUCTIONS BELLA ASSEMBLY INSTRUCTIONS PUPPY AND GARDEN PUPPY AND GARDEN ZP19064 FENCE KIT 2-PA FENCE KIT 2-PACK (41” W X 30” H) 60 MIN Approximate assembly time Want to see a video on how to assemble this product? Scan the QR code WWW.ZIPPITY-OUTDOOR.COM...
- Page 2 If you experience any further trouble with your product, please contact our customer service department. parts.nychbrands.com support@zippity-outdoor.com 704-892-5222 877-234-6196 Customer service agents are available to take calls weekdays from 8am- 5pm EST. If you call outside of business hours, please leave a voicemail.
- Page 3 ZP19064 ASSEMBLY INSTRUCTIONS 41 in 1 1/8 in 30 in 26 1/2 in 2 in 12 in WWW.ZIPPITY-OUTDOOR.COM...
- Page 4 3/8” x 2¾” x 27” Post (4) ⅞” x 1½” x 42” Joiner Clip (4) ¾" Self-Drilling Bottom Rail (2) Top Rail (2) Stainless Steel Screw (24) 1½” x 1½” x 40 ⅞” 1½” x 1½” x 40 ⅞” WWW.ZIPPITY-OUTDOOR.COM...
- Page 5 Continue sliding the posts until the pre- drilled holes in the posts and the rails align. Drive (8) total ¾” Self-Drilling Stainless Steel Screws into the holes in the rails. Align WWW.ZIPPITY-OUTDOOR.COM...
- Page 6 Note: It may take some light force to insert the pickets through the routed holes. ASSEMBLE THE SECOND PANEL STEP 4: STEP 4.1 Repeat Steps 2 and 3 to assemble the second fence panel. WWW.ZIPPITY-OUTDOOR.COM...
- Page 7 6” or 7” of the ground with a claw hammer as illustrated. Add water to the loosened soil. Use a block of wood to protect the top of the post, and gently hammer Block of wood the post into the ground. WWW.ZIPPITY-OUTDOOR.COM...
- Page 8 Use a 1¾” diameter auger bit (commonly used for planting tulips) as illustrated ($15-$20 on Amazon.com). Drill a hole about 12” to 16” deep at the desired location, and fill the holes with water as illustrated. Push the fence posts into the holes. WWW.ZIPPITY-OUTDOOR.COM...
- Page 9 This hole should be approximately 8” in diameter and 16” deep. 8” diameter 16” deep. STEP 5.6 Level the panel as necessary, backfill excavated dirt, and tamp down. Level WWW.ZIPPITY-OUTDOOR.COM...
- Page 10 STEP 6: STEP 6.1 Straight Line Application: Fasten the panels together with (2) Joiner Clips using (4) ¾” self-drilling stainless steel screws. Corner Application: Fasten the panels together with (2) Joiner Clips using (4) ¾” self-drilling stainless steel screws. WWW.ZIPPITY-OUTDOOR.COM...
- Page 11 ZP19064 ASSEMBLY INSTRUCTIONS INSTALL POST CAPS STEP 7: STEP 7.1 Push the Post Caps down over the posts to lock them into place. WWW.ZIPPITY-OUTDOOR.COM...
- Page 12 ZP19064 ASSEMBLY INSTRUCTIONS 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 877-234-6196 WWW.ZIPPITY-OUTDOOR.COM WWW.ZIPPITY-OUTDOOR.COM...
