This fence can easily be trimmed horizontally to fit your
custom space. Use a fine-toothed circular saw or hack
saw.
60 MIN
6935 Reames Rd. Ste. K. Charlotte, NC 28216
@
support@zippity-outdoor.com
704-892-5222 / 877-234-6196
zippity-outdoor.com
Ver. 072320

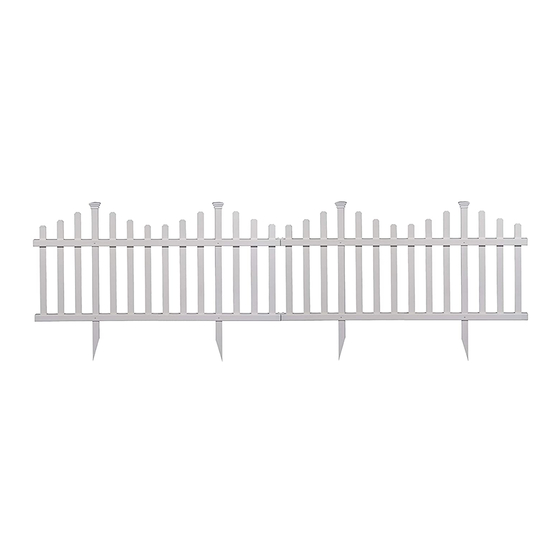

MADISON VINYL PICKET FENCE
approximate assembly
time
ASSEMBLY
INSTRUCTIONS
14 1/8 in
24 in
40 in
10 in
KIT 2-PACK
Want to see a video on how to
assemble this product? Scan
www.zippity-outdoor.com
56 1/2 in
14 1/8 in
2 1/2 in
8 1/2 in
16 1/2 in
2 in
28 1/4 in
the code below!
30 in
1
Advertisement
Table of Contents
Related Manuals for Zippity ZP19001
Summary of Contents for Zippity ZP19001
- Page 1 MADISON VINYL PICKET FENCE KIT 2-PACK 60 MIN approximate assembly time Want to see a video on how to 6935 Reames Rd. Ste. K. Charlotte, NC 28216 assemble this product? Scan the code below! support@zippity-outdoor.com 704-892-5222 / 877-234-6196 zippity-outdoor.com Ver. 072320 www.zippity-outdoor.com...
- Page 2 To help you quickly and accurately, please have reference item number ZP19001 found on the next page. It is helpful if you can provide the batch lot which is a stamped number on the end of the box.
- Page 3 Bottom Rail (2) 1½” x 1½” x 56½” 1½” x 1½” x 56½” 0.75” Steel Screw (24) Picket #1 (8) Picket #2 (8) Picket #3 (8) ¼” x 1¼” x 25¼” ¼” x 1¼” x 23” ¼” x 1¼” x 22” www.zippity-outdoor.com...
- Page 4 ç í É W = ^ ä á Öå = e ç ä É ë Note: Underside of bottom rail is blank compared to top rail which has holes on both sides. Note: Orient the bottom of posts as illustrated. www.zippity-outdoor.com...
- Page 5 STEP 4: INSTALL FENCE INTO GROUND Move the fence to its destination, Attempt to push the product into STEP 4.1 STEP 4.2 and identify the location of the the ground as illustrated. posts. www.zippity-outdoor.com...
- Page 6 Option 3: loosen top 4” of the ground with a claw hammer as illustrated. Block of wood Push the post caps STEP 4.5 down over the tops of the posts as illustrated. The post caps will lock into place. www.zippity-outdoor.com...
- Page 7 STEP 5.1 them into place on the top of the rail and the bottom of the rail as illustrated. Screws are self-drilling. Bottom rail Top rail Fasten the opposite end of the STEP 5.2 joiner clip as illustrated. Bottom rail www.zippity-outdoor.com...
- Page 8 45 degree application 6935 Reames Rd. Ste. K. Charlotte, NC 28216 support@zippity-outdoor.com 704-892-5222 / 877-234-6196 zippity-outdoor.com www.zippity-outdoor.com...
