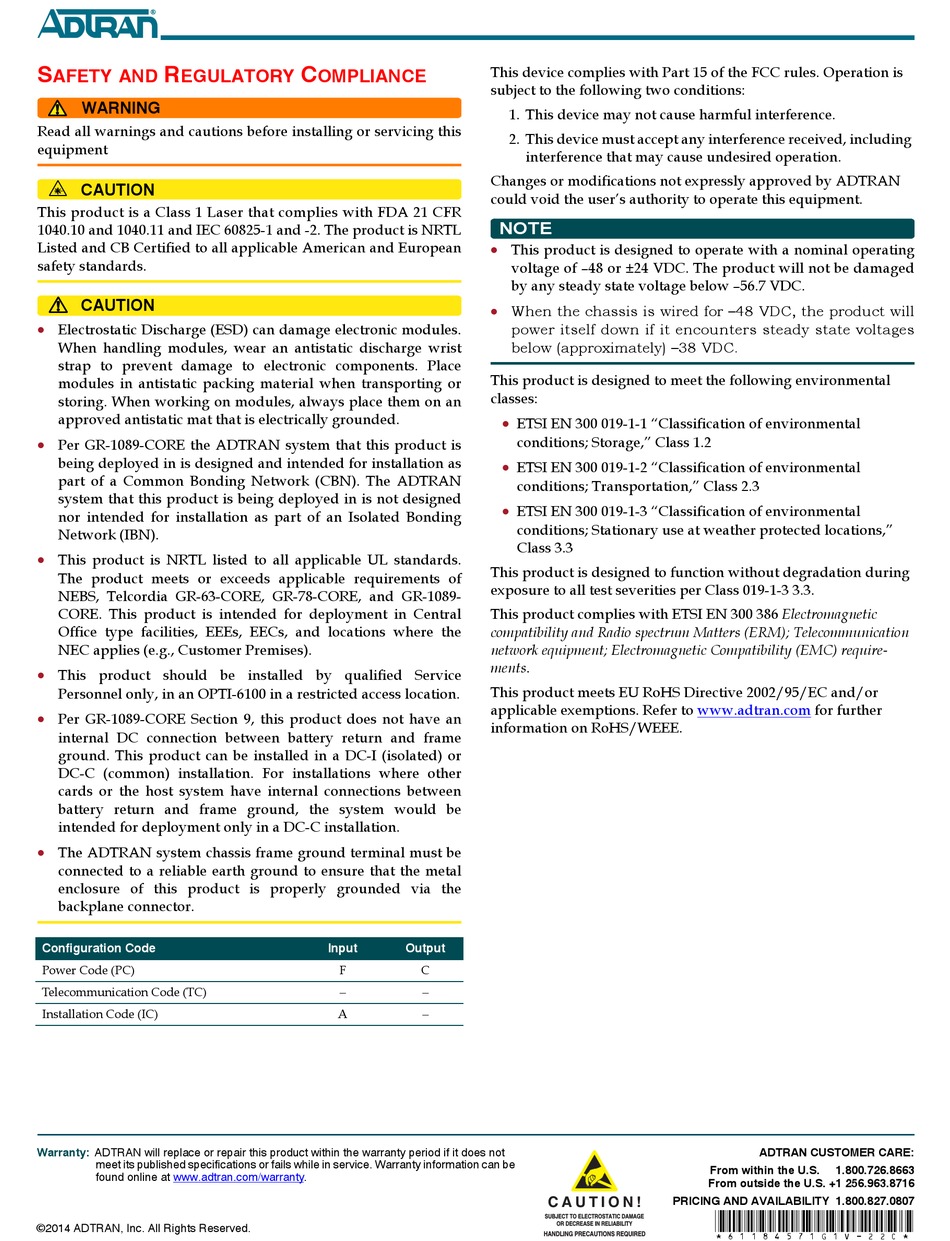

ADTRAN OC-3 Quick Start Manual page 4

S R
AFETY AND EGULATORY
!
WARNING
Read all warnings and cautions before installing or servicing this
equipment
C
CAUTION
This product is a Class 1 Laser that complies with FDA 21 CFR
1040.10 and 1040.11 and IEC 60825-1 and -2. The product is NRTL
Listed and CB Certified to all applicable American and European
safety standards.
!
CAUTION

Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist
strap to prevent damage to electronic components. Place
modules in antistatic packing material when transporting or
storing. When working on modules, always place them on an
approved antistatic mat that is electrically grounded.

Per GR-1089-CORE the ADTRAN system that this product is
being deployed in is designed and intended for installation as
part of a Common Bonding Network (CBN). The ADTRAN
system that this product is being deployed in is not designed
nor intended for installation as part of an Isolated Bonding
Network (IBN).

This product is NRTL listed to all applicable UL standards.
The product meets or exceeds applicable requirements of
NEBS, Telcordia GR-63-CORE, GR-78-CORE, and GR-1089-
CORE. This product is intended for deployment in Central
Office type facilities, EEEs, EECs, and locations where the
NEC applies (e.g., Customer Premises).

This product should be installed by qualified Service
Personnel only, in an OPTI-6100 in a restricted access location.

Per GR-1089-CORE Section 9, this product does not have an
internal DC connection between battery return and frame
ground. This product can be installed in a DC-I (isolated) or
DC-C (common) installation. For installations where other
cards or the host system have internal connections between
battery return and frame ground, the system would be
intended for deployment only in a DC-C installation.

The ADTRAN system chassis frame ground terminal must be
connected to a reliable earth ground to ensure that the metal
enclosure of this product is properly grounded via the
backplane connector.
Configuration Code
Power Code (PC)
Telecommunication Code (TC)
Installation Code (IC)
Warranty: ADTRAN will replace or repair this product within the warranty period if it does not
meet its published specifications or fails while in service. Warranty information can be
found online at www.adtran.com/warranty.
©2014 ADTRAN, Inc. All Rights Reserved.
C
OMPLIANCE
Input Output
F C
– –
A –
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by ADTRAN
could void the user's authority to operate this equipment.
NOTE

This product is designed to operate with a nominal operating
voltage of –48 or ±24 VDC. The product will not be damaged
by any steady state voltage below –56.7 VDC.

When the chassis is wired for –48 VDC, the product will
power itself down if it encounters steady state voltages
below (approximately) –38 VDC.
This product is designed to meet the following environmental
classes:

ETSI EN 300 019-1-1 "Classification of environmental
conditions; Storage," Class 1.2

ETSI EN 300 019-1-2 "Classification of environmental
conditions; Transportation," Class 2.3

ETSI EN 300 019-1-3 "Classification of environmental
conditions; Stationary use at weather protected locations,"
Class 3.3
This product is designed to function without degradation during
exposure to all test severities per Class 019-1-3 3.3.
This product complies with ETSI EN 300 386 Electromagnetic
compatibility and Radio spectrum Matters (ERM); Telecommunication
network equipment; Electromagnetic Compatibility (EMC) require-
ments.
This product meets EU RoHS Directive 2002/95/EC and/or
applicable exemptions. Refer to
information on RoHS/WEEE.
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY
HANDLING PRECAUTIONS REQUIRED
www.adtran.com for further
ADTRAN CUSTOMER CARE:
From within the U.S. 1.800.726.8663
From outside the U.S. +1 256.963.8716
PRICING AND AVAILABILITY 1.800.827.0807
