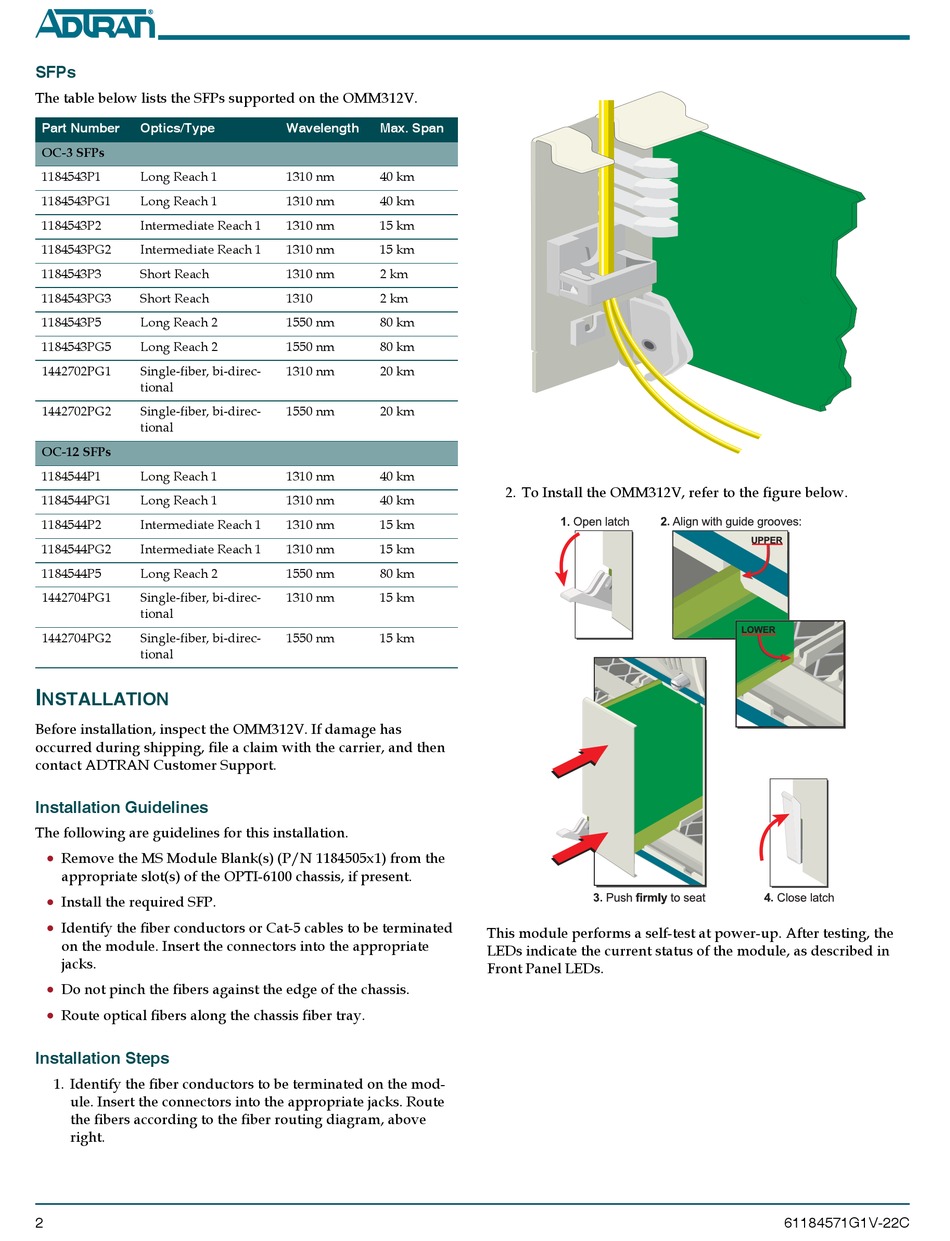

ADTRAN OC-3 Quick Start Manual page 2

SFPs
The table below lists the SFPs supported on the OMM312V.
Part Number Optics/Type
OC-3 SFPs
1184543P1 Long Reach 1
1184543PG1 Long Reach 1
1184543P2 Intermediate Reach 1
1184543PG2 Intermediate Reach 1
1184543P3 Short Reach
1184543PG3 Short Reach
1184543P5 Long Reach 2
1184543PG5 Long Reach 2
1442702PG1 Single‐fiber, bi‐direc‐
tional
1442702PG2 Single‐fiber, bi‐direc‐
tional
OC-12 SFPs
1184544P1 Long Reach 1
1184544PG1 Long Reach 1
1184544P2 Intermediate Reach 1
1184544PG2 Intermediate Reach 1
1184544P5 Long Reach 2
1442704PG1 Single‐fiber, bi‐direc‐
tional
1442704PG2 Single‐fiber, bi‐direc‐
tional
I
NSTALLATION
Before installation, inspect the OMM312V. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support.
Installation Guidelines
The following are guidelines for this installation.

Remove the MS Module Blank(s) (P/N 1184505x1) from the
appropriate slot(s) of the OPTI-6100 chassis, if present.

Install the required SFP.

Identify the fiber conductors or Cat-5 cables to be terminated
on the module. Insert the connectors into the appropriate
jacks.

Do not pinch the fibers against the edge of the chassis.

Route optical fibers along the chassis fiber tray.
Installation Steps
1. Identify the fiber conductors to be terminated on the mod-
ule. Insert the connectors into the appropriate jacks. Route
the fibers according to the fiber routing diagram, above
right.
2
Wavelength Max. Span
1310 nm 40 km
1310 nm 40 km
1310 nm 15 km
1310 nm 15 km
1310 nm 2 km
1310 2 km
1550 nm 80 km
1550 nm 80 km
1310 nm 20 km
1550 nm 20 km
1310 nm 40 km
1310 nm 40 km
1310 nm 15 km
1310 nm 15 km
1550 nm 80 km
1310 nm 15 km
1550 nm 15 km
2. To Install the OMM312V, refer to the figure below.
This module performs a self-test at power-up. After testing, the
LEDs indicate the current status of the module, as described in
Front Panel LEDs.
UPPER
LOWER
61184571G1V-22C
