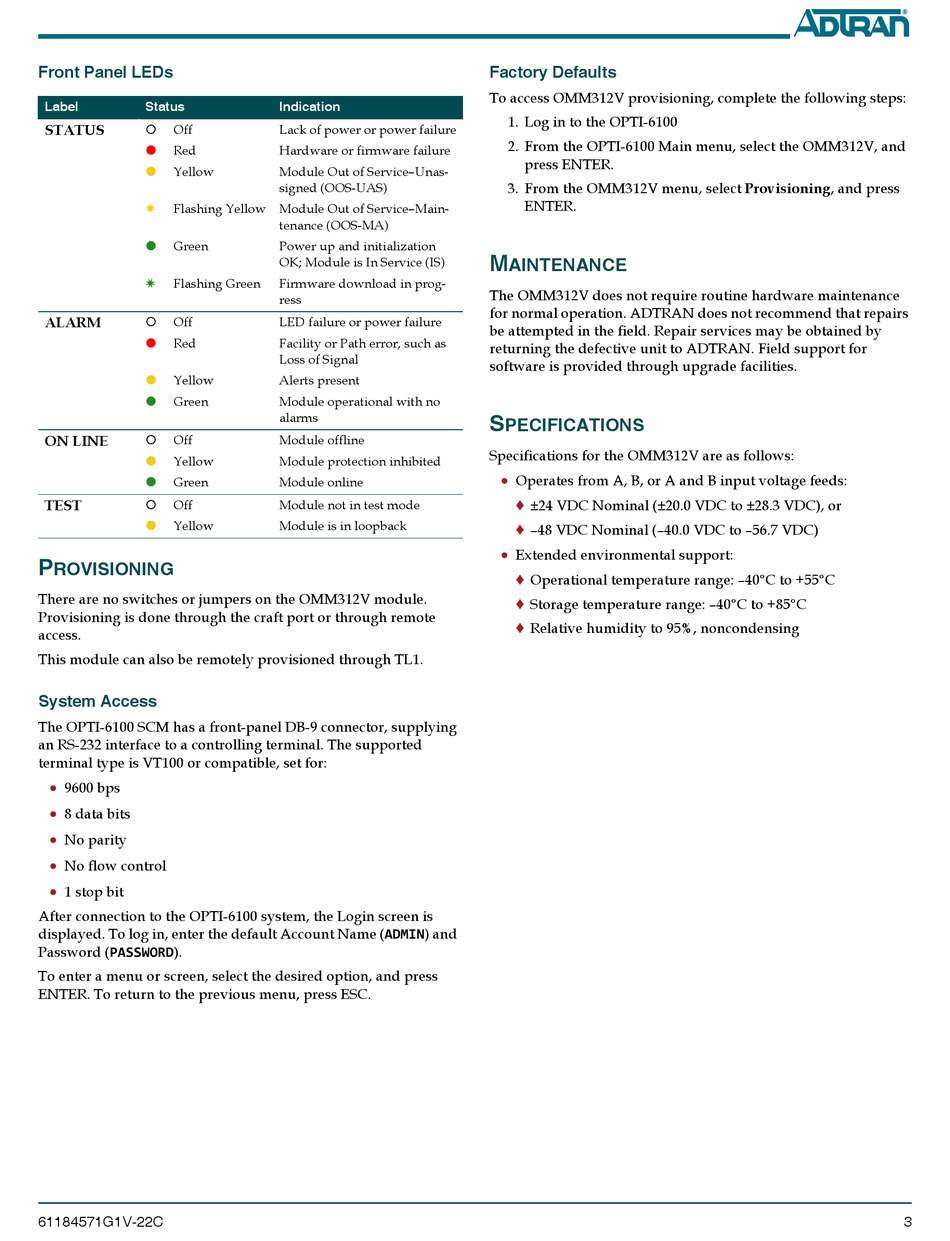

ADTRAN OC-3 Quick Start Manual page 3

Front Panel LEDs
Label Status
STATUS
Off

Red

Yellow

2 Flashing Yellow
Green

2 Flashing Green
ALARM Off

Red

Yellow

Green

ON LINE Off

Yellow

Green

TEST
Off

Yellow

P
ROVISIONING
There are no switches or jumpers on the OMM312V module.
Provisioning is done through the craft port or through remote
access.
This module can also be remotely provisioned through TL1.
System Access
The OPTI-6100 SCM has a front-panel DB-9 connector, supplying
an RS-232 interface to a controlling terminal. The supported
terminal type is VT100 or compatible, set for:

9600 bps

8 data bits

No parity

No flow control

1 stop bit
After connection to the OPTI-6100 system, the Login screen is
displayed. To log in, enter the default Account Name (ADMIN) and
Password (PASSWORD).
To enter a menu or screen, select the desired option, and press
ENTER. To return to the previous menu, press ESC.
61184571G1V-22C
Indication
Lack of power or power failure
Hardware or firmware failure
Module Out of Service–Unas-
signed (OOS-UAS)
Module Out of Service–Main-
tenance (OOS-MA)
Power up and initialization
OK; Module is In Service (IS)
Firmware download in prog-
ress
LED failure or power failure
Facility or Path error, such as
Loss of Signal
Alerts present
Module operational with no
alarms
Module offline
Module protection inhibited
Module online
Module not in test mode
Module is in loopback
Factory Defaults
To access OMM312V provisioning, complete the following steps:
1. Log in to the OPTI-6100
2. From the OPTI-6100 Main menu, select the OMM312V, and
press ENTER.
3. From the OMM312V menu, select Provisioning, and press
ENTER.
M
AINTENANCE
The OMM312V does not require routine hardware maintenance
for normal operation. ADTRAN does not recommend that repairs
be attempted in the field. Repair services may be obtained by
returning the defective unit to ADTRAN. Field support for
software is provided through upgrade facilities.
S
PECIFICATIONS
Specifications for the OMM312V are as follows:

Operates from A, B, or A and B input voltage feeds:
o ±24 VDC Nominal (±20.0 VDC to ±28.3 VDC), or
o
–48 VDC Nominal (–40.0 VDC to –56.7 VDC)

Extended environmental support:
o
Operational temperature range: –40°C to +55°C
o Storage temperature range: –40°C to +85°C
o Relative humidity to 95%, noncondensing
