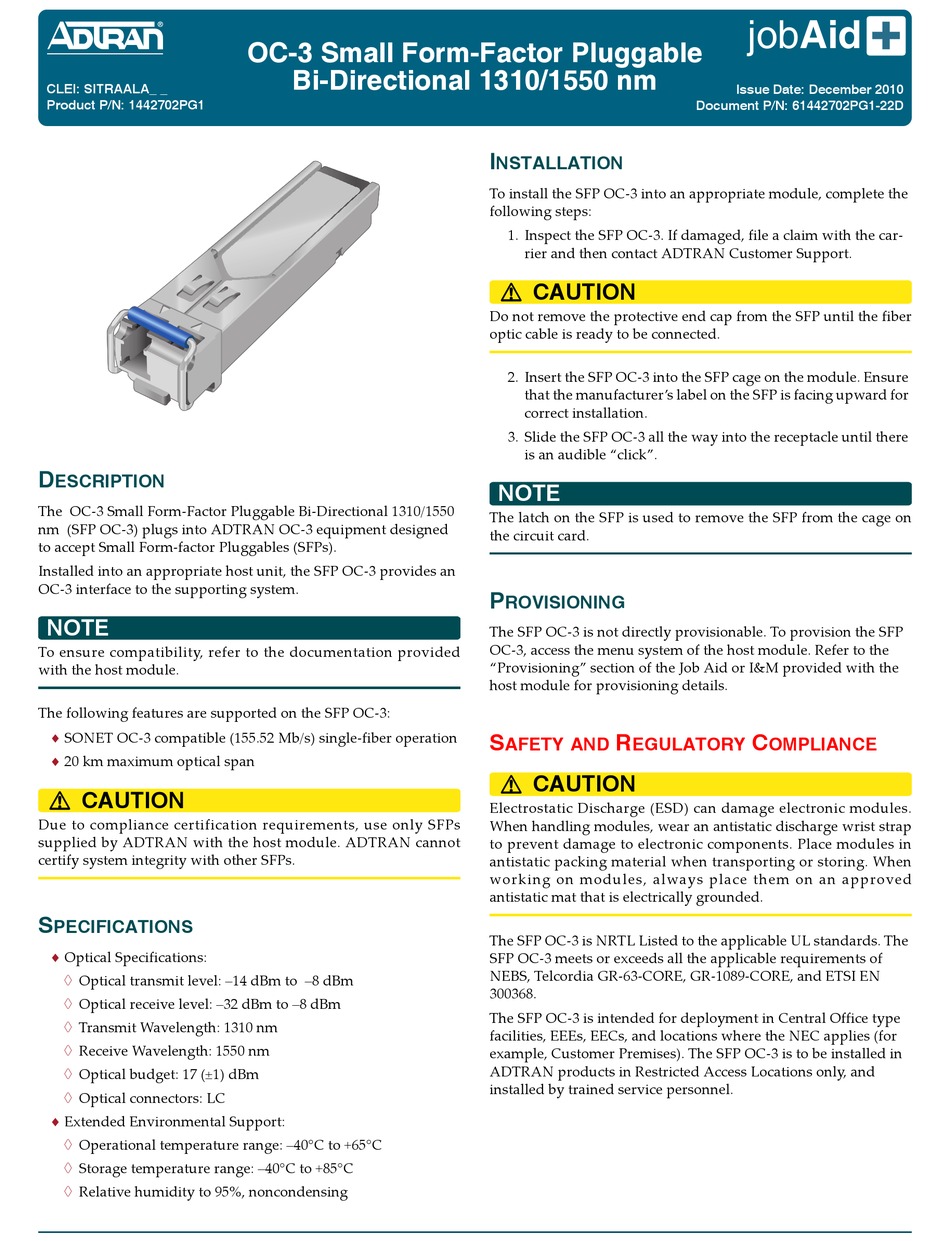

ADTRAN 1442702PG1 Quick Start Manual

CLEI: SITRAALA_ _
Product P/N: 1442702PG1
D
ESCRIPTION
The OC‐3 Small Form‐Factor Pluggable Bi‐Directional 1310/1550
nm (SFP OC‐3) plugs into ADTRAN OC‐3 equipment designed
to accept Small Form‐factor Pluggables (SFPs).
Installed into an appropriate host unit, the SFP OC‐3 provides an
OC‐3 interface to the supporting system.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The following features are supported on the SFP OC‐3:
♦
SONET OC‐3 compatible (155.52 Mb/s) single‐fiber operation
♦
20 km maximum optical span
!
CAUTION
Due to compliance certification requirements, use only SFPs
supplied by ADTRAN with the host module. ADTRAN cannot
certify system integrity with other SFPs.
S
PECIFICATIONS
♦
Optical Specifications:
◊
Optical transmit level: –14 dBm to –8 dBm
◊
Optical receive level: –32 dBm to –8 dBm
◊
Transmit Wavelength: 1310 nm
◊
Receive Wavelength: 1550 nm
◊
Optical budget: 17 (±1) dBm
◊
Optical connectors: LC
♦
Extended Environmental Support:
◊
Operational temperature range: –40°C to +65°C
◊
Storage temperature range: –40°C to +85°C
◊
Relative humidity to 95%, noncondensing
OC-3 Small Form-Factor Pluggable
Bi-Directional 1310/1550 nm
I
NSTALLATION
To install the SFP OC‐3 into an appropriate module, complete the
following steps:
1. Inspect the SFP OC‐3. If damaged, file a claim with the car‐
rier and then contact ADTRAN Customer Support.
!
CAUTION
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
2. Insert the SFP OC‐3 into the SFP cage on the module. Ensure
that the manufacturer's label on the SFP is facing upward for
correct installation.
3. Slide the SFP OC‐3 all the way into the receptacle until there
is an audible "click".
NOTE
The latch on the SFP is used to remove the SFP from the cage on
the circuit card.
P
ROVISIONING
The SFP OC‐3 is not directly provisionable. To provision the SFP
OC‐3, access the menu system of the host module. Refer to the
"Provisioning" section of the Job Aid or I&M provided with the
host module for provisioning details.
S R
AFETY AND EGULATORY
!
CAUTION
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist strap
to prevent damage to electronic components. Place modules in
antistatic packing material when transporting or storing. When
working on modules, always place them on an approved
antistatic mat that is electrically grounded.
The SFP OC‐3 is NRTL Listed to the applicable UL standards. The
SFP OC‐3 meets or exceeds all the applicable requirements of
NEBS, Telcordia GR‐63‐CORE, GR‐1089‐CORE, and ETSI EN
300368.
The SFP OC‐3 is intended for deployment in Central Office type
facilities, EEEs, EECs, and locations where the NEC applies (for
example, Customer Premises). The SFP OC‐3 is to be installed in
ADTRAN products in Restricted Access Locations only, and
installed by trained service personnel.
jobAid
Issue Date: December 2010
Document P/N: 61442702PG1-22D
C
OMPLIANCE
