ADTRAN OC-3 Manual

CLEI: SOOTAE0J_ _
Product P/N: 1184543PG2
D
ESCRIPTION

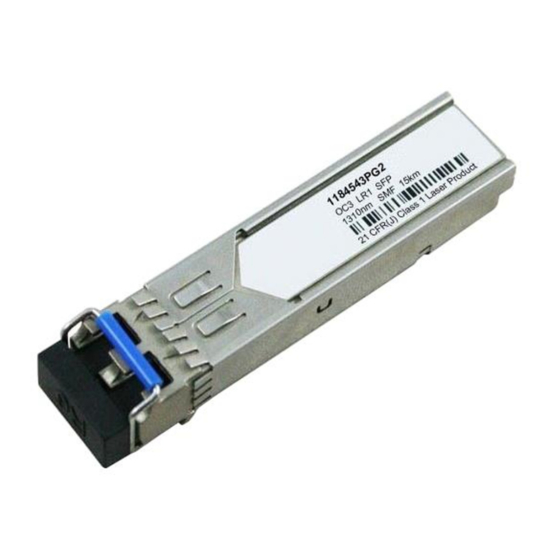

The OC-3 Intermediate Reach (OC-3 SFP) plugs into ADTRAN
OC-3 modules designed to accept Small Form-Factor Pluggables
(SFPs). Installed into an appropriate host module, the OC-3 SFP
provides an OC-3 interface to the supporting system.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The following features are supported on the OC-3 SFP:

SONET OC-3 (155.52 Mb/s) 1310 nm, intermediate-reach (IR-
1), single-mode, 2-fiber operation

15 km maximum optical span

Digital diagnostics available through the menus of the host
module
!
CAUTION
Due to compliance certification requirements, only SFPs supplied
by ADTRAN are to be used with the host module. ADTRAN
cannot certify system integrity with other SFPs.
Operational Specifications

Optical Specifications:
o Transmit level: –15 dBm to –8 dBm
o
Receive level: –28 dBm to –8 dBm
o
Power penalty: 1 dB
o Optical budget: 12 dB
o Optical connectors: LC
o
Maximum optical span: 15 km
o Minimum span attenuation: 0 dB

Extended Environmental Support:
o Operational temperature range: –40°C to +65°C
o Storage temperature range: –40°C to +100°C
o Relative humidity to 95%, noncondensing
Small Form-Factor Pluggable
OC-3 Intermediate Reach
I
NSTALLATION
Before installing the equipment, inspect the OC-3 SFP. If damage
has occurred during shipping, file a claim with the carrier, and
then contact ADTRAN Customer Support. For more information,
refer to the warranty.
To install the OC‐3 SFP into an appropriate module, complete the
following steps:
NOTE
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
NOTE
The latch on the SFP is for removal only. When removing the SFP,
rotate the latch away from the SFP, the SFP should easily slide out
of the cage.
NOTICE
It is recommended that the protective end cap remain on
whenever the transceiver optical fiber connector is not inserted.
P
The OC-3 SFP is not directly provisionable. To provision the OC-3
SFP, access the menu system of the host module. Refer to the
"Provisioning" section of the Job Aid or I&M provided with the
host module for provisioning details.
S
C


1. Insert the OC-3 SFP into the SFP cage on the module. Ensur-
ing that the latch handle on the SFP is facing upward, slide
the SFP all the way into the SFP cage until there is an audible
"click".
2. Continue the installation and turn-up of the host module
using the instructions in the Job Aid provided with the
module or other system-level documentation available
online at www.adtran.com.
ROVISIONING
R
AFETY AND EGULATORY
CAUTION
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist
strap to prevent damage to electronic components. Place
modules in antistatic packing material when transporting or
storing. When working on modules, always place them on an
approved antistatic mat that is electrically grounded.
Per GR-1089-CORE the ADTRAN system that this product is
being deployed in is designed and intended for installation as
part of a Common Bonding Network (CBN). The ADTRAN
system that this product is being deployed in is not designed
nor intended for installation as part of an Isolated Bonding
Network (IBN).

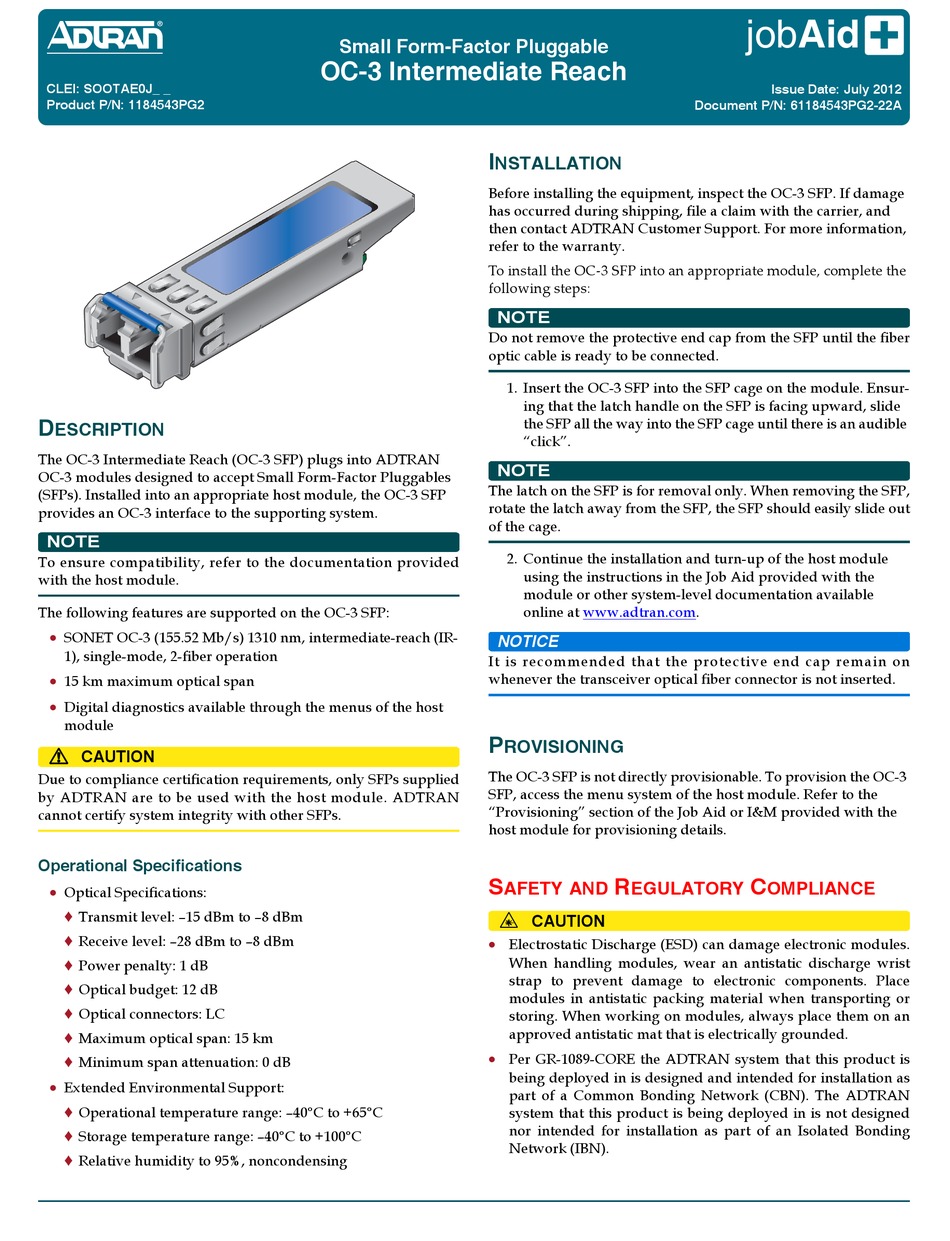

jobAid
Issue Date: July 2012
Document P/N: 61184543PG2-22A
C
OMPLIANCE
