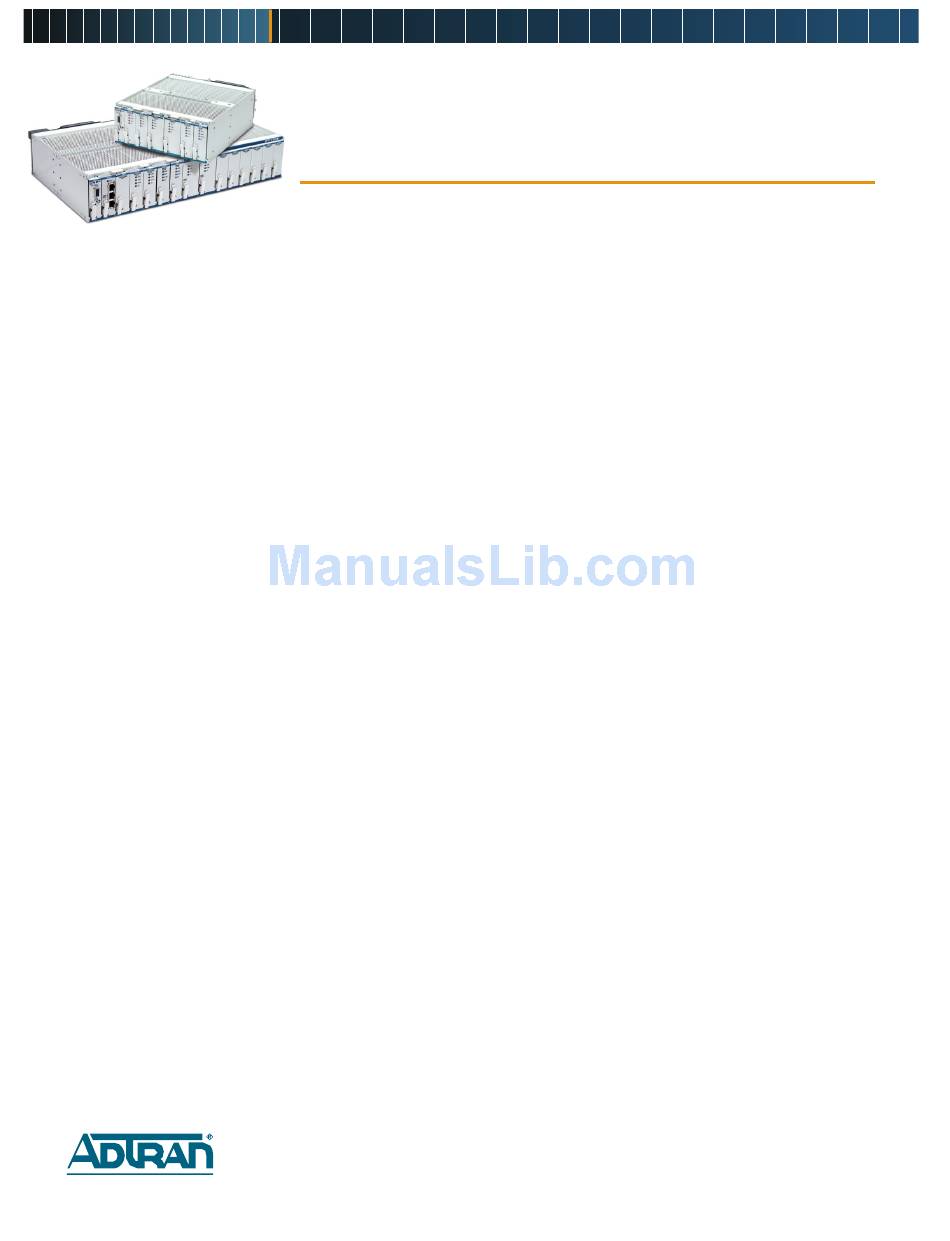

ADTRAN OC-3 Product Specifications

Product Features

■ Carrier-class OC-3/12/48 SONET
multiplexer in a compact (2U
high), full capacity arrangement
■ Single or double ended deploy-
ment into most GR-253 SONET
multiplexers
■
Ethernet over SONET capability;
GFP ITU-T G.7041 compliant
■ Supports high- and low-order
VCAT
■
OSI and IP/PPP over DCC
■ Optional auto in-service for
network and trib connections
■ DS1, DS3/EC-1, Ethernet, OC-3
and OC-12 transport services
with optional redundancy
■ No stranded capacity – capital
savings are immediate – all
capacity is available for revenue
producing services
■ Range of up to 40 km using
1310/1550 nm, one or two fiber
■
Comprehensive maintenance
capabilities – TL1, SNMP, craft
menus; Total Access EMS
support; alarm and event log
■ Management functions and
alarms over the DCC for
manageability within the SONET
framework
■
Up to 84 DS1s fed directly from
the system
■ Up to 12 DS3s fed directly from
the system
■ NEBS extended-temperature
hardened
■ Industry-leading, 10-year
warranty
■ SFP optics for OC-48 optical
modules
OC-3/12/48 Optical Access MUX
OPTI-6100 OC-3/12/48 SONET Multiplexer
Service providers are faced with capital
constraints and the continuing need to incre-
mentally expand existing infrastructures in a
cost-effective manner. They frequently face
challenges posed by the limited electrical range
of DS3s and DS1s and the cost of converting
optical to electrical interfaces for transport
through expensive high-capacity network
elements.
The ADTRAN ® OPTI-6100 ® delivers all the
versatility and functionality that today's service
providers need for cost-effective network
expansion. This compact, state-of-the-art unit
seamlessly integrates with and modernizes
existing networks. The OPTI-6100 consolidates
discrete optical and multiplexer network
elements into one small 2U (3.5-inch) high

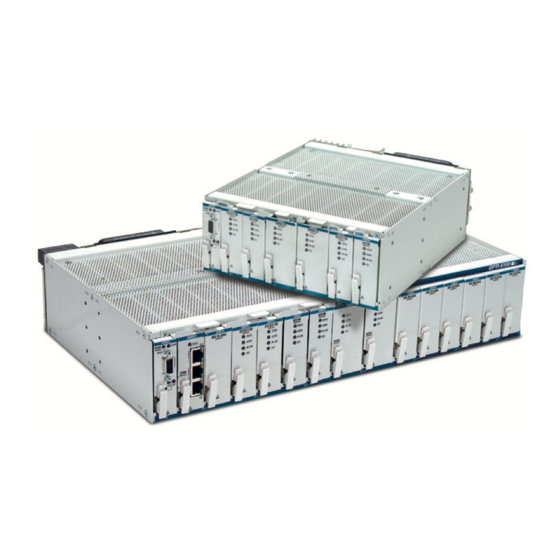

chassis. Two chassis options are available, the
MX (17.5 inches wide) and the SMX (8.5 inches
wide). The MX mounts in a standard 19-inch or
23-inch rack. The SMX is wall or rack mount-
able with the option to mount two units side by
side in a 19- or 23-inch rack.
The feature set, small footprint, low cost,
and diverse deployment options of the OPTI-
6100 make it a powerful tool for optical delivery
of DS1, DS3/EC-1 (STS-1 electrical interface),
OC-3, OC-12 and Ethernet. It supports all of the
maintenance and administration tools neces-
sary for service providers to administer their
networks efficiently. Its fully integrated design
provides the management and redundancy
features expected of carrier-class broadband
multiplexers.
The OPTI-6100 is the industry's first
OC-3/OC-12/OC-48 multiplexer to deliver a
combination of DS1, DS3/EC-1s, Ethernet,
OC-3 and OC-12 drops. ADTRAN provides the
ability to utilize all of the bandwidth in an
optical network interface for customer services
without stranded bandwidth. Its compact
design is significantly smaller than similar
products and it delivers superior functionality
at a fraction of the price.
Topology
• Terminal mode, subtended off a GR-253
compliant SONET ADM
• End-to-end OPTI-6100 (MX or SMX)
• UPSR ADM ring, OC-3/12/48
Architecture
• Very low card count, high degree of
integration, compact design
• Optional protection of high-speed
interfaces
• Optional protection of low-speed inter-
faces, DS1, DS3/EC-1, OC-3, OC-12
Services OPTI-6100 (SMX Chassis)
• DS1 (1 to 28 with redundancy)
• DS3/EC-1 (1 to 6 with redundancy)
• Ethernet (1 to 16)
• OC-3, OC-12 (1 to 2 with redundancy)
• DS3 TRANSMUX ( 1 to 6 with redundancy)
Services OPTI-6100 (MX Chassis)
• DS1 (1 to 84 with redundancy)
• DS3/EC-1 (1 to 12 with redundancy)
• Ethernet (1 to 48)
• OC-3, OC-12 (1 to 6 with redundancy)
• DS3 TRANSMUX (1 to 12 with redun-
dancy)
The OPTI-6100 consists of a common
equipment module (the OMM), a maintenance
interface module (the SCM), and line cards
(tributary modules). The common equipment
module contains a high-speed interface and
common circuitry.
