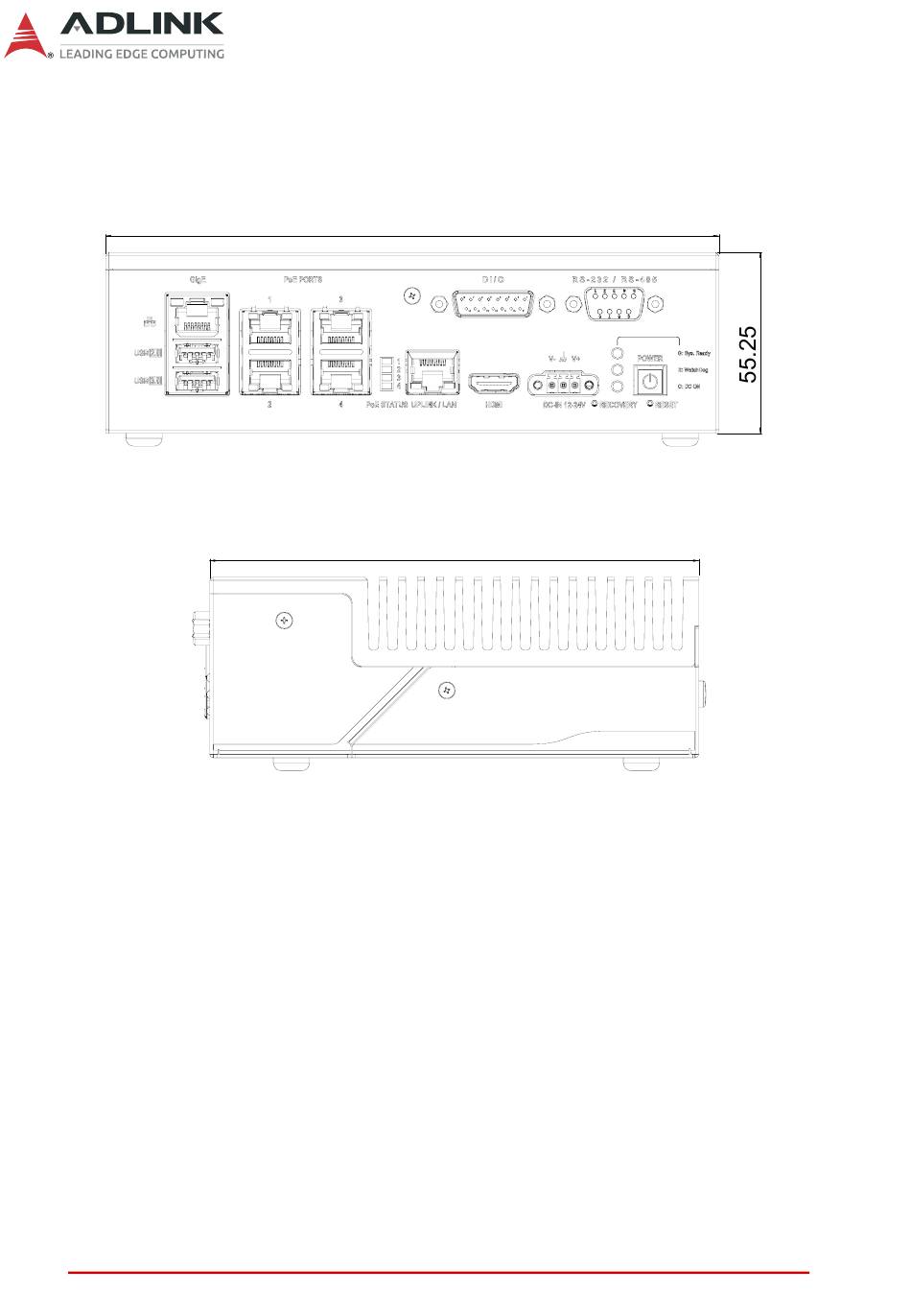

1.3 Mechanical Dimensions

All dimensions shown in millimeters (mm).
187.50

Figure 1-1: EOS-JNX-I Front View

149.50

Figure 1-2: EOS-JNX-I Side View

4
Introduction
