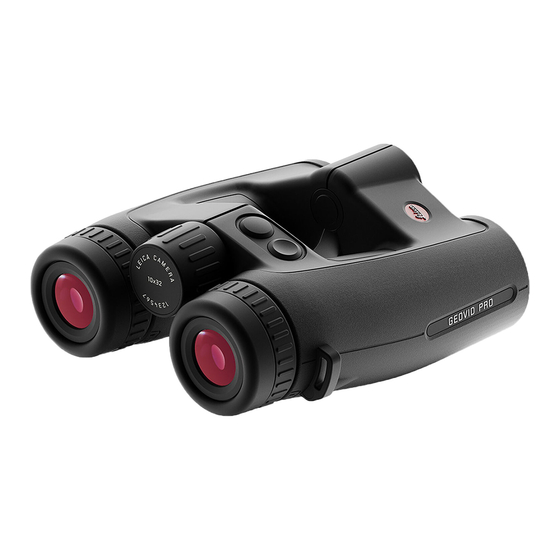

GEOVID PRO
Instruction manual
Geovid Pro/EN/2022/02/1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEOVID PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Leica GEOVID PRO

Summary of Contents for Leica GEOVID PRO

  • Page 1 GEOVID PRO Instruction manual Geovid Pro/EN/2022/02/1...

  • Page 2: Foreword

    The device uses an invisible laser beam. Please read the chapters “Safety Remarks” and “Important Information” Contact Leica Customer Care or your specialist Leica retailer for before using the product for the first time. Knowledge of details on the latest replacement parts / accessory range: the content will prevent inadvertent damage to the product, https://en.leica-camera.com/Stores-Dealers/Leica-dealer-locator...

  • Page 3: Legal Information

    Some pages may contain model types and services, which are not www.cert.leica-camera.com offered in specific countries. Please contact The Leica Camera AG Product Support in case of any further questions: Am Leitz-Park 5, 35578 Wetzlar, Germany Depending on product (see technical data)
  • Page 4 TECHNICAL DATA (LASER) DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT Laser class IEC/EN Class 1 (Applies within the EU and for other European countries Wavelength (nm) with active waste separation policies.) Pulse duration (ns) Output (mW) This device contains electric and/or electronic components which must not be disposed of in general household waste.

  • Page 5: Safety Remarks

    • Do not use the device while walking. You might trip and fall. GENERAL INFORMATION • Do not combine the operation of your Leica Geovid with other • Avoid looking directly at bright light sources with your Leica optical components, e.g. lenses or binoculars. Using the Leica Geovid to prevent eye injury.

  • Page 6: Important Information

    IMPORTANT INFORMATION BATTERY • Only the battery type stated and described in this manual must be used. Any improper use of the batteries or the use of unapproved GENERAL INFORMATION battery types may result in an explosion! • Do not attempt to take the device apart yourself. Repairs must •...
  • Page 7 – Non-compliance may result in damage to the device and accessories • Leica Camera AG does not accept liability for the accuracy of values transmitted from third-party devices. – Non-compliance may result in personal injury •...

  • Page 8: Warranty

    Camera AG offers a 5-year warranty for this Leica product in accor- 5. In case of a warranty claim, please send the Leica product, the dance with the conditions started below. The Leica warranty does...

  • Page 9: Table Of Contents

    WARRANTY ..................... 8 CONNECTING TO EXTERNAL METERING DEVICES ........24 TABLE OF CONTENTS ................9 DISPLAYING THE CORRECTION VALUES ...............25 PART DESIGNATIONS ................10 LEICA BALLISTICS APP ................26 PREPARATION ..................12 CONNECTION .....................26 ATTACHING THE CARRY STRAP ...............12 REMOTE CONTROL ....................27 ATTACHING THE PROTECTIVE LENS CAP ............12 FIRMWARE UPDATES ..................27...

  • Page 10: Part Designations

    PART DESIGNATIONS PART DESIGNATIONS...
  • Page 11 Menu Selection Button Target mark (meter/yard display), (display mode), (Bluetooth), eu.us mOd e (display brightness), (continuous Bluetooth opera- brtn aOff Display tion) (value)/ (menu item)/ (equivalent horizontal ba ll Main button range)/ , (unit of measure)/ (Bluetooth) Switching the device ON/OFF Strap lugs Eyecups (rotating) Use without eye glasses: turn in counter-clockwise direction...

  • Page 12: Preparation

    PREPARATION ATTACHING THE PROTECTIVE LENS CAP ATTACHING THE CARRY STRAP Note • When positioned correctly, the protective lens cap will flip open downwards. The eyepiece caps can be attached to the carry strap. at the same time as the carry strap is attached to the binoculars. ▸...

  • Page 13: Inserting/Changing The Battery

    INSERTING/CHANGING THE BATTERY SETTING THE EYECUPS A cylindrical 3 V lithium cell (type CR2) is required for power supply. The position of the eyecups will depend on whether you wear eye- glasses or not. Contact lens wearers can make the settings just like anyone not wearing any eyeglasses.

  • Page 14: Diopter Settings

    DIOPTER SETTINGS SETTING THE INTEROCULAR DISTANCE A diopter compensation function for up to ±4 diopter is available to allow wearers of glasses the use of this product without eye glasses. 1/8000 12500 1/8000 12500 1/8000 12500 999-9000 999-9000 999-9000 ▸ Close your right eye or cover the right-hand lens ▸...

  • Page 15: Settings And Operation

    SETTINGS AND OPERATION MENU CONTROL ACCESSING THE MAIN MENU SETTING THE IMAGE SHARPNESS ▸ Press and hold the menu selection button (≥3 s) • appears. eu.us NAVIGATING IN THE MAIN MENU ▸ Press the menu selection button repeatedly (<2 s each time) until the desired menu item appears Menu item Options...
  • Page 16 SELECTING SETTINGS ▸ Press the main switch repeatedly (<2 s each time) until the de- sired menu item appears • The selected setting is initially lit continuously as confirmation, then the display switches to the next menu item and then dis- appears if no further settings are made.

  • Page 17: Setting The Operating Mode

    SETTING THE UNIT OF MEASURE SETTING THE OPERATING MODE The device can be set to imperial units of measure ( ) or metric The device can be used in various operating modes. See p. 22 for units of measure ( ), i.e. yards & inches/Fahrenheit/InHG (inches more information.

  • Page 18: Auto Power Off

    The time until automatic power off of the device can be modified if The device can be connected to external devices via Bluetooth. This Bluethooth is activated. will allow the use of user-defined ballistic curves from the Leica ® Ballistics app on a mobile device (see p. 22 and 26), or the ▸...

  • Page 19: Metering Operation

    METERING OPERATION SCAN MODE (OBJECT TRACKING) DISTANCE MEASUREMENT MADE EASY ▸ Press the main switch briefly ▸ Aim the target mark at the object ▸ Press the main switch again • The target mark disappears briefly and the measured value is displayed.

  • Page 20: Metering Range / Accuracy

    METERING RANGE / ACCURACY The following range/accuracy applies in sunlight and with good visibility: Maximum range is achieved in the following scenarios. Range Accuracy (1σ) Accuracy (1σ) – Highly reflective target objects (in meters) Normal Operation Scan mode – At a visual range of around 10 km 10–200 ±0.5 ±1.5...

  • Page 21: Displaying Atmospheric Conditions

    DISPLAYING ATMOSPHERIC CONDITIONS These values can be displayed at any time: ▸ Press the menu selection button briefly • The reticule appears. Then the inclination angle, the temperature and atmospheric pressure are displayed in quick succession for around 2 seconds each. Note •...

  • Page 22: Ballistics

    Press the main switch several times briefly until appears munition used. Note • The profile most recently synched from the Leica Ballistics app • This mode is preset ex works. to the device will be used for all subsequent accesses of the ba ll function, until a new one is set.

  • Page 23: Using User-Defined Ballistics Curves

    USING USER-DEFINED BALLISTICS CURVES WIND CORRECTION A ballistic profile from the Leica Ballistics app must be created and Wind speed and direction can be entered on the device manual to activated on the device to determine ballistic correction values. display lateral correction values.

  • Page 24: Connecting To External Metering Devices

    CONNECTING TO EXTERNAL METERING DEVICES WIND DIRECTION ▸ Press the menu selection button briefly External devices from manufacturers like Nielsen-Kellermann (Kes- trel models) or Garmin (Foretrex GPS) are compatible for provid- • appears. ® ® ® ing ballistic correction values. These devices receive data like the ▸...

  • Page 25: Displaying The Correction Values

    DISPLAYING THE CORRECTION VALUES The display of ballistic correction values includes the following:   (up) Upward correction   (down) Downward correction   (left) Correction to the left   (right) Correction to the right The following values are included in the calculation of correction values: –...

  • Page 26: Leica Ballistics App

    The device can be remotely controlled via smartphone. The Leica ESTABLISHING A CONNECTION Ballistics app allows the setting and storing of personal ballistics profiles. That will require the installation of the “Leica Ballistics” app IN THE BINOCULARS on the mobile device.

  • Page 27: Remote Control

    Some of these improvements and expan- • Fingerprints, etc. on front lenses and eyepiece lenses can be pre- sions of the functional scope can be installed at a later time. Leica cleaned with a damp cloth and then wiped dry with a clean leather releases so-called firmware updates at irregular intervals for that or lint-free cloth.

  • Page 28: Technical Data

    TECHNICAL DATA Designation Leica Geovid Pro 8 x 32 Leica Geovid Pro 10 x 32 Device type Binoculars Binoculars Type No. 5932 5932 Order No. 40 809 40 810 Scope of delivery Binoculars, carry strap, eyepiece cover, carry case, lens cleaning cloth, 2x Binoculars, carry strap, eyepiece cover, carry case, lens cleaning cloth, 2x protective lens cap, quick start guide, certificate, 3 V lithium cell (type CR2)

  • Page 29: Leica Customer Care

    LEICA CUSTOMER CARE Please contact the Customer Care department of Leica Camera AG for the maintenance of your Leica equipment and for help and advice regarding Leica products and how to order them. You can also con- tact the Customer Care department or the repair service provided by your regional Leica subsidiary for repairs or warranty claims.
