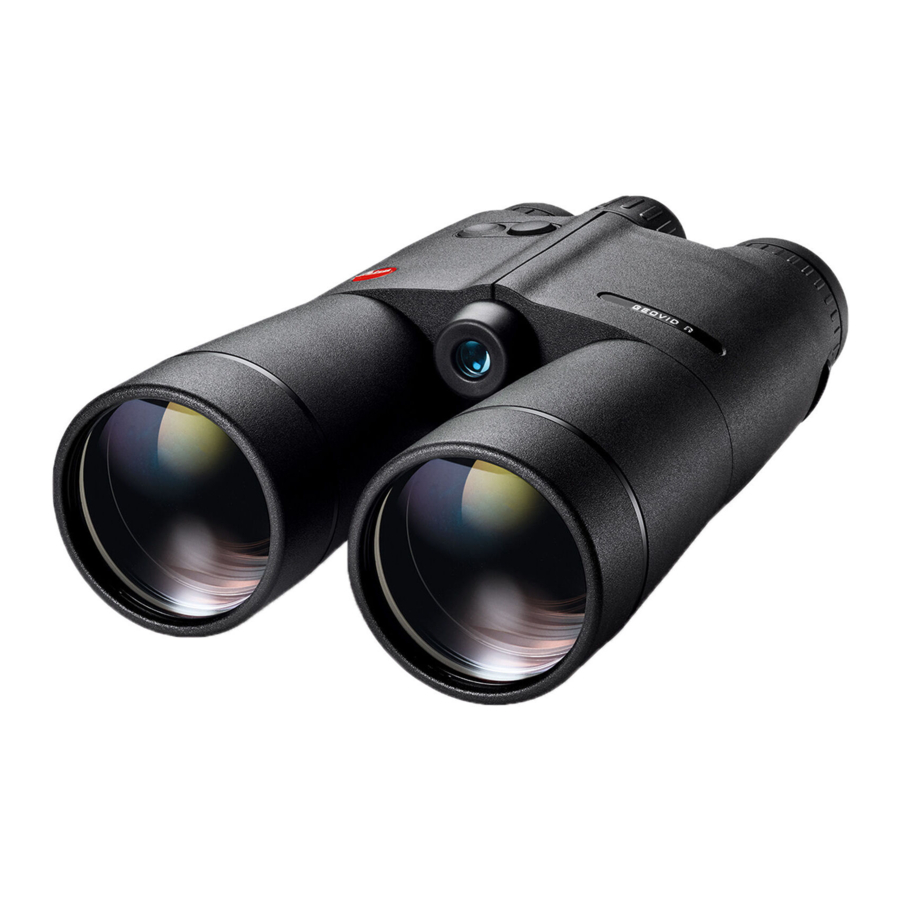

Leica GEOVID R Series, Geovid R 8x56 / R 15x56 / R 8x42 / R 10x42 Manual

REPLACEMENT PARTS / ACCESSORIES

Contact Leica Customer Care or your specialist Leica retailer for details on the latest replacement parts / accessory range:
en.leica-camera.com/Contact

Please read the chapters "Safety Remarks" and "Important Information" before using the product for the first time. Knowledge of the content will prevent inadvertent damage to the product, possible injuries and other risks.

This is a CLASS 1 - CONSUMER LASER PRODUCT according to 50689:2021

TECHNICAL DATA

CLASS 1 LASER PRODUCT
With the exception of the characteristics permitted under Variance Number IEC 60825-1 Ed. 3, effective May 8, 2019, this product complies with the performance standards for laser products under 21 CFR 1040.10 and 1040.11.

IMPORTANT INFORMATION

GENERAL INFORMATION

• Do not attempt to take the device apart yourself. Repairs must only be carried out in authorized workshops.
• Remove the battery from the housing if you will not be using the product for an extended period of time.
• Low temperatures impair battery performance. Carry the device close to the body in cold conditions and use a fresh battery.
• Make sure to store the batteries in a cool, dry place.
• Depleted batteries must never be disposed of in household waste as they contain toxic materials that are harmful to the environment. Battery collection points are provided at most large retail outlets; alternatively, you can dispose of old batteries at a local special waste collection point to ensure correct recycling.
• Do not touch the glass surfaces with your fingers, especially if you have previously applied hand cream, insect repellent, etc. These substances may contain chemicals that damage or destroy the coatings on the glass surfaces.

MEASURING VALUES

• The influence of all ballistically relevant influencing factors is greatly increased at longer ranges and considerable variations may occur. The ballistic values displayed should therefore only be viewed as a guideline.
• Regardless of whether this information is used, you are responsible for assessing the relevant hunting situation.
• Leica Camera AG does not accept liability for the accuracy of values transmitted from third-party devices.
• Powerful electric fields, e.g. emanating from radar systems, may cause errors and/or faulty values.
• The geomagnetic field can similarly cause value deviations.

TERMS OF GUARANTEE

ASSERTION OF THE LEICA-GUARANTEE
We require a copy of the proof of purchase of your Leica product from a LEICA-authorized dealer ("Authorized Leica Dealer") before we can accept any claim under the warranty.
Please send your Leica product with a copy of your purchase receipt or the Warranty Card alongside a description of the issue.
Leica Camera AG, Customer Care, Am Leitz-Park 5, 35578 Wetzlar, Germany
Email: customer.care@leica-camera.com, phone: +49(0)6441 2080-189

PART DESIGNATIONS

1. Menu Selection Button
   (meter/yard display), (equivalent horizontal range)
2. Main switch
   Switching the device ON/OFF
3. Strap lugs

4. Eyecups (rotating)
   Use without eye glasses: turn in counter-clockwise direction
5. Focusing wheel
   Adjusting the focus
6. Eyepiece cap
7. Diopter setting wheel
   1. Scale
8. Diopter setting wheel for digital display
   1. Scale
9. Center hinge
10. Battery compartment cover
    Use a coin to turn in anti-clockwise direction to open
11. Lens caps
12. Laser transmission lens
13. Lens
14. Battery compartment
    3 V lithium cell (type CR2)
15. Target mark

16. Display
    (value)

MENU OVERVIEW

MENU CONTROL
ACCESSING THE MAIN MENU

• Press and hold the menu selection button (≥3 s)
  • appears.

NAVIGATING IN THE MAIN MENU

• Press the menu selection button repeatedly (<2 s each time) until the desired menu item appears

Menu item	Options	Description
		Yard display
		Meter display
		Activate EHR
		Deactivate EHR

SELECTING SETTINGS

• Press the main switch repeatedly (<2 s each time) until the desired menu item appears
  • The selected setting is initially lit continuously as confirmation, then the display switches to the next menu item and then disappears if no further settings are made.

OPERATION

SETTING THE INTEROCULAR DISTANCE

SETTING THE IMAGE SHARPNESS

• Look through the binoculars
• Aim at the target object
• Adjust the focusing wheel until you can see the target object with optimum sharpness

DISTANCE MEASUREMENT MADE EASY

• Press the main switch briefly
• Aim the target mark at the object
• Press the main switch again
  • The target mark disappears briefly and the measured value is displayed.
  • You can do another measurement at any time by pressing the main button while the target mark remains lit.

will appear in the following scenarios:

• Distance to the object is less than 10 meters
• Range capability is exceeded
• Object is not sufficiently reflective

SCAN MODE / OBJECT TRACKING

• Press the main switch briefly
• Aim at the object while target mark is lit
• Press and hold main switch for approx. 2.5 seconds
  • The device switches to scan mode and will then measure continuously. Scan mode is indicated by a change in the display. A new measured value appears after approx. 0.5 seconds.

ATTACHING THE PROTECTIVE LENS CAP

Note

• When positioned correctly, the protective lens cap will flip open downwards.


TECHNICAL DATA

Subject to changes in design, production, and scope of delivery.

SAFETY REMARKS

Non-compliance with the following points may result in serious injury or death.

LASER

• The use of any operations not described in this manual or any alterations on the device may result in hazardous radiation exposure.
• The laser device is active and emitting an invisible laser beam as long as the display in the eyepiece is active. Never point the laser focusing optics at a person or animal.
• Do not depress any of the two buttons while aiming at a human eye or while looking into the optics from the lens side.
• Never aim the laser at an eye.
• Do not aim the laser at people or animals.
• Avoid touching any of the two buttons while the distance measurement function is not in use to prevent an accidental activation of the laser beam.
• Do not attempt to disassemble, reassemble or repair the Leica Geovid yourself. Emitting laser radiation may pose a serious health risk. The manufacturer warranty is void, once a device was disassembled, reassembled or repaired.
• Remove the battery immediately and stop using the device if the device housing is damaged or if it emits a strange sound after being dropped or behaves unexpectedly for any other reason.

GENERAL INFORMATION

• Avoid looking directly at bright light sources with your Leica Geovid to prevent eye injury.

Non-compliance with the following points may result in personal injury or damage to the device.

• Keep the device out of the reach of small children.
• Do not use the device while walking. You might trip and fall.
• Do not combine the operation of your Leica Geovid with other optical components, e.g. lenses or binoculars. Using the Leica Geovid in conjunction with another optical device increases the danger of damaging your eyes.
• Do not attempt to disassemble or modify the device; exposing the internal electronics may cause damage, injury or electric shock.

BATTERY

• Only the battery type stated and described in this manual must be used. Any improper use of the batteries or the use of unapproved battery types may result in an explosion!
• Do not expose the battery to sunlight, heat, humidity or moisture for prolonged periods of time. It must not be placed in a microwave oven or a high-pressure container as this would pose a fire or explosion hazard!
• Never dispose of batteries in fire and never attempt to heat, recharge, dismantle or break open a battery.
• Batteries must always be stored out of the reach of children. Do not leave batteries lying around, as they could be swallowed by children or pets.

CARRY STRAP

• The carry strap is usually made of very robust material. You should therefore keep it out of the reach of children. A carry strap is not a toy and poses a strangulation risk.
• Use the carry strap only for its intended purpose on a camera or on binoculars. Any other use poses the risk of injury and may possibly result in damage to the carry strap and is therefore not permitted.
• Carry straps should also not be used for cameras/ binoculars during sports activities that pose a risk of entanglement (e.g. when mountain climbing and similar outdoor activities).
