DMP Electronics 9800 Series Quick Start Manual

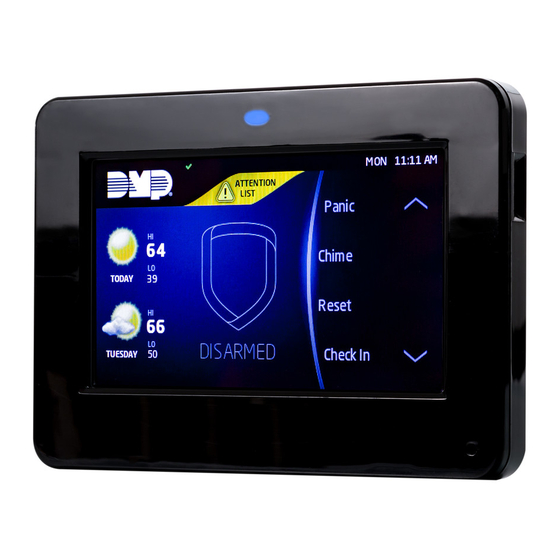

9800 Series Graphic Touchscreen Keypad
Quick Start Guide
This quick start guide walks you through installing the keypad.
Full Installation and Programming Guide
To view the full
visit DMP.com.
Step 1: Remove the Cover
Insert a slotted-tip screwdriver into one of the slots on the bottom of the keypad and lift the screwdriver upward. Repeat with the other
slot. Separate the cover from the base and set the cover containing the keypad components aside.
Step 2: Run Wire
If installing the 9862 keypad with a wire-in power supply, run wire 18-22 AWG from an unswitched power outlet to the keypad mounting
location.
Step 3: Mount the Keypad
Mount 9862 with Screws
1. Route the keypad wires through the cutouts in the base.
2. Use the keypad base to mark the holes for the screws on the mounting surface.
3. Set the base aside and drill the holes.
4. Use the included screws to secure the keypad base to the surface. Do not
overtighten.
5. Place the keypad cover back onto the base and snap it into place.
Mount 9682USB on Deskstand
For mounting on a deskstand, see the QR code at the beginning of the document.

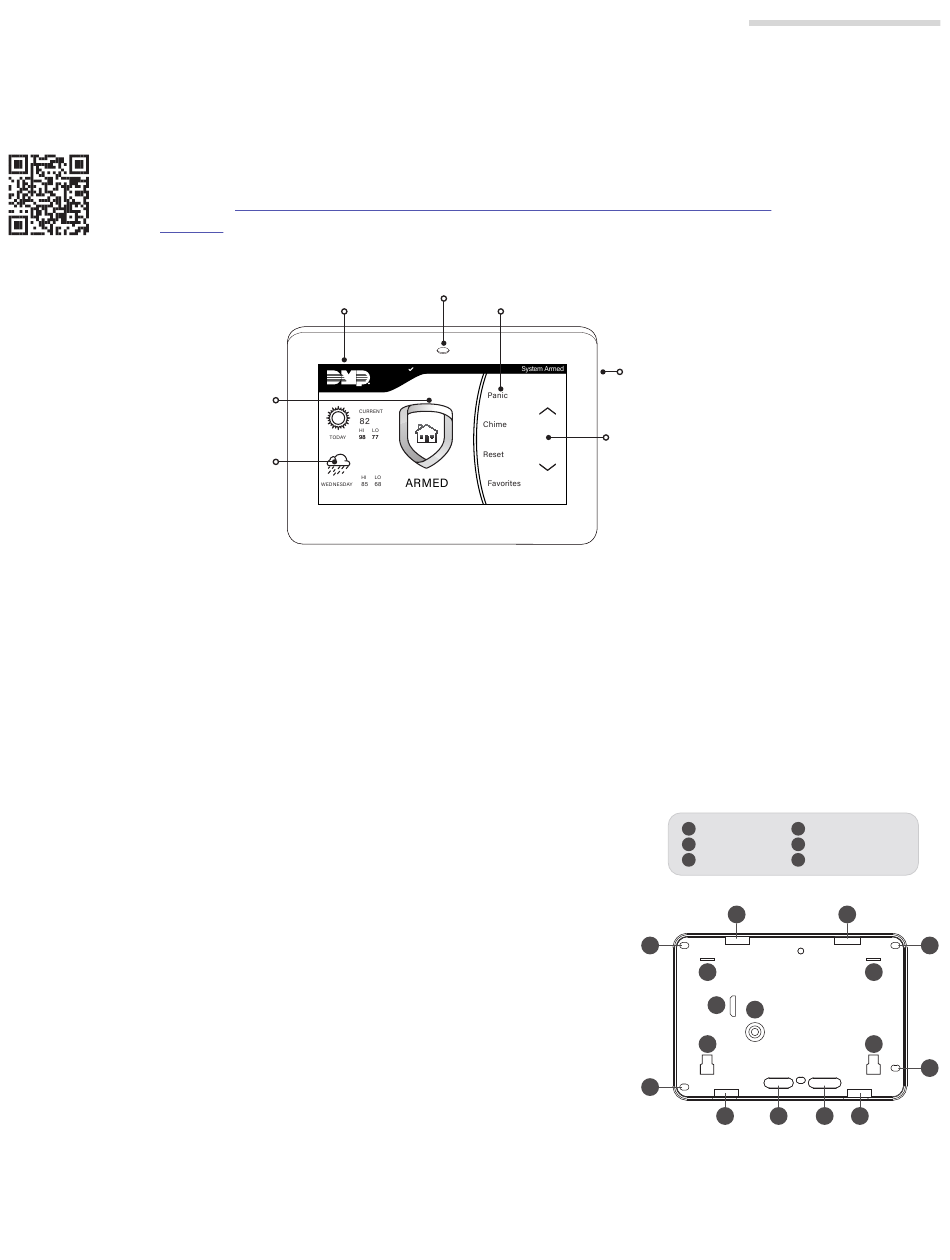

9800 Series Graphic Touchscreen Keypad Installation and Programming
Armed/Power LEDs &
Dealer Logo
Interactive
Arming/
Disarming
Shield
Local
Weather
Proximity Reader
Carousel Menu
Guide, scan this QR code or
microSD
Card Slot
Press the
Navigation
Arrows or touch
and drag the
menu to scroll
A
Mounting holes
B Wiring cutouts
C
Cover latches
C Base
(Inside)
A
D
E
F
D
A
C B
D
Deskstand Holes
E Micro-USB Receptacle
F
Tamper Button
C
A
D
D
A
B C
