DMP Electronics 9000 Series Installation Manual

Description
The DMP 9060 and 9063 are fully functioning supervised wireless keypads. They provide installation flexibility while also
offering optional codeless arming and disarming capabilities. Each keypad provides:
• Custom 32-character full LCD display
• Three 2-button Panic keys
• Backlit keyboard with easy-to-read lettering
• Internal speaker
• Wall tamper protection
• Keyboard backlighting turns Red in alarm conditions
The Model 9063 keypad also provides a built-in proximity card
reader designed to read DMP/HID proximity credentials for
codeless arming and disarming.
Compatibility
All DMP 1100 Series Wireless Receivers and Panels
What is Included
The 9000 Series Keypad includes the following items:
• One wireless keypad mounted in a Thinline two-part
housing (base and cover)
• One internal rechargeable 3.7V lithium battery
• One 12 VDC DC Plug-in Power Supply
• Serial number label
• Model 9063 also includes a built-in proximity card reader
Keypad Serial Number
For your convenience, an additional pre-printed serial number label is included. Prior to installing the device, record the
serial number or place the pre-printed serial number label on the panel programming sheet. This number is required during
programming.
Programming the Transmitter in the Panel
The keypads can be programmed into the control panel by entering the serial number in Device Setup panel programming,
or alternatively using the wireless keypad association operation (see below). A maximum of 4 keypads may be used with
the panel.
Device Setup Programming
Program the keypad as a device in Device Setup during panel programming. At the serial number prompt, enter the eight-
digit serial number. Continue to program the device as directed in the panel programming guide.
Note: If the keypad serial number is entered manually, the Wireless Keypad Association operation is not required.
Wireless Keypad Association
Enable Wireless Keypad Association operation on both the keypad and panel.
To enable association operation in the keypad, access the Installer Options Menu (3577 (INST)) and select RF Survey. The
keypad logo LEDs turn on Red until association is successful.
To enable association operation in the XTL panel, press the XTL RESET button 3 times within 12 seconds allowing 3 seconds
between each press of the reset button. When in keypad association, the XTL Red and
Green logo LEDs turn on steady.
To enable association operation in the XR100/XR500, XR150/XR350/XR550 or XT30/XT50
panel, reset the panel 3 times within 12 seconds. Allow the keypad bus Transmit/Receive
LEDs to turn back on between each reset.
For 60 seconds the panel listens for wireless keypads that are in the Installer Options
Menu (3577 CMD) and have not been programmed, or associated into another panel.
Those keypads are assigned to the first open device position automatically based upon
the order in which they are detected. The keypad logo turns Green to indicate it has
been associated with the panel.
Selecting the Proper Location
The 9000 Series keypads provide a built-in survey capability in the Installer Options menu to allow one person to confirm
keypad communication with the panel. See Accessing Keypad Wireless Survey later in this document.
INST ALLA TION GUIDE
9000 Series Wireless Keypads
32-Character Display
Backlit Logo
and Proximity
Antenna
Data Entry Digit keys

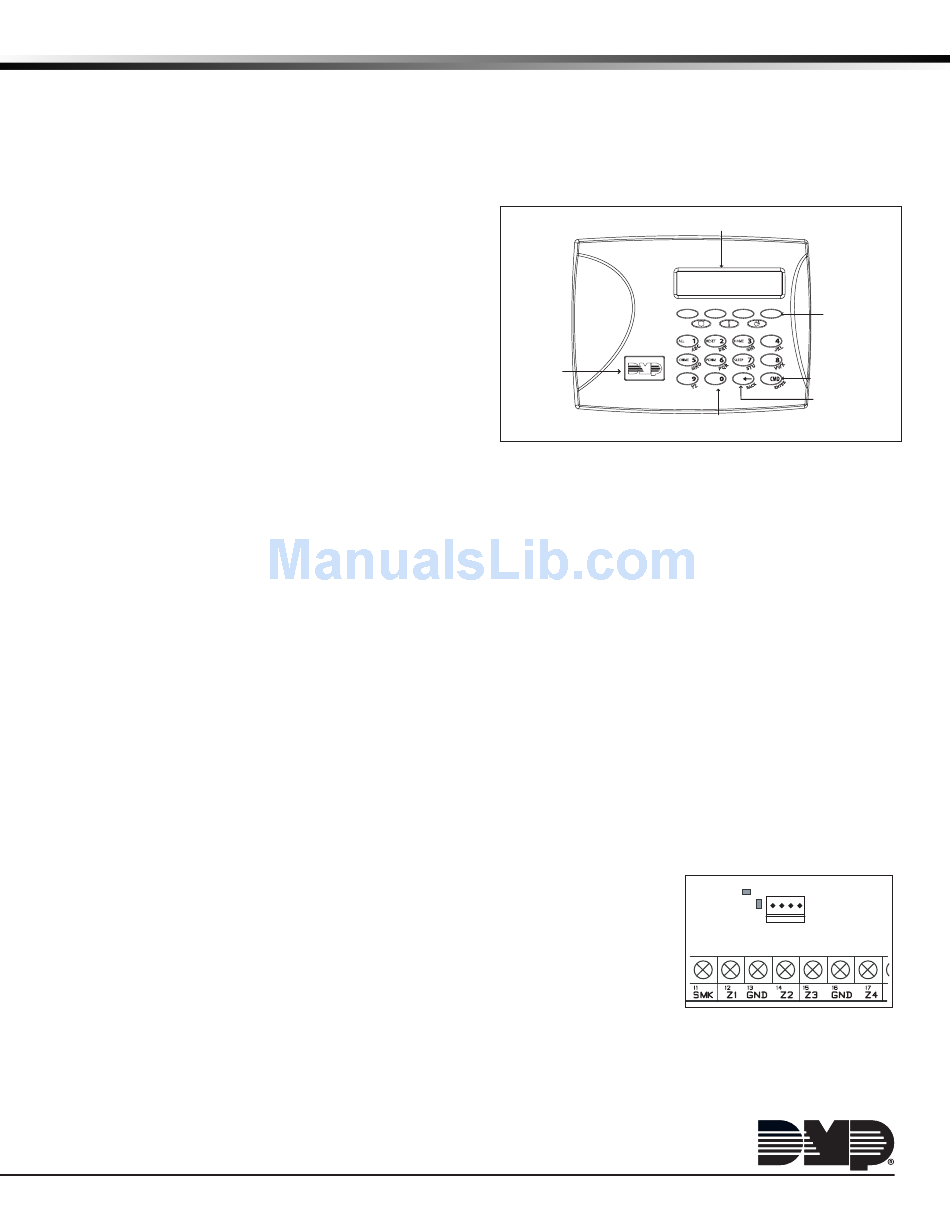

Figure 1: 9000 Series Keypad
Select Keys
COMMAND Key
Back Arrow Key
RCV
J8
XMIT
Programming
