DMP Electronics 9000 Series Installation And Programming Manual

Wireless keypad
Hide thumbs Also See for 9000 Series:
Table of Contents

Advertisement

Quick Links

9000 Series
Wireless Keypad

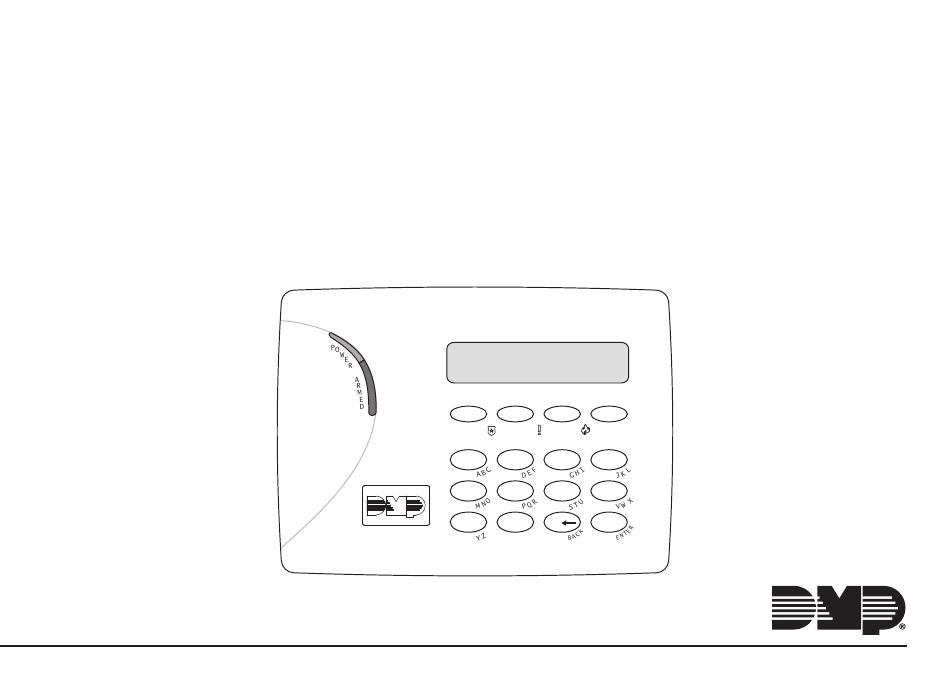

INSTALLATION AND PROGRAMMING GUIDE
FRI
2:52
PM
1
2
3
4
ALL
RESET
HOME
5
6
7
8
CHIME
PERIM
SLEEP
9
0
CMD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for DMP Electronics 9000 Series

Summary of Contents for DMP Electronics 9000 Series

  • Page 1 9000 Series Wireless Keypad INSTALLATION AND PROGRAMMING GUIDE 2:52 RESET HOME CHIME PERIM SLEEP...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS About the Keypad ........1 Install the Keypad ........8 Features ................1 Remove the Cover ............8 What’s Included ............... 1 Mount the Keypad ............9 Power the Keypad ............10 Keypad Layout ..........2 Primary DC Power Supply ..........10 Standby Battery ...............
  • Page 4 Test the Keypad ........26 Certifications ..........38 Underwriters Laboratory (UL) Listed ....38 Keypad Diagnostics ............26 Exit Installer Options ............27 FCC Information ........39 End User Training ........28 Industry Canada Information ....40 Keypad Arming and Disarming ......29 Area System Type ............29 All/Perimeter System Type..........

  • Page 5: About The Keypad

    • Keypad turns red in alarm • Wireless Encryption (requires a keypad with firmware Version 300 or higher and a panel with firmware Version 183 or higher) • Built-in proximity card reader (Model 9063) 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 6: Keypad Layout

    Armed/Power Status List 2:52 LEDs Panic Keys RESET HOME CHIME PERIM SLEEP Proximity Credential Reader Command and Backlit Logo (CMD) Key Back Arrow Key Figure 1: 9000 Series LCD Keypad Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 7: Enter Characters

    & $ Τ Υ Φ Χ Ψ Ω Space Space Space Space . ‘ * < # > . ‘ * < # > Table 1: Latin Characters Table 2: Greek Characters 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 8: Card Reader

    Panic (left two select keys)—Zone 19 + Device Address Emergency Non-Medical (center two select keys)—Zone 29 + Device Address Fire (right two select keys)—Zone 39 + Device Address Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 9: Backlit Logo

    Green Steady Disarmed Green Blinking Disarmed Fault Red Steady Armed Red Blinking Armed Fault Red/Green Alternating Armed Fault Unknown No Light Unknown Fault Unknown Unknown Table 3: Logo Color and Behavior 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 10: User Options Menu

    At SET VOLUME LEVEL, use the left select key to decrease the volume and the right select key to increase the volume. Model Number Display the keypad model number, firmware version, and date. Serial Number Display the keypad’s serial number. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 11: Select A Location

    2. Hold down the back arrow and CMD keys for two seconds. 3. Enter 3577 (INST) and press CMD. 4. Select KPD RF (wireless survey). For more information, see Keypad Wireless Survey. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 12: Install The Keypad

    Repeat with the other slot. Gently separate the cover from the base and set the cover containing the keypad components aside. See Figure Figure 2: Separate the Keypad Housing Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 13: Mount The Keypad

    See Figure Black (-) Black/White stripe (+) Combined 4-Square and 3-Gang Switch Box Mounting Holes Wall Tamper Surface and Backbox Mounting Holes Figure 3: Mounting Holes on Keypad Back 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 14: Power The Keypad

    3.62 VDC. To restore the keypad from a low battery state, the voltage must be above 3.62 VDC. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 15: Pair The Keypad

    You can program up to 7 wireless keypads in a panel with XR Series Version 191 (3/8/19) or higher and XT Series Version (11/15/19) or higher. 9000 Series wireless keypads can be programmed into the control panel by using the wireless keypad pairing operation or by entering the serial number in Device Setup.

  • Page 16: Step 1: Enable Pairing At The Keypad

    Pair Manually (Any Compatible Panel Model) Reset the panel 3 times within 12 seconds, allowing the panel’s Keypad Bus LEDs to turn back on between each reset. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 17: Program The Panel

    Set the keypad address at 1-16 for XR550 Series panels or 1-8 DEVICE NO: - for other compatible panels. Device Name DEVICE SETUP Press any select area, then enter a name for the wireless *UNUSED* keypad. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.
  • Page 18 SUPRVSN TIME: 240 are 0, 60, or 240 minutes. Configure additional options as needed. To configure custom card options for the keypad, do not program CARD OPTIONS in Device Setup. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 19: Program Keypad Options

    KEYPAD OPTIONS KPD KPD KPD To program keypad options, press KPD OPT. OPT DIAG RF STOP Serial Number SERIAL #:XXXXXXXX The keypad displays its serial number. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.
  • Page 20 The delay also occurs when any credential is presented for arming the Home/Sleep/Away system. Default is 2. Enable Tamper? ENABLE TAMPER? Select YES to enable wall tamper protection. Default is NO. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 21: Card Formats

    ZN 3 REX TIME. No user code information is sent to the panel. The menu advances to NO COMM WITH PNL. The default card format is DMP. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.
  • Page 22 Note: If you select slot 1 and you are upgrading from XR panel version 182 or earlier, FORMAT NAME will automatically be named SINGLE CARD FORMAT and WIEGAND CODE LENGTH will default to 45. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...
  • Page 23 Position = 9 Received Position = 0 Length = 8 Length = 16 Position = 25 Example: Wiegand Code Length = 26 bits Figure 5: Wiegand Data Stream Bit Location 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.
  • Page 24 0-255. Press CMD to save. Default is 9. Press select area 4 to clear the user code length and enter a number between 16-64. Press CMD to save. The default is the DMP value of 16. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...
  • Page 25 In the keypad display, enter site code 1 and press CMD. The display will ask for site code 2 followed by site code 3 and so on. When you have selected the site code you want to change, press CMD. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.
  • Page 26 All bits are read and converted into a decimal number string. The number string is left padded with 0 (zero) if needed for long user code lengths. Example: # decoded 1234567 10 digits 0001234567 4 digits 4567 Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 27: No Communication With Panel

    Press CMD to display additional actions. Press the first LAST select key or area to choose LAST (Keep Last State). The relay remains in the same state and does not change when communication is lost. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 28: Keypad Language

    ENG SPN FRN DUT to select Dutch. Press CMD to advance the language options. Press select key 1 to select Greek. Press select key 2 to select KYPD LANGUAGE: Czech. EΛΛ CZK Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 29: Additional Programming (9063 Only)

    4. At ENTER CODE: -, present the credential to the reader. The keypad works by reading the user code from the data string sent by the access control reader. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 30: Test The Keypad

    Press and hold each key for two seconds. The key number being held appears in the display. Verify the correct number displays before testing the next key. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 31: Exit Installer Options

    EXIT INSTALLER OPTIONS When you’ve finished programming, press CMD once to return to the main menu. Select STOP to save programming and exit. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 32: End User Training

    END USER TRAINING This section covers: • Keypad Arming and Disarming • Keypad Entry Delay All of the examples displayed assume that CLOSING CODE is enabled in panel programming. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 33: Keypad Arming And Disarming

    Select NO to arm or disarm individual areas. Select YES, or simply wait, to automatically arm or disarm all areas for which you are authorized. Figure 6: Area Arming and Disarming 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 34: All/Perimeter System Type

    HOME, SLEEP, AWAY or after a short time-out, all areas automatically arm in the AWAY mode. PERIM The system arms or disarms the areas and activates the door strike relay on the 7073 or 7073A keypad. Figure 7: All Perimeter Arming and Disarming Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 35: Keypad Entry Delay

    Area systems provide a delay to allow selected areas only to be disarmed. See Keypad Arming and Disarming. ABC SECURITY ENTER CODE: – Entry delay starts. The System disarms the area and activates the Door Strike Relay. Figure 8: Entry Delay 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.
  • Page 36 Line up the alignment post with the hole in the PCB. Press the PCB into the top snaps to secure in place. Place the keypad cover back onto the base and snap into place. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...
  • Page 37 Top PCB Snaps 4 Position Header PCB Alignment Post Bottom PCB Snaps Figure 9: PCB Snaps 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.
  • Page 38 KEY 4 KEY 5 KEY 6 KEY 7 KEY 8 KEY 9 KEY 10 KEY 11 KEY 12 KEY 13 KEY 14 KEY 15 Figure 10: Battery Location and PCB Connection Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 39: Compatibility

    COMPATIBILITY Panel Models All DMP panels and 1100 Series Wireless Receivers are compatible with the 9000 Series. Wireless encryption requires keypad firmware Version 300 or higher and panel firmware Version 183 or higher. Public Card Formats WIEGAND SITE CODE SITE CODE...

  • Page 40: Credentials

    Standard Light Proximity Card PSK-3 Proximity Key Ring Tag PSM-2P ISO Imageable Proximity Card 1306 Prox Patch™ 1326 Proxcard II® Card 1346 ProxKey III® Access Device 1351 ProxPass® 1386 IsoProx II® Card Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 41: Product Specifications

    24 Hours Frequency Range 905-924 MHz Dimensions 7.00” W x 5.25” H x 0.50” D (17.8 cm x 13.3 cm x 1.3 cm) Color White Housing Material Flame-Retardant ABS Patents U.S. Patent No. 7,239,236 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 42: Compliance Listing Specifications

    Industry Canada: 5251A-PC0126 Underwriters Laboratory (UL) Listed • ANSI/UL 1023 Household Burglar Alarm System Units • ANSI/UL 1610 Central Station Burglar Alarm Units • ANSI/UL 985 Household Fire Warning System Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...

  • Page 43: Fcc Information

    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 9000 Series Installation and Programming Guide | Digital Monitoring Products, Inc.

  • Page 44: Industry Canada Information

    établies par le Code de sécurité 6 de Santé Canada. Le système doit être installé à une distance minimale de 7.87 pouces (20 cm) séparant l’antenne d’une personne présente en conformité avec les limites permises d’exposition du grand public. Digital Monitoring Products, Inc | 9000 Series Installation and Programming Guide...
  • Page 48 LT-1107 21332 1.04 © 2021 Digital Monitoring Products, Inc.
