DMP Electronics 9000 Series Installation Manual

Description
The DMP 9060 and 9063 are fully functioning supervised wireless keypads. They provide installation flexibility while also
offering optional codeless arming and disarming capabilities. Each keypad provides:
•
Custom 16-character home or business name
• Four 2-button Panic keys
• 32-character display
• Backlit keyboard with easy-to-read lettering
• Internal speaker.
• Wall tamper protection
• Keyboard and logo backlighting turns Red in alarm
conditions
The Model 9063 keypad also provides a built-in proximity card
reader designed to read DMP/HID proximity credentials for
codeless arming and disarming.
Compatibility
XTL Panels
What is Included
The 9000 Series Keypad includes the following items:
• One wireless keypad mounted in a Thinline two-part housing (base and cover)
• One 3.7V lithium battery
• One 12 VDC DC Plug-in Power Supply
• Serial number label
Keypad Serial Number
For your convenience, an additional pre-printed serial number label is included. Prior to installing the device, record the
serial number or place the pre-printed serial number label on the panel programming sheet. This number is required during
programming. As needed, use the zone name and number label to identify a specific transmitter.
Programming the Transmitter in the Panel
The 9000 Series Wireless Keypads can be programmed into the XTL through panel programming or using the wireless
keypad association mode.
Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is reset. If the
receiver has been powered down for more than one hour, wireless transmitters may take up to an additional hour to send
a supervision message unless tripped, tampered, or powered up. This operation extends battery life for transmitters. A
missing message may display on the keypad until the transmitter sends a supervision message.
Device Setup Programming
Refer to the XTL Programming Guide (LT-1107) as needed. Program the keypad as a device in Device Setup during panel
programming. At the Serial Number: prompt, enter the eight-digit serial number. Continue to program the device as
directed in the panel programming guide.
Wireless Keypad Association
Pressing the XTL RESET button 3 times within 5 seconds enables the keypad association mode. For one minute the panel
listens for wireless keypads. Any keypads not already associated with another panel are assigned to the first open keypad
address. Keypads are automatically assigned addresses based upon the order in which they are detected. A maximum of 4
keypads may be associated with a panel.
Selecting the Proper Location (LED Survey Operation)
The 9000 Series keypad provides a built-in survey capability in the Installer menu to allow one person to confirm keypad
communication with the panel. Refer to Accessing Keypad Wireless Survey later in this document.
Inst alla tIon GuIde
9000 Series Wireless Keypads
and Proximity
32-Character Display
Backlit Logo
Antenna
Data Entry Digit keys

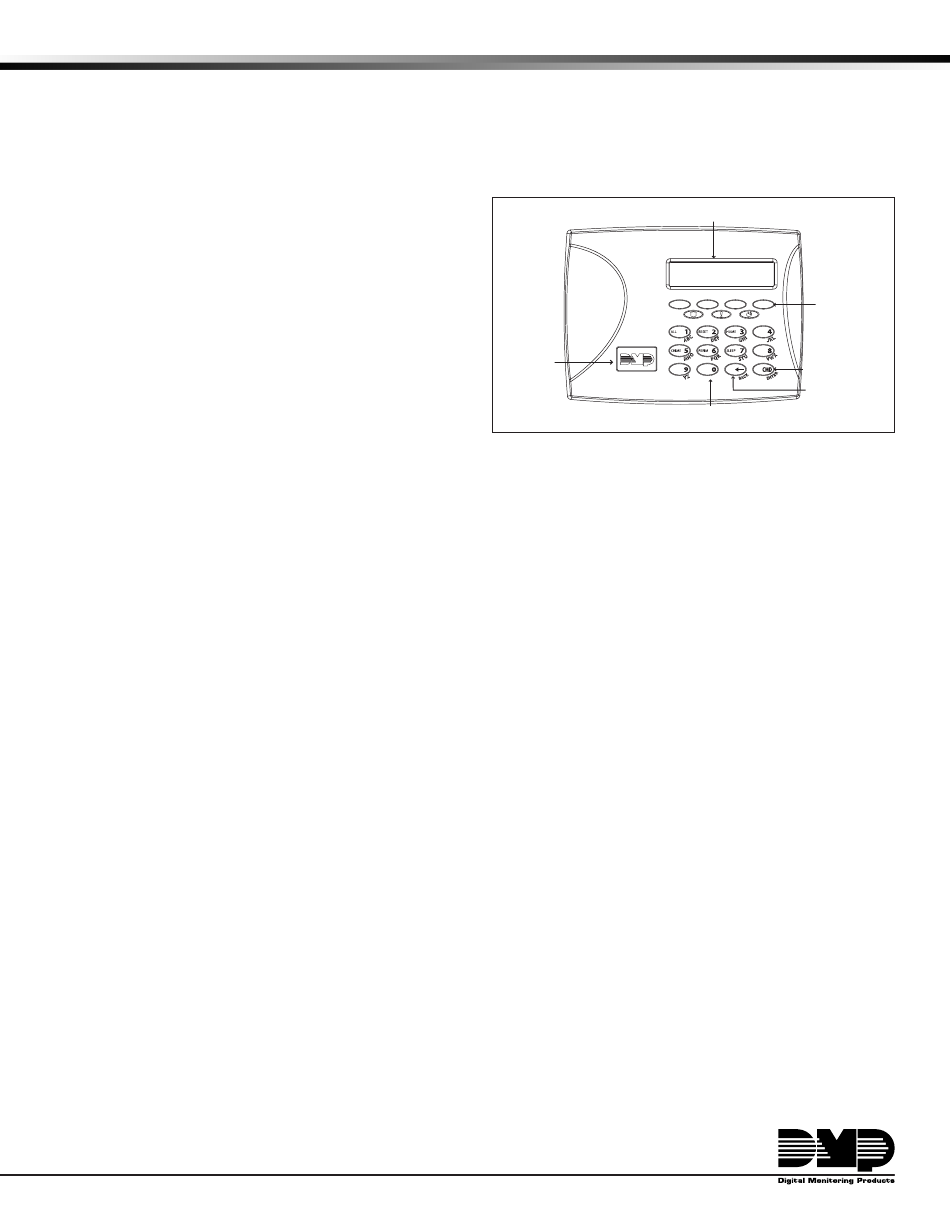

Figure 1: 9000 Series Keypad
Select Keys
COMMAND Key
Back Arrow Key
