  • Page 1 THINLINE AND AQUALITE LCD KEYPAD Installation Guide F R I 2 : 52 PM...
  • Page 2 © 2017 Digital Monitoring Products, Inc. Information furnished is believed to be accurate and reliable. This information is subject to change without notice.
  • Page 3 DESCRIPTION Thinline Series (7060, 7063, 7070, 7073, 7160, 7163, 7170, and 7173) and Aqualite Series (7060A, 7063A, 7070A, and 7073A) LCD keypads offer flexible features and functionality. Each keypad provides: • Custom 16-character home or business name in the display •...

  • Page 4: Install The Keypad

    INSTALL THE KEYPAD All DMP keypad housings are designed to install on any 4” square box, 3-gang switch box, DMP 695 and 696 back-box, or flat surface. Wiring Specifications for Keypad Bus When planning a keypad bus installation, keep in mind the following specifications: •...
  • Page 5 Install the Keypad • Maximum voltage drop between the panel (or auxiliary power supply) and any device is 2.0VDC. If the voltage at any device is less than the required level, add an auxiliary power supply at the end of the circuit. When the voltage is too low, the devices cannot operate properly.

  • Page 6: Remove The Cover

    Install the Keypad Remove the Cover Wall The keypad housing is made up of two parts: the cover, which contains the circuit board and components, and the base. Use the following steps and Figure 1 to separate the keypad cover and Keypad base: Insert a flat screwdriver into one of the slots on the bottom...

  • Page 7: Additional Power Supply

    Install the Keypad Firmly grasp the wires near the base and hold the outside edges of the keypad housing. Line up the red and yellow wires with the guides on the board to inset the connector into the J5 keypad terminal. Observe wire colors when connecting the red, yellow, green, and black wires to the keypad bus.
  • Page 8 Install the Keypad Surface and Backbox Mounting Holes Green/White – Connect Reader Data 0 White – Connect Reader Data 1 ExternalReader/Door Strike Orange – Door Strike N/O 7073/7073A, 7173 Keypads – Gray Door Strike C – Violet Door Strike N/C Yellow/White –...
  • Page 9 USE THE KEYPAD FOR ACCESS CONTROL Card Readers When a proximity credential is presented to an internal or external reader, a beep tone is heard and the Power/Armed LEDs blink. This provides an audible and visual acknowledgment of the credential read. Internal Access Control Reader The 7063/A, 7073/A, 7163, and 7173 keypads provide a built-in proximity card reader that is compatible with most standard 125Khz Prox credentials available...
  • Page 10 Use for Access Control Magnetic Lock and Door Strike Wiring The 7073/A and 7173 keypads provide one internal programmable Form C single pole, double throw (SPDT) relay for controlling door strikes or magnetic locks. Three wires on the 5-wire harness, violet normally closed (N/C), gray common (COM), and orange normally open (N/O), allow you to connect devices to the relay.
  • Page 11 Use for Access Control Wiring the 333 Suppressor One Model 333 Suppressor is included with the 7073/A and 7173 keypads. If the device being controlled by the relay is connected to the N/O and C wires, install the suppressor on the N/O and C wires. If the device is connected to the N/C and C wires, install the 333 on N/C and C wires.
  • Page 12 Use for Access Control Door Strike Relay Operation When the user code sent from the reader is verified by the panel, the keypad door strike relay activates for five seconds. During this time, the access door connected to Zone 2 must be opened to start the programmed entry/exit timer and Zone Bypass if programmed and used.

  • Page 13: Keypad Interface

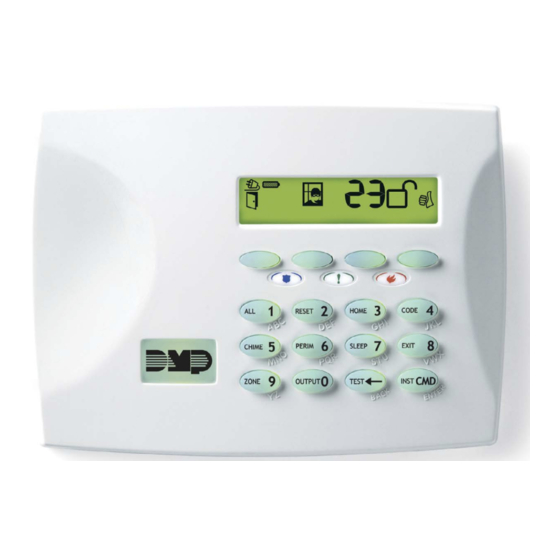

    KEYPAD INTERFACE Thinline and Aqualite LCD keypads offer flexible features and functionality like proximity credential compatibility, panic key options, keypad brightness, tone, and volume level. Programming Cards into the System (7063/A, 7163, 7073/A, and 7173 only) When MENU? NO YES displays, choose YES and present your proximity credential to the reader or manually enter your user code into the keypad.
  • Page 14 Keypad Interface 32-Character Display Power LED JONES RESIDENCE Select Keys F R I 2 : 52 PM Armed LED Panic Keys Backlit Logo and Proximity Back Arrow Command Antenna Figure 6: 7000 Series LCD Keypad...
  • Page 15 Keypad Interface 32-Character Display Power LED ABC SECURITY Select Keys F R I 2 : 52 PM Armed LED Command Back Arrow Figure 7: Thinline 7100 Series LCD Keypad...

  • Page 16: Entering Alpha Characters

    Keypad Interface Entering Alpha Characters To enter an alpha character, press the number key that has the desired letter below it. The keypad display shows the number on that key. To change the number to a letter, press the top Third Letter First Letter row select key that corresponds to the letter...

  • Page 17: Panic Key Options

    Keypad Interface Panic Key Options 2-Button Panic Keys All keypads offer a panic key function that allows users to send panic, emergency, or fire reports to the central station in an emergency. Enable the panic key function in the keypad user menu. Place the supplied icon stickers below the top row select keys.
  • Page 18 ACCESS THE USER OPTIONS MENU To access the Options menu, press and hold the back arrow and CMD keys for two seconds. Press CMD to advance through the menu options. Backlighting Brightness Adjust the LCD display brightness level, power and armed LEDs, the green keyboard, and the logo backlighting.

  • Page 19: Programming Keypad Options

    ACCESS INSTALLER OPTIONS Keypad Options and Keypad Diagnostic menus allow install and service technicians to configure and test keypad operation. To access the installer options: Hold down the back arrow and CMD keys for two seconds. At SET BRIGHTNESS, enter 3577 (INST) and press CMD. The display changes to KPD OPT KPD DIAG and STOP.
  • Page 20 Installer Options Keypad Mode KEYPAD MODE: Configure the KEYPAD MODE for supervised or SUP * UNSUP unsupervised operation. Keypads with programmed zones must be supervised and cannot share an address with other keypads. Unsupervised keypads can operate together sharing the same address. Zones cannot be used on unsupervised keypads.
  • Page 21 Installer Options 7/0 Panic 7/0 PANIC Select YES to configure the 7 and 0 keys as 2-button Panic ENABLE: NO YES keys. To disable the option, select NO. Default is NO. Zone 2 Bypass (7073/A, 7173 only) Select YES to enable the bypass option on Zone 2. This zone ACTIVATE ZONE 2 provides the bypass for door contacts.
  • Page 22 Installer Options Zone 3 Exit (7073/A, 7173) ACTIVATE ZONE 3 Select YES to enable the Request to Exit feature on Zone EXIT: NO YES 3. When Zone 3 shorts, the keypad relay activates. During this time, the user can open the protected door to start the programmed bypass entry/exit timer.

  • Page 23: Card Options

    Installer Options Card Options (7063/A, 7073/A, 7163, 7173) CARD OPTIONS Select DMP to indicate the reader sends a 26-bit DMP data CUSTOM string. To save the DMP option, press the left top row select key under DMP. Default is DMP. Select CUSTOM if using a non-DMP credential by pressing the right top row select key.
  • Page 24 Installer Options Site Code Position (7063/A, 7073/A, 7163, 7173) SITE CODE Enter the site code start position in the data string. Press any POSITION: select key to enter a number between 0-255. Default is 1. Site Code Length (7063/A, 7073/A, 7163, 7173) SITE CODE Enter the number of characters the site code contains.
  • Page 25 Installer Options Site Codes 1-4 (7063/A, 7073/A, 7163, 7173) SITE CODES 1-4 Enter site codes 1-4 (left to right separated by > sign). Press the > > > > select key below the > sign to add, delete, or change the site code and press CMD.

  • Page 26: No Communication With Panel

    Installer Options No Communication with Panel (7063/A, 7073/A, 7163,7173) NO COMM WITH PANEL This option defines the relay action when communication with RELAY ALWAYS OFF the panel has not occurred for five seconds. Press any top row Select key to display CHOOSE ACTION. The default is RELAY ALWAYS OFF.

  • Page 27: Keypad Diagnostics

    KEYPAD DIAGNOSTICS Keypad Diagnostics (KPD DIAG) KPD KPD The Keypad Diagnostic option allows you to check the display OPT DIAG STOP segments, keyboard backlighting and test individual keys. Press the select key under KPD DIAG. The keypad lights all display segments and illuminates the keyboard in red. In approximately one second the display backlighting changes to green.

  • Page 28: Exiting The Installer Options

    Keypad Diagnostics Input Wiegand (7063/A, 7073/A, 7163, 7173) INPUT WIEGAND This option tests the internal and external reader input from proximity credentials. The display shows OKAY each time a good proximity read is received. Exiting the Installer Options When done, press CMD once to return to the Installer Options screen. Press the select key under STOP to exit the Installer Options function.

  • Page 29: End User Training

    END USER TRAINING This section covers 7063/A, 7073/A, 7163, and 7173 keypads and contains three sections: • Keypad Arming and Disarming • Keypad Access Control • Keypad Entry Delay All of the examples displayed assume that CLOSING CODE is YES in panel programming. Figures 11 through 14 show the user presenting a card to the keypad.

  • Page 30: All/Perimeter System Arming And Disarming

    End User Training All/Perimeter System Arming and Disarming Present the card to the reader or press CMD, the keypad displays DISARM? or PERIM ALL (when arming). Press the select key under the desired option. The keypad displays ENTER CODE: -. Present the card to the reader. Once validated by the system, the selected areas arm or disarm automatically.
  • Page 31 End User Training Keypad Access Control Area and All/Perimeter Door Strike From the Status List, present your card to the reader. Once the system validates the card, the Door Strike relay activates. Home/Away systems only activate the 7073/A, and 7173 Door Strike relay when arming and disarming. ABC SECURITY 10:20 AM Typically, the relay activates for 5 seconds during which...

  • Page 32: Keypad Entry Delay

    End User Training Keypad Entry Delay All Systems Once the entry delay starts, the keypad sounds an entry tone and displays ENTER CODE: - . Present your card to the reader. Once validated, the system disarms all areas accessible by you and activates the 7073/7073A/7173 Door Strike relay. Area systems provide a delay to allow selected areas only to be disarmed.

  • Page 34: Fcc Information

    FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made by the user and not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 35: Industry Canada Information

    INDUSTRY CANADA INFORMATION This device complies with Industry Canada Licence-exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.

  • Page 36: Compliance Listing Specifications

    COMPLIANCE LISTING SPECIFICATIONS ULC Commercial Burglary for XR150/XR550 Series Panels The keypad zones cannot be used for ULC listed applications. Specifications Operating Voltage 12VDC Thinline/Aqualite Dimensions 7” W x 5.25” H x 0.5” D Compatibility All keypads are compatible with all DMP panels. Certifications California State Fire Marshall (CSFM) FCC Part 15 RFID Reader FCC ID: CCKPC0086 —...
  • Page 37 Compliance Specifications ULC 5545 Household Fire ULC Subject-C1023 Household Burglar ULC/ORD-C1076 Proprietary Burglar ULC S304 Central Station Burglar Accessories Backboxes 695 or 696 Keypad Backbox 777 protective keypad cover Keypad Wiring Harness 300 4-wire harness 300-5 5-wire harness 300-12 12-wire harness 300-512 12-wire harness, 5 ft.
