IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

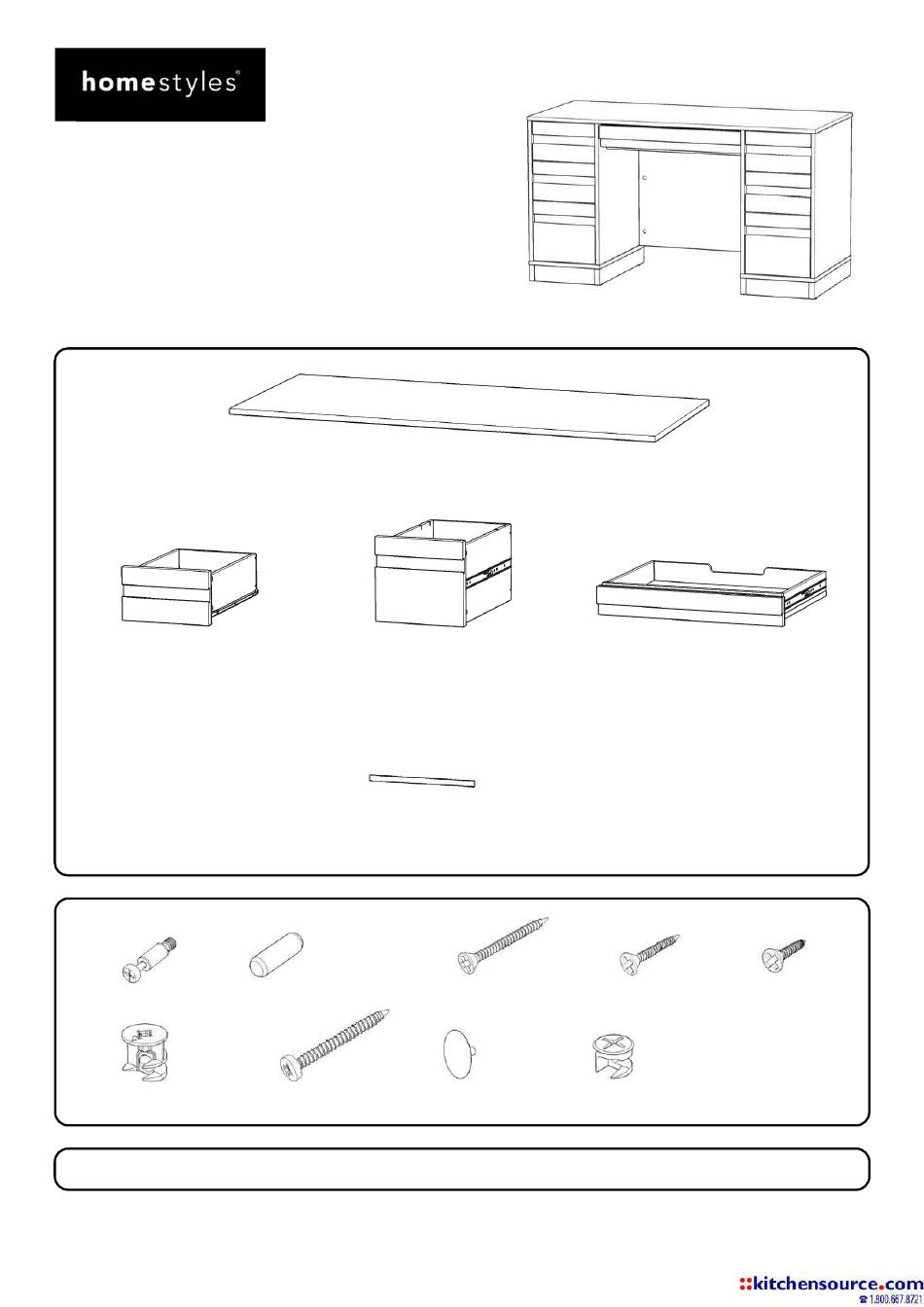

Part List
L.
Drawer
4 pcs.
Hardware List
Cam Lock Screw
76 pcs. (+1 extra)
Cam Lock
52 pcs. (+6 extra)
Carton 20 08000 0182 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 08000 0181
Pedestal Desk
A.
Top
1 pc.
M.
Drawer
2 pcs.
Refer to later page(s) of these instructions
for drawer and keyboard assembly.
O.
Metal Strip
4 pcs.
Dowel
36 pcs. (+1 extra)
M3.5x64
Wood Screw
16 pcs. (+1 extra)
M3.5x38
M3.5x25
Flat Head Screw (long)
Flat Head Screw
20 pcs. (+1 extra)
28 pcs. (+1 extra)
Cover
Cam Lock (small)
4 pcs. (+1 extra)
24 pcs. (+4 extra)
888-680-7460, 877-831-0319
N.
Keyboard
1 pc.
M3.5x16
Flat Head Screw (short)
6 pcs. (+1 extra)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 08000 0181
Summary of Contents for Homestyles 20 08000 0181
- Page 1 52 pcs. (+6 extra) 16 pcs. (+1 extra) 4 pcs. (+1 extra) 24 pcs. (+4 extra) Carton 20 08000 0182 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/10 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Make sure unit is level before tightening these screws. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. Cam Lock Screw STEP 1 Place Top (A), Side Panels (B), (E),...
- Page 3 Assembly Instructions 3/10 STEP 3 Dowel Insert Dowels into pre-drilled holes in Back Panel (J). (See Figure 3) Attach Side Panel (B) and Middle Panel (C) to Back Panel (J) with Cam Locks. Cam Lock STEP 4 Flat Head Screw (long) Figure 3 Insert Dowels into pre-drilled holes in unit.
- Page 4 Assembly Instructions 4/10 STEP 6 Dowel Insert Dowels into pre-drilled holes in Back Panel (J). Attach Middle Panel (D) and Side Panel (E) to Back Panel (J) with Cam Locks. Cam Lock Flat Head Screw (long) STEP 7 Insert Dowels into pre-drilled holes in unit. Attach Base (F) to unit with Flat Head Screws (long).
- Page 5 Assembly Instructions 5/10 Dowel Cam Lock Cover STEP 9 Insert Dowels into pre-drilled holes in unit from Step 5. Attach Rail (G) and Back Panel (K) to unit with Cam Locks. Cover Cam Locks with Covers. (See Figure 5) Figure 5 Dowel Cover Cam Lock...
- Page 6 Assembly Instructions 6/10 Dowel Cam Lock STEP 11 Insert Dowels into pre-drilled holes in unit. Attach Top (A) to unit with Cam Locks. Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 6) Figure 6 Note: Unit must be level to proceed.
- Page 7 Assembly Instructions 7/10 Drawer (L) Cam Lock Screw Cam Lock (small) STEP 12 Insert Cam Lock Screws into pre-drilled holes in Drawer Front (L1), then tighten. Attach Drawer Sides (L3) and (L4) to Drawer Front (L1) with Cam Locks (small). STEP 13 Slide Drawer Bottom (L5) into groove.
- Page 8 Assembly Instructions 8/10 Drawer (M) Cam Lock Screw Cam Lock (small) STEP 15 Insert Cam Lock Screws into pre-drilled holes in Drawer Front (M1), then tighten. Attach Drawer Sides (M3) and (M4) to Drawer Front (M1) with Cam Locks (small). STEP 16 Slide Drawer Bottom (L5) into groove.
- Page 9 Assembly Instructions 9/10 Keyboard (N) Flat Head Screw STEP 19 Attach Keyboard Sides (N3) and (N4) to Keyboard Back (N2) with Flat Head Screws. STEP 20 Attach Keyboard Bottom (N5) to unit with Flat Head Screws (long). Flat Head Screw (long) Flat Head Screw (short) STEP 21 Turn unit over to its’...
- Page 10 Assembly Instructions 10/10 STEP 22 Slide Drawers (L), (M) and Keyboard (N) into position. Note: To remove Drawers (M) and Keyboard (N) in future, push plastic lever on left side up, push plastic lever on right side down and pull open. (See Figures 8 and 9) Left Side Right Side Figure 8...
- Page 11 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
