IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

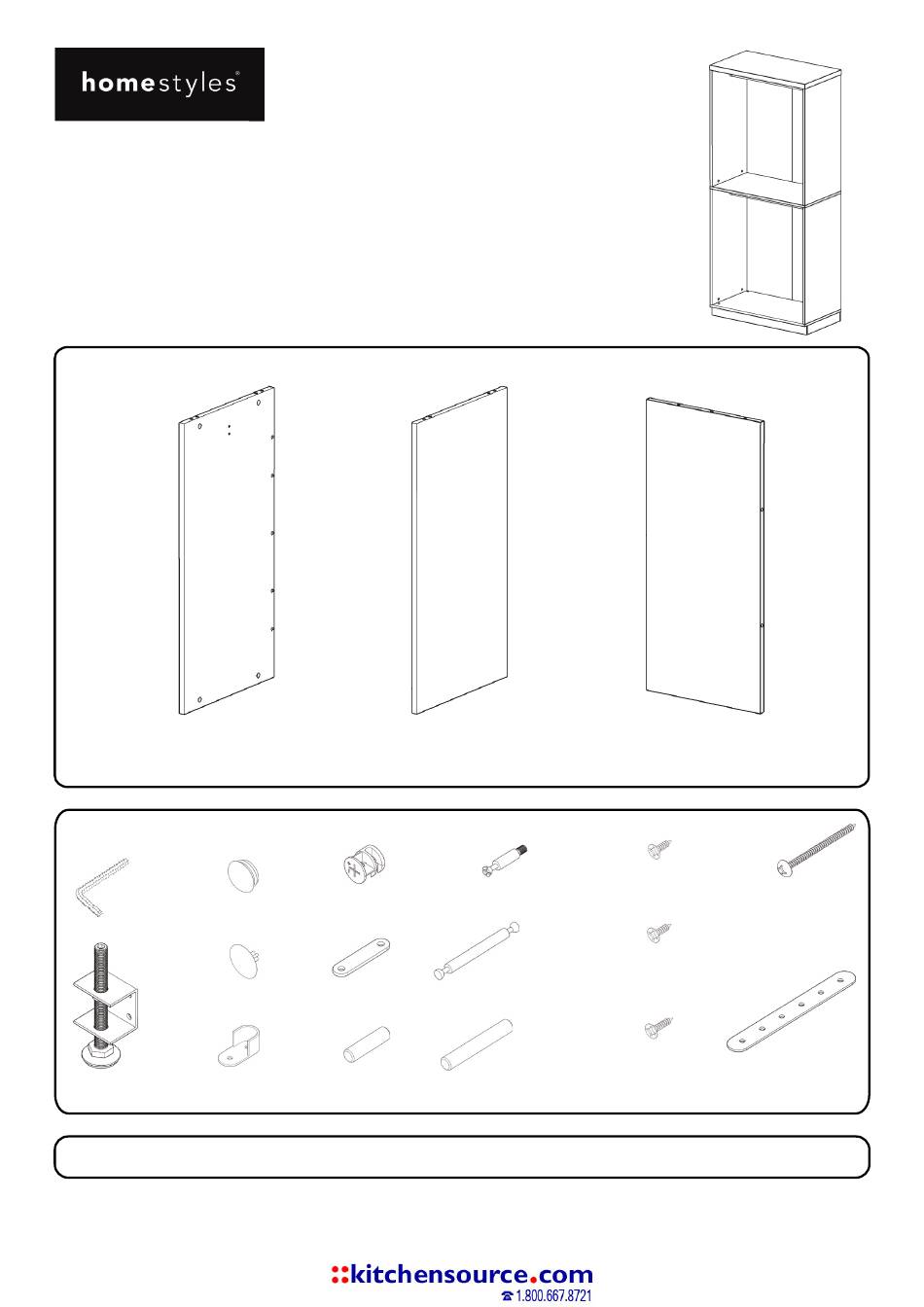

Part List
C.
Side Panel
2 pcs.
Hardware List
Hex Wrench
Plug
1 pc.
4 pcs. (+1 extra)
Plastic Cap
16 pcs. (+1 extra)
Leveler
Rod Support
4 pcs.
4 pcs.
Carton 20 08000 0772 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 08000 0771
Closet Wall Hanging Unit
Cam Lock Screw
Cam Lock
36 pcs. (+2 extra)
52 pcs. (+6 extra)
Cam Lock Screw
(long)
Small Bracket
6 pcs. (+1 extra)
8 pcs. (+1 extra)
Dowel (long)
Dowel
28 pcs. (+1 extra)
6 pcs. (+1 extra)
D.
Side Panel
2 pcs.
M3x16
Wood Screw for
Small Bracket
12 pcs. (+1 extra)
M3 x1
.5
Wood Screw for
Bracket
20 pcs. (+1 extra)
M3 x
.5 19
Wood Screw for
Leveler
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
F.
Back Panel
4 pcs.
M3 x
.5 64
Wood Screw (long)
12 pcs. (+1 extra)
5
Bracket
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles 20 08000 0771
Summary of Contents for Homestyles 20 08000 0771
- Page 1 6 pcs. (+1 extra) 16 pcs. (+1 extra) Carton 20 08000 0772 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/9 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/9 STEP 2 Attach Plinth s (H) to Plinths (I) with Cam Locks. (See Figure 3) Cam Lock Figure 3 Figure 4 Plastic Cap Cam Lock Dowel STEP 3 Attach Side Panel (C) to Back Panel (F) with Dowels and Cam Locks. Attach Side Panel (D) to Back Panel (F) with Dowels and Cam Locks.
- Page 4 Assembly Instructions 4/9 Wood Screw (long) STEP 4 Attach unit from Step 2 to unit from Step 3 with Dowels and Wood Screws (long) into pre-drilled holes. Dowel Leveler Wood Screw for Leveler STEP 5 Attach Levelers to bottom of unit with Wood Screws for Leveler into pre-drilled holes (See Figure 5) Figure 5...
- Page 5 Assembly Instructions 5/9 STEP 6 Attach Small Brackets to unit with Wood Screws for Small Bracket into pre-drilled holes. (See Figure 6) Figure 6 Wood Screw for Small Bracket Small Bracket Plastic Cap Cam Lock Cam Lock Screw (long) Dowel (long) STEP 7 Turn unit over to its’...
- Page 6 Assembly Instructions 6/9 Plastic Cap Cam Lock Dowel STEP 8 Attach Side Panel (C) to Back Panel (F) with Dowels and Cam Locks. Attach Side Panel (D) to Back Panel (F) with Dowels and Cam Locks. Attach unit to unit with Dowels. Attach Top (A) to unit with Dowels and Cam Locks.
- Page 7 Assembly Instructions 7/9 STEP 10 Attach top unit to base unit with Cam Locks. Cover Cam Locks with Plastic Caps. Cam Lock Plastic Cap Plug STEP 11 Place unit at desired location. Figure 7 Note: If assembling multiple Closet Wall Units together, place all units at desired location.
-
Page 8: Hardware List
Assembly Instructions 8/9 IMPORTANT To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 12 Place unit at desired location. Anchor in wall Bracket Wall Screw Pre-drilled hole Drill a 3/8” hole in wall in-line with at top of unit on wall the pre-drilled hole at top of unit. - Page 9 Assembly Instructions 9/9 Wood Screw for Bracket Bracket Figure 11 STEP 13 Note: If assembling multiple Closet Wall Units together, complete Step 13. Attach tops of units together with Brackets and Wood Screws for Bracket into pre-drilled holes. (See Figure 11) Return to and complete Step 12.
- Page 10 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
