IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
E.
Side Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 08000 0080

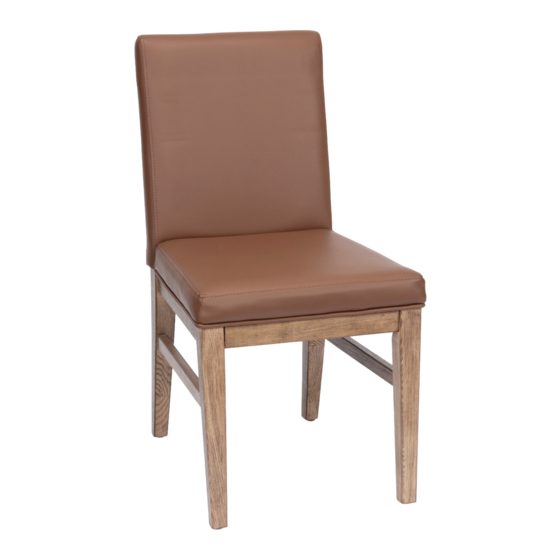

Chair
B.
Leg
1 pc.
F.
Side Stretcher
1 pc.
M3x38
Wood Screw
4 pcs. (+1 extra)
M8x82
Head Cap Bolt (long)
2 pcs. (+1 extra)
C.
Leg
1 pc.
D.
Back Frame
1 pc.
M8x38
Head Cap Bolt (short)
3 pcs. (+1 extra)
M8x51
Head Cap Bolt
4 pcs. (+1 extra)
888-680-7460, 877-831-0319
Flat Washer
9 pcs.(+1 extra)
Spring Washer
9 pcs.(+1 extra)
Advertisement
Table of Contents
Related Manuals for Homestyles 20 08000 0080
Summary of Contents for Homestyles 20 08000 0080
- Page 1 M8x51 Small Hex Wrench Head Cap Bolt (long) Head Cap Bolt Spring Washer 1 pc. 2 pcs. (+1 extra) 4 pcs. (+1 extra) 9 pcs.(+1 extra) Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ Keep Hex Wrench as the bolts may need to be tightened in the future.
- Page 3 Assembly Instructions 3/3 Wood Screw Flat Washer Spring Washer Head Cap Bolt (long) STEP 2 Flat Washer Spring Washer Attach Back Frame (D) to unit with Flat Washers, Head Cap Bolt (short) Spring Washers, Head Cap Bolt (short), Head Cap Bolts (long), tightening bolts only halfway. (See Figures 3 and 4) Tighten all Head Cap Bolts used in Steps 1 and 2.
- Page 4 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
