Homestyles 20 08000 0751 Assembly Instructions Manual

Closet wall drawer unit
Hide thumbs

Advertisement

Quick Links

Download this manual

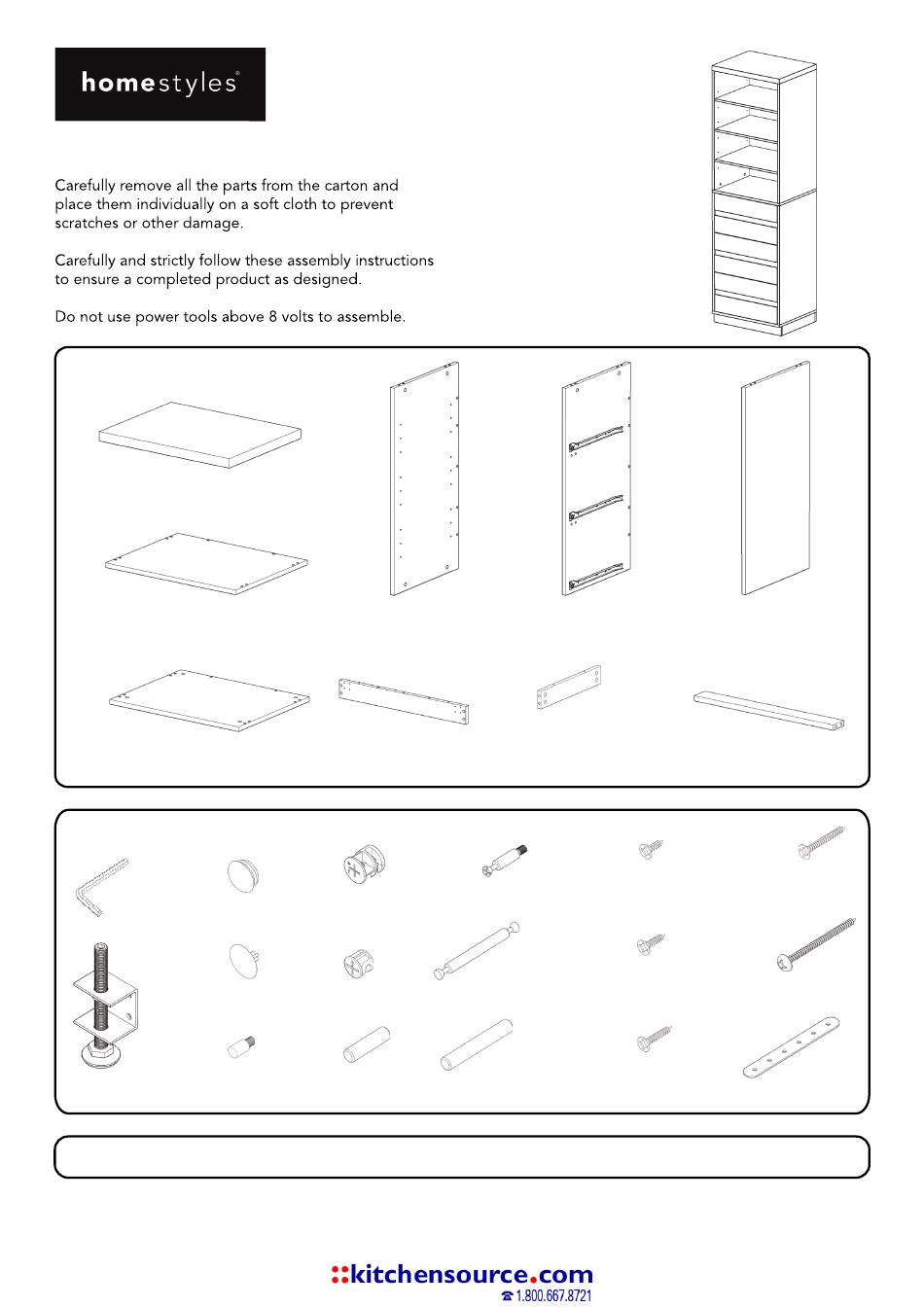

IMPORTANT
Part List
A.
Top
1 pc.
B.
Middle Panel
1 pc.
G.
Bottom
1 pc.
Hardware List
Hex Wrench
Plug
1 pc.
4 pcs. (+1 extra)
Plastic Cap
8 pcs. (+1 extra)
Leveler
Adjustable Pin
4 pcs.
12 pcs. (+1 extra)
Carton 20 08000 0752 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
20 08000 0751
Closet Wall Drawer Unit
C.
Side Panel
2 pcs.
H.
Plinth
2 pcs.
Cam Lock Screw
Cam Lock
50 pcs. (+2 extra)
44 pcs. (+6 extra)
Cam Lock Screw
(long)
Cam Lock (small)
18 pcs. (+2 extra)
6 pcs. (+1 extra)
Dowel (long)
Dowel
24 pcs. (+1 extra)
4 pcs. (+1 extra)
D.
Side Panel
1 pc.
I.
Plinth
2 pcs.
M3 x1
.5
5
Wood Screw for
Bracket
12 pcs. (+1 extra)
M3 x
.5 19
Wood Screw for
Leveler
16 pcs. (+1 extra)
M3 x
.5 25
Wood Screw
15 pcs. (+1 extra)
E.
Side Panel
1 pc.
J.
Front Rail
2 pcs.
M3 x
.5 38
Wood Screw for
Bottom
4 pcs. (+1 extra)
M3 x
.5 64
Wood Screw (long)
10 pcs. (+1 extra)
Bracket
2 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20 08000 0751 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Homestyles 20 08000 0751

Summary of Contents for Homestyles 20 08000 0751

  • Page 1 20 08000 0751 Closet Wall Drawer Unit IMPORTANT Part List 1 pc. Side Panel Side Panel Side Panel Middle Panel 2 pcs. 1 pc. 1 pc. 1 pc. Bottom Plinth Plinth Front Rail 1 pc. 2 pcs. 2 pcs. 2 pcs.
  • Page 2 Assembly Instructions 2/9 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/9 Cam Lock STEP 2 Attach Plinth s (H) to Plinths (I) with Cam Locks. (See Figure 2) Figure 2 Wood Screw for Bottom Cam Lock Dowel STEP 3 Attach Side Panels (D) and (E) to Back Panel (F) and Front Rails (J) with Dowels and Cam Locks.
  • Page 4 Assembly Instructions 4/9 Wood Screw (long) STEP 4 Attach unit from Step 2 to unit from Step 3 with Dowels and Wood Screws (long) into pre-drilled holes. Dowel Leveler Wood Screw for Leveler STEP 5 Attach Levelers to bottom of unit with Wood Screws for Leveler into pre-drilled holes (See Figure 3) Figure 3...
  • Page 5 Assembly Instructions 5/9 Cam Lock Screw (long) STEP 6 Dowel (long) Cam Lock Turn unit over to it’s upright position. Attach Middle Panel (B) to unit with Dowels (long), Cam Lock Screws (long) and Cam Locks. Figure 4 Dowel Cam Lock Plastic Cap STEP 7 Attach Side Panels (C)

  • Page 6: Part List

    Assembly Instructions 6/9 Drawer (L) Wood Screw STEP 8 Attach Drawer Sides (L3) and (L4) to Drawer Back (L2) with Wood Screws. STEP 9 Wood Screw Slide Drawer Bottom (L5) into grooves in Drawer Sides (L3) and (L4) until it meets Drawer Back (L2).
  • Page 7 Assembly Instructions 7/9 STEP 11 Attach top unit to base unit with Cam Locks. Cover Cam Locks with Plastic Caps. Adjustable Pin Cam Lock Plastic Cap Plug STEP 12 Place unit at desired location. Note: If assembling multiple Closet Wall Units together, place all units at desired location.

  • Page 8: Hardware List

    Assembly Instructions 8/9 IMPORTANT To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 13 Place unit at desired location. Anchor in wall Bracket Wall Screw Pre-drilled hole Drill a 3/8” hole in wall in-line with at top of unit on wall 3/8”...
  • Page 9 Assembly Instructions 9/9 Wood Screw for Bracket Bracket Figure 8 STEP 14 Note: If assembling multiple Closet Wall Units together, complete Step 14. Attach tops of units together with Brackets and Wood Screws for Bracket into pre-drilled holes. (See Figure 8) Return to and complete Step 13.
  • Page 10 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
