IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

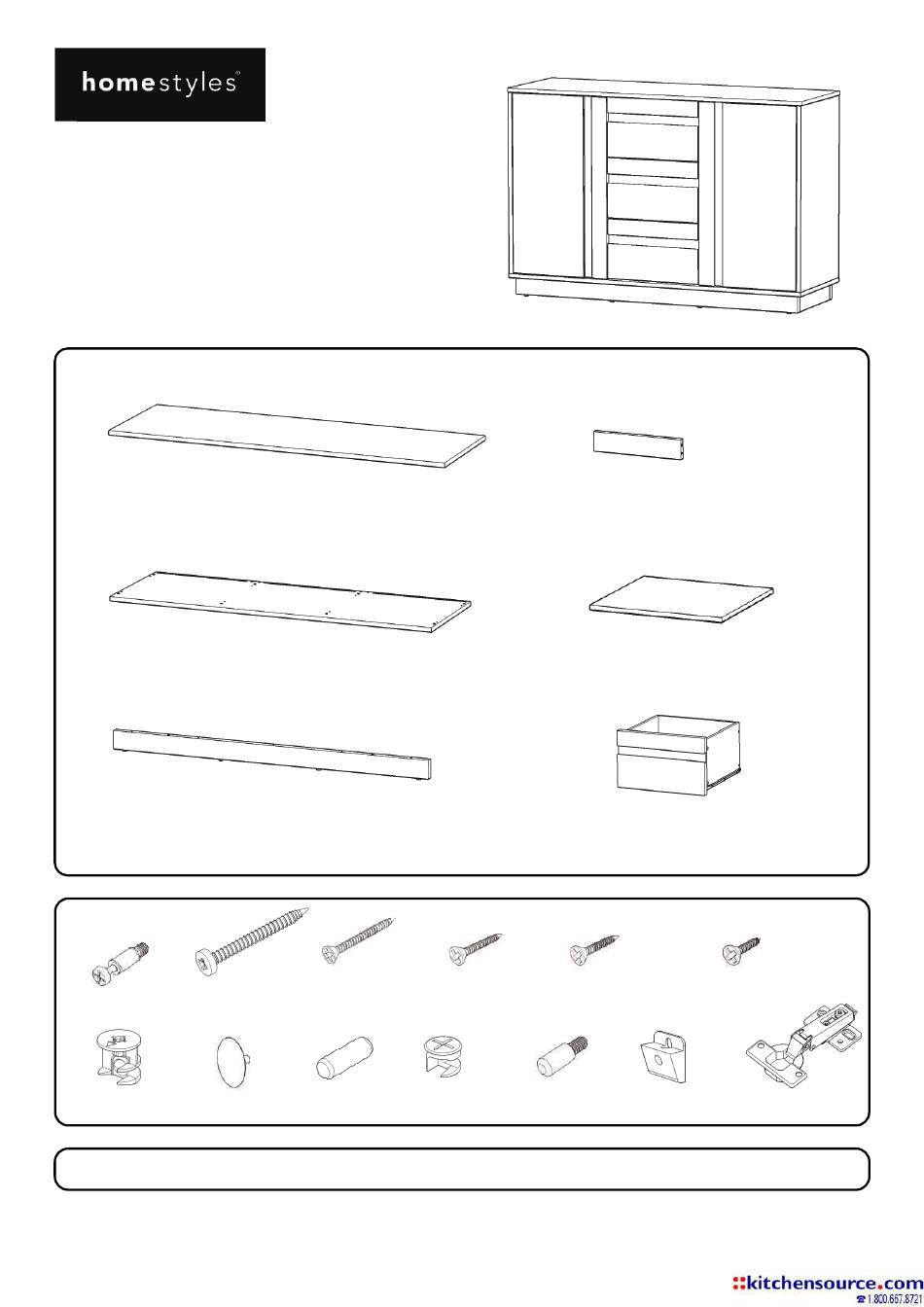

Part List
Hardware List
M3.5x64
Wood Screw
Cam Lock Screw
14 pcs. (+1 extra)
46 pcs. (+1 extra)
Cam Lock
Cover
4 pcs. (+1 extra)
28 pcs. (+4 extra)
Carton 20 08000 0612 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 08000 0611
Buffet
A.
Top
1 pc.
B.
Base
1 pc.
C.
Plinth
2 pcs.
M3.5x25
M3.5x38
Flat Head Screw (long)
Flat Head Screw
15 pcs. (+1 extra)
14 pcs. (+1 extra)
Dowel
Cam Lock (small)
28 pcs. (+1 extra)
18 pcs. (+2 extra)
D.
Plinth
2 pcs.
E.
Shelf
4 pcs.
N.
Drawer
Refer to later page(s) of these
3 pcs.
instructions for drawer assembly.
M3x20
M3.5x14
Flat Head Screw (short)
Wood Screw for Hinge
16 pcs. (+1 extra)
36 pcs. (+1 extra)
Adjustable Pin
Plastic Clip
16 pcs. (+1 extra)
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
Hinge
6 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20 08000 0611 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Homestyles 20 08000 0611

  • Page 1 16 pcs. (+1 extra) 6 pcs. 28 pcs. (+4 extra) Carton 20 08000 0612 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/9 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the screws until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/9 STEP 2 Dowel Flat Head Screw (long) Insert Dowels into pre-drilled holes in Uprights (K). (See Figure 2) Attach Uprights (K) to Middle Panels (H) and (I) with Flat Head Screws (long). (See Figure 3) Figure 2 Figure 3 STEP 3 Dowel...
  • Page 4 Assembly Instructions 4/9 STEP 4 Place Top (A) upside down on a soft cloth. Insert Dowels into pre-drilled holes in Top (A). Attach unit to Top (A) with Cam Locks. Dowel STEP 5 Slide Back Panels (L) into position. STEP 6 Insert Dowels into pre-drilled holes in unit.
  • Page 5 Assembly Instructions 5/9 STEP 7 Flat Head Screw (long) Dowel Insert Dowels into pre-drilled holes in unit. Attach Base (B) to unit with Cam Locks and Flat Head Screws (long). (See Figure 6) Figure 6 Cam Lock Cam Lock STEP 8 Attach Plinths (C) to Plinths (D) with Cam Locks.
  • Page 6 Assembly Instructions 6/9 STEP 10 Wood Screw for Hinge Hinge Place Doors (M) face down on a soft cloth. Attach Hinges to Doors (M) with Wood Screws for Hinge into pre-drilled holes, then tighten. (See Figure 7) Figure 7 Wood Screw for Hinge Adjustable Pin STEP 11 Turn unit from Step 9 over to its’...
  • Page 7: Part List

    Assembly Instructions 7/9 Drawer (N) Cam Lock Screw Cam Lock (small) STEP 12 Insert Cam Lock Screws into pre-drilled holes in Drawer Front (N1), then tighten. Attach Drawer Sides (N3) and (N4) to Drawer Front (N1) with Cam Locks (small). Cam Lock (small) STEP 13 Slide Drawer Bottom (N5) into groove.
  • Page 8 Assembly Instructions 8/9 STEP 15 Level unit by adjusting the adjustable levelers on bottom of unit. (See Figure 10) Note: Unit must be level to proceed. Slide Drawers (N) into position. STEP 16 Attach Plastic Clips to unit Figure 10 with Flat Head Screws (short).
  • Page 9: Hardware List

    Assembly Instructions 9/9 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraints must be installed following these instructions exactly. STEP 18 Pre-drilled hole Anchor in wall Bracket Wall Screw Place unit at desired location. on wall at top of unit 3/8”...
  • Page 10 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
