IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

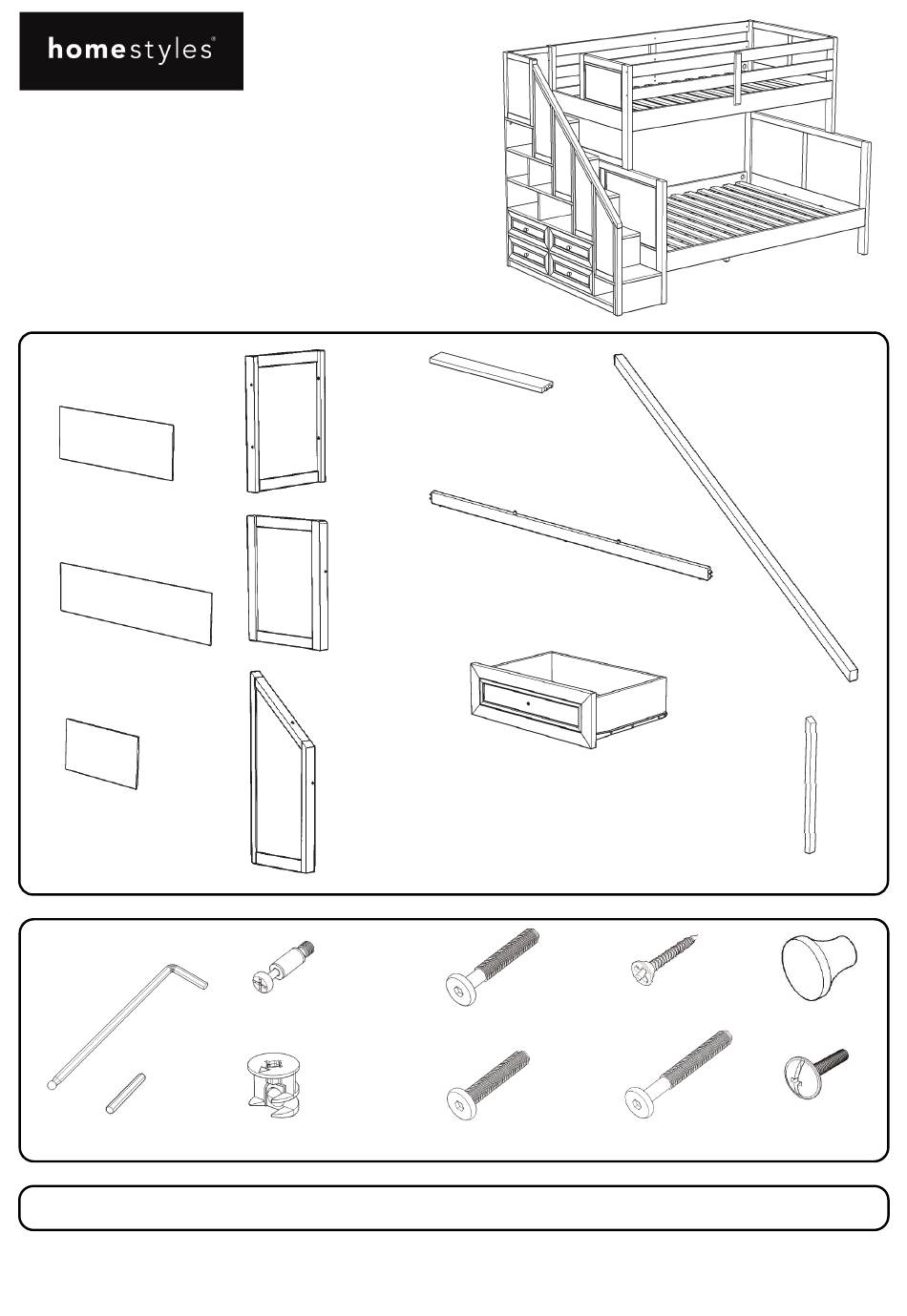

Part List
S2.
Back Panel
1 pc.
S3.
Back Panel
1 pc.
S5.
Back Panel
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Carton 20 05530 0564 is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 05530 0565

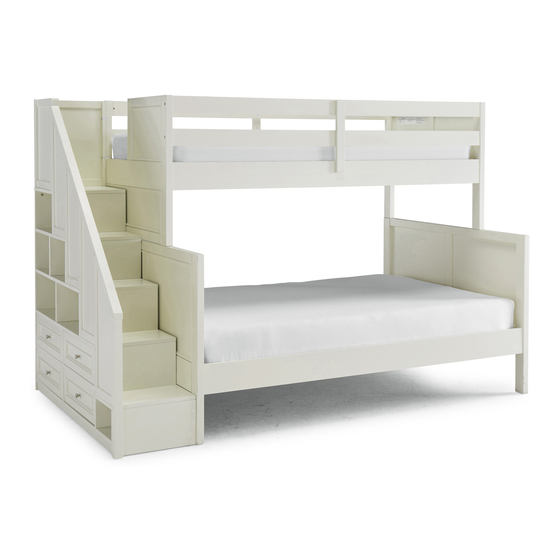

Bunk Bed
T1.
Stair Panel
1 pc.
T2.
Stair Panel
1 pc.
T3.
Stair Panel
4 pcs.
Cam Lock Screw
32 pcs. (+1 extra)
Cam Lock
32 pcs. (+4 extra)
U1.
Rail
2 pcs.
U2.
Rail
2 pcs.
X.
Drawer
4 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
M6x45
Head Cap Bolt for Bed
3 pcs. (+1 extra)
M6x30
Head Cap Bolt (short)
21 pcs. (+1 extra)
888-680-7460, 877-831-0319
W.
Upright
1 pc.
M6x25
Wood Screw for Drawer
32 pcs. (+1 extra)
M6x55
Head Cap Bolt (medium)
1 pcs. (+1 extra)
V.
Stair Rail
1 pc.
Knob (22mm)
4 pcs.
M4x1"
Machine Screw
4 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 20 05530 0565 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Homestyles 20 05530 0565

Summary of Contents for Homestyles 20 05530 0565

  • Page 1 Machine Screw 4 pcs. 1 pc. 32 pcs. (+4 extra) 21 pcs. (+1 extra) 1 pcs. (+1 extra) Carton 20 05530 0564 is also needed for assembly. Tool(s) required for assembly: Phillips screwdriver Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/10 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
  • Page 3 Assembly Instructions 3/10 STEP 12 Attach Base (N) to Side Panel (O) with Cam Locks. (See Figure 7) Note: A Philips screwdriver 5” or less in length is recommended. Cam Lock Figure 7 STEP 13 Attach Rail (U1) and Middle Panel (R) to unit. Cam Lock STEP 14 Attach Rail (U1) to unit.
  • Page 4 Assembly Instructions 4/10 STEP 15 Cam Lock Attach Stair (M5) to Riser (P3) with Cam Locks. Cam Lock STEP 16 Attach Rails (U2) to unit from Step 14. Slide Back Panel (S5) into position. Attach unit from Step 15 to unit with Cam Locks. Cam Lock STEP 17 Turn unit to its’...
  • Page 5 Assembly Instructions 5/10 Cam Lock STEP 18 Attach Riser (P1) and Divider (Q) to unit with Cam Locks. Cam Lock STEP 19 Slide Back Panel (S3) into position. Attach Stair (M3) to unit with Cam Locks. Cam Lock STEP 20 Attach Riser (P1) and Divider (Q) to unit with Cam Locks.
  • Page 6 Assembly Instructions 6/10 Cam Lock STEP 21 Slide Back Panel (S2) into position. Attach Stair (M2) to unit with Cam Locks. Cam Lock STEP 22 Attach Riser (P1) to unit with Cam Locks. Cam Lock STEP 23 Slide Back Panel (S1) into position. Attach Stair (M1) to unit with Cam Locks.
  • Page 7 Assembly Instructions 7/10 STEP 24 Assemble Stair Panels (T3), Stair Rail (V) and Upright (W) with Head Cap Bolts (short), tightening bolts only halfway. Figure 8 Head Cap Bolt (short) STEP 25 Attach unit from Step 24 and Stair Panel (T2) to unit from Step 23 with Head Cap Bolts (short), tightening bolts only halfway.

  • Page 8: Part List

    Assembly Instructions 8/10 Drawer (X) Wood Screw for Drawer STEP 27 Attach Drawer Front (X1) and Drawer Back (X2) to Drawer Side (X3) with Wood Screws for Drawer. Roller at back Wood Screw for Drawer STEP 28 Slide Drawer Bottom (X5) into grooves in unit. Attach Drawer Side (X4) to unit with Wood Screws for Drawer.
  • Page 9 Assembly Instructions 9/10 Head Cap Bolt for Bed Head Cap Bolt (short) STEP 30 Attach unit from Step 24 to bunk bed unit with Head Cap Bolts for Bed and Head Cap Bolt (short), tightening bolts only halfway. Tighten all bolts. Slide Drawers (X) into position.
  • Page 10 Assembly Instructions 10/10 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 31 Place unit at desired location. Anchor in wall Wall Screw Pre-drilled hole on Bracket on wall back of Stair Panel (T1)

  • Page 11: Safety Warnings

    Use only mattress which is 74” – 75” long and 52 1/2“– 53 1/2" wide on lower bunk. Use only mattress which is 10” or less thick on upper bunk. Replacement parts, including additional guardrails may be obtained from Home Styles Customer Service at www.homestyles-furniture.com. Safety Warnings Follow the information on the warnings appearing on the upper bunk end structure and on the carton.

  • Page 12: Avertissements De Sécurité

    Utilisez uniquement des matelas qui est de 10" ou moins épais sur la couchette. Pièces de remplacement, y compris garde-corps supplémentaires peuvent être obtenus à partir de Home Styles service à la clientèle au www.homestyles-furniture.com. Avertissements de Sécurité Suivez les informations sur les mises en garde figurant sur la partie supérieure de la structure d'extrémité...
  • Page 13 Home Styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged hardware or parts may be requested at: www.homestyles-furniture.com/customer-service/replacement-parts Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
