IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
C.
Stretcher
2 pcs.
D.
Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
The concrete top is made of natural stone materials with naturally occurring
fissures and cavities. A sealer has been applied to the concrete to reduce the
absorption of liquids. Even with sealer applied, liquids can absorb into the
concrete causing permanent stains. Never allow liquids to remain on the top.
Tool(s) required for assembly: Level
20 08100 0021

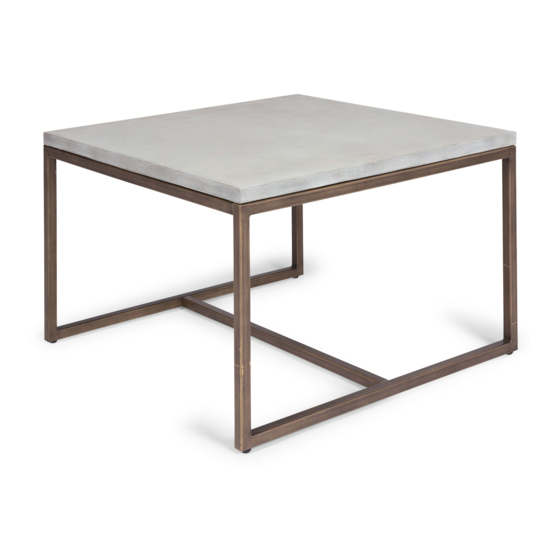

Coffee Table
Small Hex Wrench
1 pc.
Care Instructions
Flat Washer
4 pcs. (+1 extra)
B.
Side Frame
2 pcs.
M6x15
Head Cap Bolt
16 pcs. (+1 extra)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Homestyles Geometric HS-8100-21
Summary of Contents for Homestyles Geometric HS-8100-21
- Page 1 20 08100 0021 Coffee Table IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 2 Assembly Instructions 2/3 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/3 STEP 2 Place Top (A) upside down Head Cap Bolt on a soft cloth. Flat Washer Attach unit to Top (A) with Flat Washers and Head Cap Bolts, tightening bolts only halfway. Tighten all Head Cap Bolts, used in Steps 1 and 2.
- Page 4 CARE INSTRUCTIONS NEVER NEVER use glass cleaners on allow liquids to remain on furniture. finished furniture. Ammonia Absorption causes parts to warp chemically attacks the finish. and split and finishes to delaminate. Do not use power tools Do not place Do not write above 8 volts to assemble.
